Ensure correct wire placement by matching each conductor to its designated terminal: black for hot, white for neutral, and green for ground. Using the proper sequence prevents short circuits and equipment damage.

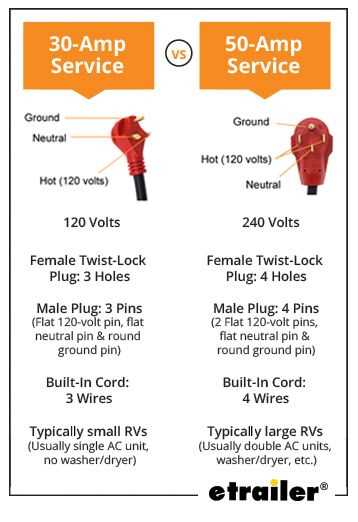

Check the voltage rating of your receptacle and cable before connecting. A standard 30 amp recreational vehicle line carries 120 volts and requires a three-prong configuration to maintain a stable power supply.
Tighten all screws securely to avoid loose contacts that can cause overheating. Hand-tightening followed by a gentle torque check ensures a safe and reliable connection.
Label each wire with tape or color-coded markers during installation. This helps identify circuits during maintenance or troubleshooting and reduces the risk of incorrect connections.
Test continuity and polarity with a multimeter after completing the setup. Confirming proper current flow and correct grounding prevents hazards before plugging in your RV.
30 Amp RV Connection Setup
Match each conductor to the correct terminal by following color codes: black or red for live, white for neutral, and green or bare for ground. Incorrect placement can result in blown fuses or equipment failure.
Use a flexible, outdoor-rated cable with sufficient thickness to handle continuous current. A 10-gauge wire is standard for a 30-amp recreational vehicle line, ensuring minimal voltage drop over distances up to 25 feet.
Securing and Inspecting Contacts
Tighten screws and clamps firmly without over-torquing. Loose connections can cause overheating, while excessive force may damage the terminals, leading to intermittent power or sparks.
Testing the Connection
Measure voltage and check continuity before applying load. Confirm that live and neutral are properly aligned and that the grounding conductor maintains uninterrupted contact to prevent shock hazards and maintain stable operation of onboard appliances.

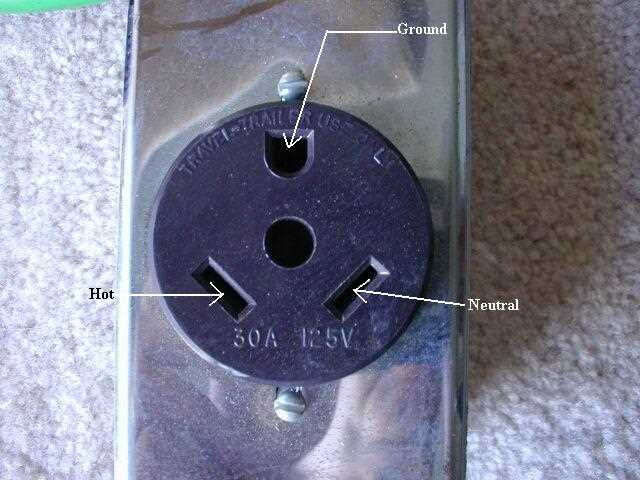

Identifying Conductors and Terminal Connections for a 30 Amp RV Setup
Match each wire to its corresponding terminal by following color standards: black for the hot line, white for neutral, and green or bare copper for grounding. Ensuring accurate placement prevents shorts and maintains safe current flow.
Checking Wire Labels and Markings
Confirm all cables are clearly marked and free of damage. Look for embossed numbers or color-coded insulation to quickly identify live, neutral, and ground conductors, which reduces mistakes during installation or maintenance.
Verifying Terminal Connections
Inspect each terminal for corrosion or looseness before attaching wires. Tighten screws to manufacturer specifications and make sure clamps hold the conductor firmly without cutting or nicking the insulation, securing a stable and reliable electrical path.
