Check the pin configuration on your connection plug before attaching the unit to your vehicle. Most units use a 4-pin or 7-pin setup, where each pin controls specific functions such as brake lights, turn indicators, and ground. Verifying pin layout prevents short circuits and blown fuses.
Use color-coded cables to match the vehicle’s output to the attachment’s input. Standard colors include white for ground, brown for tail lights, yellow for left turn, green for right turn, and blue for electric brakes. Proper alignment reduces the risk of misconnection and ensures all signals operate correctly.
Secure connections with corrosion-resistant terminals and shielded connectors. Exposure to moisture or dirt can cause voltage drops and intermittent failures. Applying dielectric grease on contacts extends the lifespan of connectors and maintains consistent electrical flow.
Test each circuit individually with a multimeter or a dedicated circuit tester before hitting the road. Verify that brake lights illuminate, turn signals blink correctly, and auxiliary circuits carry the intended current. This step identifies faults early and avoids roadside hazards.
Follow manufacturer specifications for maximum amperage and fuse ratings. Overloading circuits can damage the vehicle’s electrical system or the attached unit. Keep a spare set of fuses and extra wiring for emergency repairs during long trips.
Step by Step Electrical Connections for Towing Units

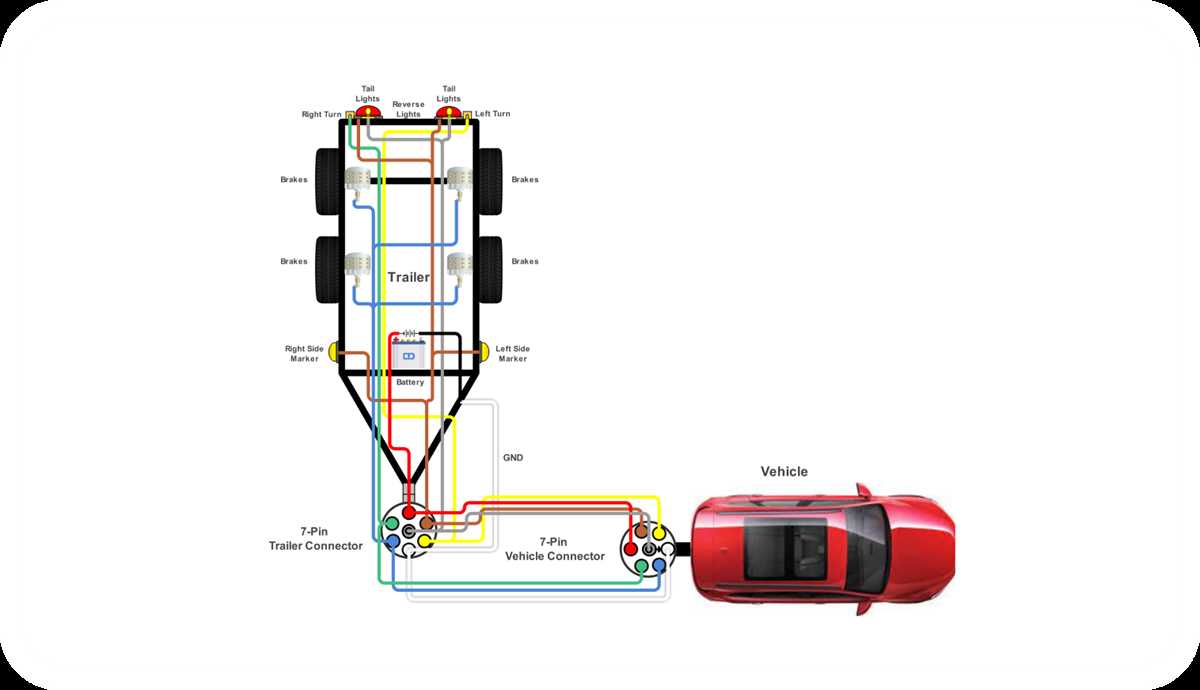

Identify the connector type before linking the unit to your vehicle. Most setups use either a 4-pin or 7-pin round plug. Each pin corresponds to specific functions such as left turn signal, right turn signal, brake lights, tail lights, and electric brake activation.
Match cable colors carefully to avoid short circuits. Standard color codes include:
- White for grounding
- Brown for tail lights
- Green for right turn signal
- Yellow for left turn signal
- Blue for brake controller feed
Use corrosion-resistant connectors to prevent intermittent failures. Apply dielectric grease to contacts to maintain stable electrical flow, especially in humid or wet conditions.
Route cables along secure paths to prevent chafing and accidental disconnections. Avoid sharp bends and high-heat areas near the engine or exhaust. Fasten lines with clamps or cable ties to maintain tension-free runs.
Test each circuit individually before driving. Use a multimeter or circuit tester to ensure all lights, turn signals, and brake feeds respond correctly. Identify faults early to reduce the risk of roadside issues.
Follow current ratings for each line. Overloaded circuits can melt insulation or blow fuses. Keep spares for fuses, terminals, and cables for emergency repairs during long trips.
Document the connection layout with a simple reference chart for future maintenance. Record pin assignments and color codes for each connection point. This reduces troubleshooting time and ensures consistent setup every time you attach the unit.

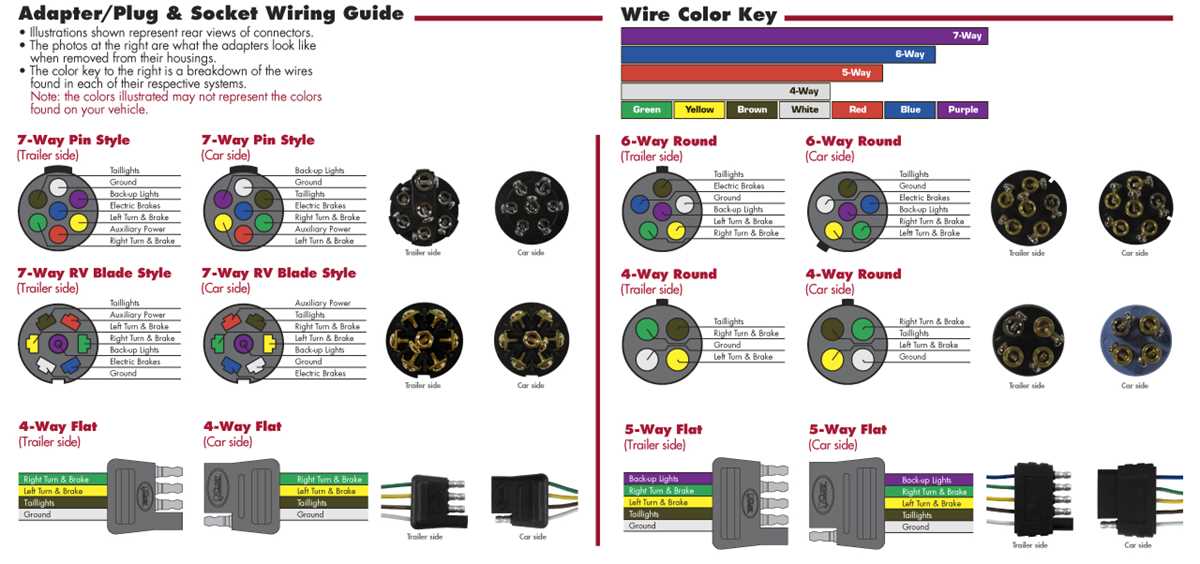

Identifying Connector Types and Pin Functions
Check the connector shape and pin count before linking your unit. Most common setups are 4-pin flat, 5-pin round, or 7-pin round plugs. Each configuration controls specific circuits: tail lights, brake lights, left and right indicators, reverse lights, and electric brake feed. Confirming the type prevents misconnection and protects fuses from damage.
Understanding Pin Assignments

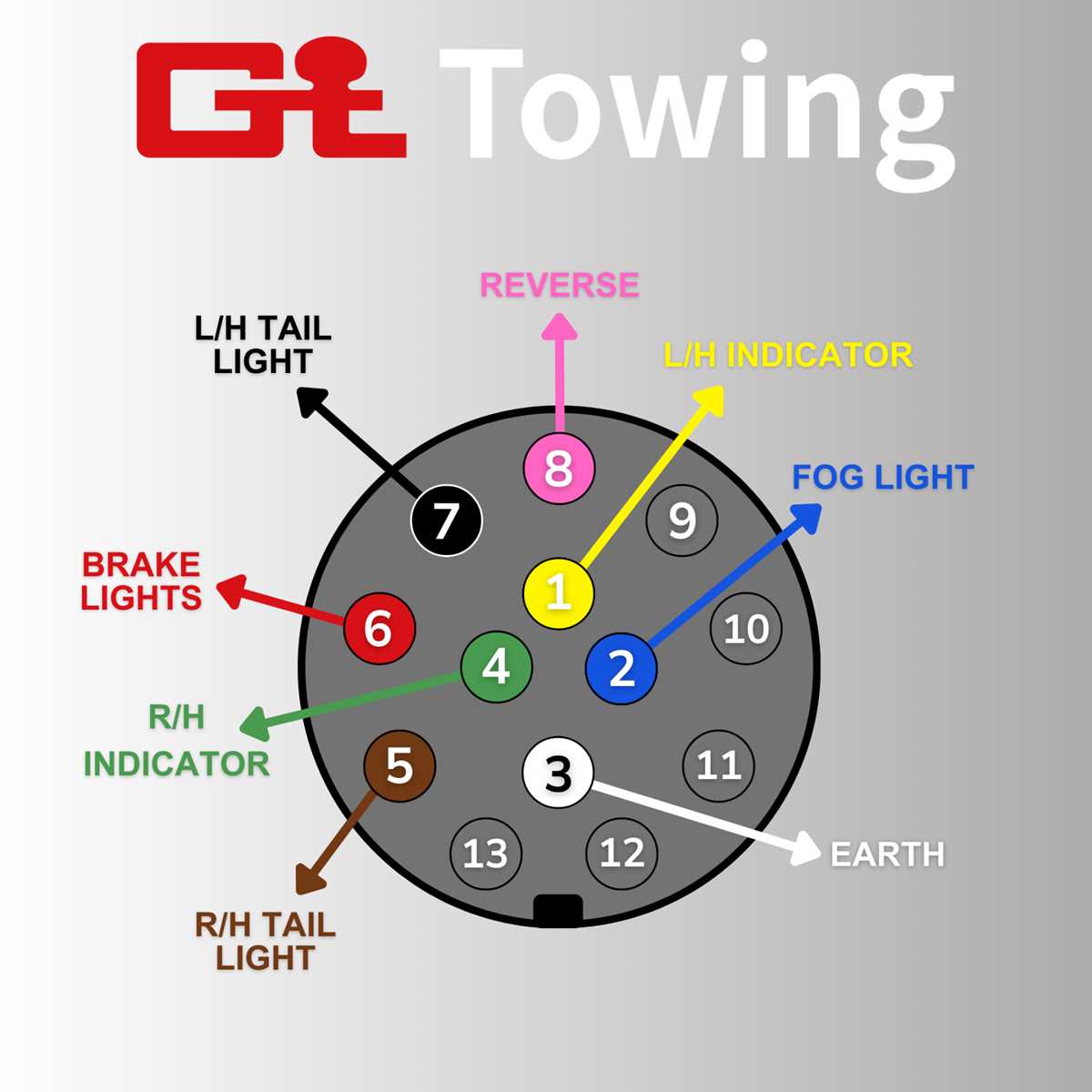

Follow standard color coding for each pin to ensure correct function. White wires typically connect to ground, brown to tail lamps, green to right indicators, yellow to left indicators, blue to electric brakes, and red or black for auxiliary circuits. Documenting assignments on a reference chart avoids errors during repeated connections.
Inspect pins and contacts for corrosion, bent terminals, or loose connections. Clean contacts with a suitable electrical cleaner and secure pins firmly in the socket. Proper maintenance ensures consistent operation of lights, signals, and braking circuits, reducing the risk of faults during transport.
