Connect the hot supply cable to the line terminals on the protective outlet first, ensuring secure contact and correct polarity. Tighten screws to manufacturer torque specifications to prevent loose connections and potential tripping.
Attach the load side to the downstream receptacles if additional outlets are being protected. Maintain proper separation of neutral and ground conductors to avoid false tripping or interference with the safety mechanism.
Install a single-pole control lever by connecting it in series with the hot conductor leading to the outlet. Use insulated connectors and keep cable runs neat to prevent accidental shorts.
Verify all connections with a multimeter for continuity and correct polarity before applying full power. Ensure the breaker is switched off during testing to avoid shock hazards.
Secure all terminals with protective covers and use cable clamps to fasten runs along walls or boxes. This reduces strain and prevents mechanical damage during operation.
Test the setup by pressing the test button on the outlet to confirm the protective function is active. Flip the control lever to observe that the circuit responds correctly without nuisance trips.
Label the control lever and outlet to indicate that the circuit includes a safety mechanism. This provides a clear warning for anyone performing maintenance or adding devices downstream.
Perform periodic inspections of terminal tightness, cable condition, and protective components. Replace any corroded connectors immediately to maintain reliable operation and ensure safety standards are met.
Step by Step Guide to Connecting a GFCI Outlet Controlled by a Toggle
Begin by connecting the incoming live conductor to the line terminals on the protective outlet. Ensure screws are fully tightened and polarity is correct. Use insulated connectors to prevent accidental shorts during installation.
Install the toggle lever in series with the hot wire leading to the outlet. Keep cable runs straight and secured with clamps to prevent abrasion or loose connections. Confirm that neutral and ground conductors are routed separately to avoid false trips of the safety mechanism.
Test the setup before regular use by applying power and pressing the outlet’s test button to ensure the protection feature functions. Flip the toggle lever to verify the circuit responds correctly and monitor for any unusual heat at terminals, correcting any issues immediately.

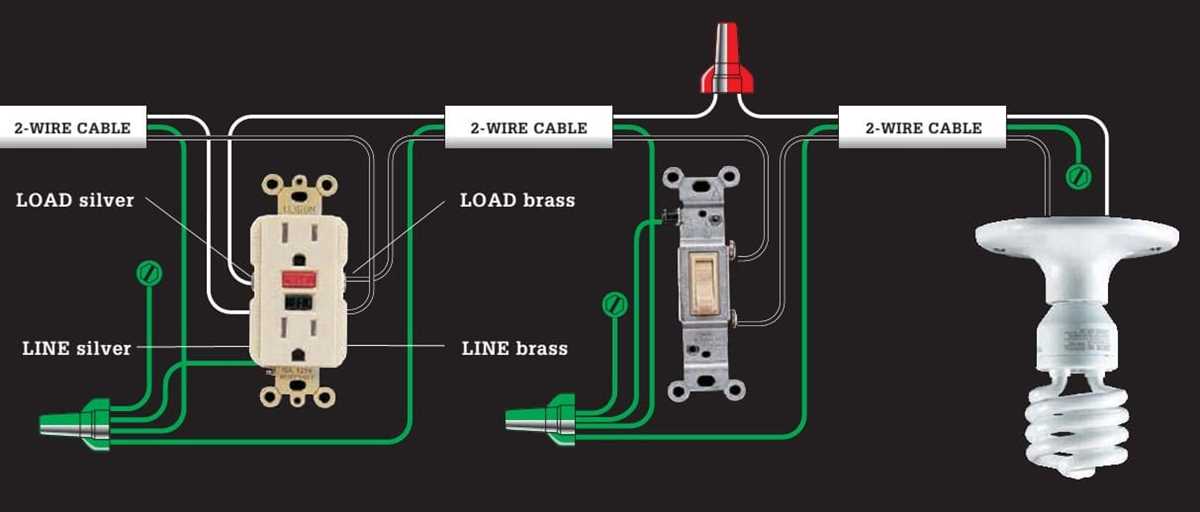

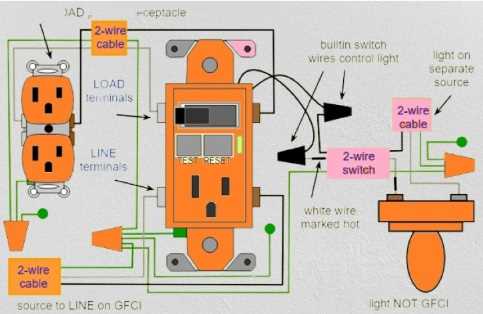

Identifying Line and Load Terminals on a Protective Outlet
Locate the terminal markings on the back of the outlet. The side labeled “Line” receives incoming power from the breaker or supply. Ensure the conductors are de-energized before handling.
Check screw colors for guidance. Brass-colored screws typically indicate hot connections for incoming power, while silver-colored screws mark the neutral terminals. Ground connections are separate and usually green.
Trace the incoming cable to confirm which wire carries supply voltage. Use a voltage tester to verify the hot and neutral conductors before attaching them to the outlet terminals.
Identify the load terminals if additional downstream outlets are to be protected. These terminals extend the protective function to other receptacles. Keep polarity consistent to maintain proper operation of the safety mechanism.
Mark each terminal clearly using a non-permanent label or colored tape. This prevents confusion during installation and future maintenance, especially in complex circuits with multiple protected devices.
Double-check connections before restoring power. Ensure all screws are tight and conductors are fully seated. Apply the test function on the outlet to confirm that the protective feature engages and resets correctly before normal use.
