Start by connecting the pickups to the switch in the correct order. The bridge, middle, and neck pickups must be wired to the switch so that each position produces the desired sound. This configuration typically allows for five different settings, providing a variety of tonal options. Position the bridge pickup in a way that gives you a sharp, bright tone, while the neck pickup should be wired for a fuller, rounder sound. The middle pickup offers a balanced tone when selected on its own.
Next, wire the tone controls properly. The tone pots are responsible for adjusting the treble frequencies. Ensure that each tone control is wired to the appropriate pickup and connected with the correct capacitor. Typically, a 0.022µF capacitor is used for the tone control, but you may choose a higher value depending on your preferences. Properly adjusting the capacitors can help you shape the sound more precisely, cutting high frequencies when needed.
Double-check the ground connections. All components, including the pickups, pots, and switch, must be grounded correctly to avoid noise and hum. Grounding ensures the electrical flow remains stable, preventing unwanted interference. A common practice is to ground all the metal parts inside the guitar’s control cavity and connect them to the bridge. This simple yet important step will help eliminate buzz and create a cleaner signal.

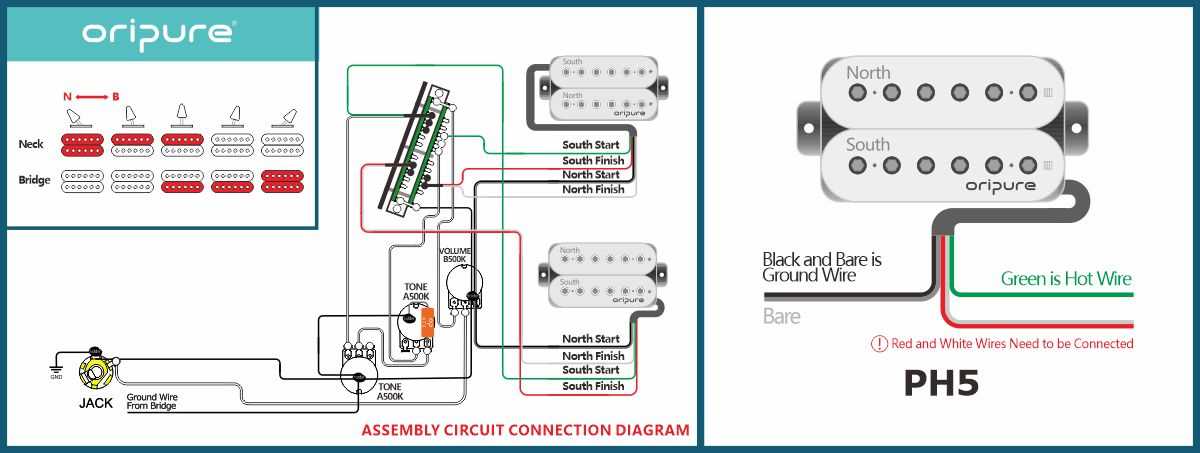

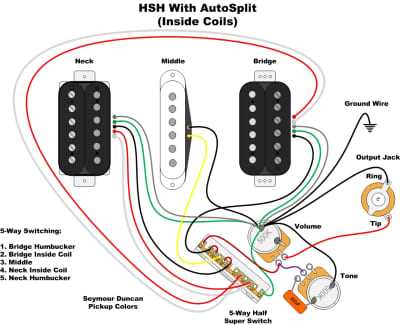

HSH Pickup Wiring Setup
Begin by identifying the three main pickups: bridge, middle, and neck. The pickups need to be properly aligned with the switch in a way that each position gives you a different combination of tones. The bridge pickup should be wired to give a sharp, cutting sound, ideal for solos or high-pitched leads. The middle pickup will offer a balanced, clean tone, while the neck pickup produces a warmer, fuller sound. Wiring them properly ensures you can easily switch between these tones while maintaining clarity.
Understanding the Tone Controls
Each pickup is linked to a tone control, usually a potentiometer (pot). The tone control adjusts the treble and midrange of the sound. Make sure to connect the capacitors to the tone pots in the correct configuration. A common choice is a 0.022µF capacitor, but you can opt for different values based on your tonal preferences. This component plays a significant role in shaping the sound, particularly in how much high frequency is cut when you adjust the tone knob.
Capacitors and Their Impact on Tone are crucial in determining how much high-end is rolled off when the tone is dialed back. If you prefer a warmer sound with less brightness, opt for a 0.047µF capacitor. A lower value capacitor will preserve more of the treble frequencies, giving you a brighter tone overall. Choose your capacitor based on how much treble you want to retain when adjusting the tone pot.
Grounding the Circuit
Proper grounding is a key step to ensure the setup works without interference. The ground connections should be securely made to all the metal parts within the guitar. This includes the bridge, control cavity, and potentiometers. The grounding system will prevent hum and noise, ensuring a clean, clear signal. A star grounding system is often preferred, where all ground points are connected to a single point, reducing the risk of ground loops.
Double-Check the Switch Connections. The switch in this configuration controls which pickup or combination of pickups is active. Each position of the switch corresponds to a specific sound, ranging from a solo bridge tone to a warm, clean neck tone. The switch needs to be wired so that the correct pickup is activated based on your selection. For example, positions 1 and 5 typically activate the bridge and neck pickups, while positions 2, 3, and 4 blend the pickups in various combinations.
Test the Connections Carefully before finalizing the setup. After you’ve soldered the components, test each switch position to ensure it provides the expected sound. If the signal isn’t working as expected, double-check the connections between the switch, pickups, and tone controls. Loose soldering or misconnected wires can lead to poor signal flow or unwanted noise.
When you’re ready to mount everything into the guitar, ensure that all wiring is neat and secured to prevent any interference with the body or other components. Use electrical tape or heat shrink tubing to secure the wiring and prevent it from touching other parts, which can lead to shorts or ground loops.
Once everything is set, you should have a fully functional setup that allows for a wide range of tonal options, from bright, sharp tones to warm, smooth sounds. With a properly wired system, you can easily switch between pickups to suit your playing style and musical needs.
