Begin by identifying the main power source in your vehicle. Use a 12-volt fused circuit capable of handling at least 30 amps to prevent overload and protect components.
Secure the air compressor near the tank with vibration-resistant mounts. Connect positive and negative leads using 10-gauge insulated wires to ensure stable current flow and avoid voltage drop during operation.
Install the control switch within easy reach of the driver. Route signal wires through grommets to protect against chafing and moisture, and use connectors rated for automotive use to maintain reliable connections.
For the horn units, maintain proper spacing and orientation to prevent air interference. Use quick-disconnect fittings for the tubing to simplify maintenance and prevent leaks under high pressure.
Test each section individually before full system operation. Check voltage at each terminal and listen for any abnormal noises or delays in air release, correcting loose or inverted connections immediately.
Air Horn Connection Setup for Vehicle Installation
Use a fused 12-volt power source rated for 30 amps or higher to supply the compressor and horn units. Secure the air tank with vibration-resistant brackets, and route positive and negative leads using 10-gauge insulated cables to minimize voltage loss. Protect all connections with heat shrink or automotive-grade terminals to prevent corrosion and ensure consistent performance.
Install the control switch close to the driver for immediate access. Route signal cables through grommets to avoid abrasion, and fasten tubing with quick-connect fittings to prevent leaks. Test each segment individually:
- Verify voltage at the compressor and horn terminals
- Check for air leaks at all fittings
- Confirm the switch activates the horns without delay
Adjust orientation and spacing of horn units to avoid interference from air turbulence, and secure all wires away from moving parts or heat sources to maintain long-term reliability.

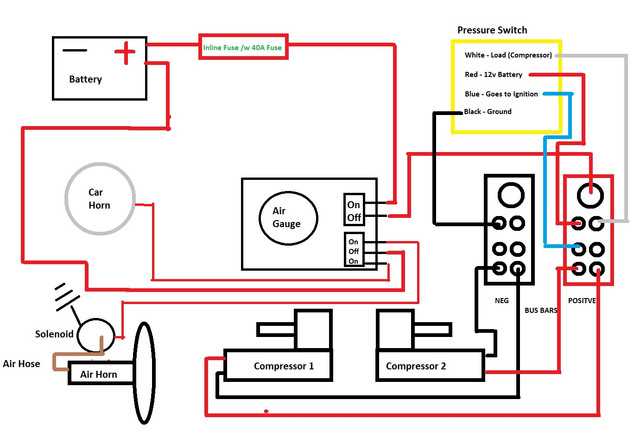

Connecting Horn Compressor and Air Tank Wires
Use a 12-volt fused power line rated for at least 30 amps to feed the compressor. Position the fuse as close to the battery as possible to protect the system from short circuits and prevent potential damage to components.
Mount the air tank on vibration-resistant brackets and secure it with bolts that match the tank’s rated mounting points. Avoid flexible or unstable surfaces to reduce stress on the fittings and prevent loosening during operation.
Route the positive cable from the power source directly to the compressor, keeping the run as short as possible. Use 10-gauge or thicker insulated wire to maintain stable voltage and reduce heat buildup along the conductor.
Connect the ground lead to a clean, bare metal surface on the vehicle chassis. Sand away paint or rust to ensure a solid metal-to-metal contact, and secure with a lock washer to prevent loosening over time.
Install inline connectors for both supply and return lines to simplify future maintenance. Use heat-shrink tubing or waterproof terminals to protect each connection from moisture, dirt, and corrosion that could reduce performance.
Test the system by activating the compressor briefly and observing pressure buildup in the tank. Inspect each joint and terminal for heat, looseness, or abnormal vibration, correcting any issues before full operation to ensure reliable and safe performance.
