Connect the main positive lead directly to the battery terminal using a 14-gauge or thicker wire to handle peak current. Ensure terminals are clean and tightened to prevent voltage loss during engine operation.
Identify the trigger input wire typically marked in green or yellow. Connect it to the pickup coil or sensor to synchronize spark timing accurately without splicing into unrelated circuits.
Verify the ground path between the ignition module case and the engine block. Remove paint or corrosion at the contact points and use a short, heavy-gauge wire if necessary for reliable conduction.
Inspect all connector plugs for bent pins, loose terminals, or oxidized contacts. Use dielectric grease to prevent moisture infiltration and maintain consistent voltage signals.
Measure voltage at the module terminals before starting the engine. Expect 12 to 14 volts on the main supply line with the ignition switched on and no load applied to confirm correct connection.
Check spark output at the coil by grounding the high-tension wire to the engine block. Observe strong, consistent sparks at idle and under light throttle to ensure proper firing sequence.

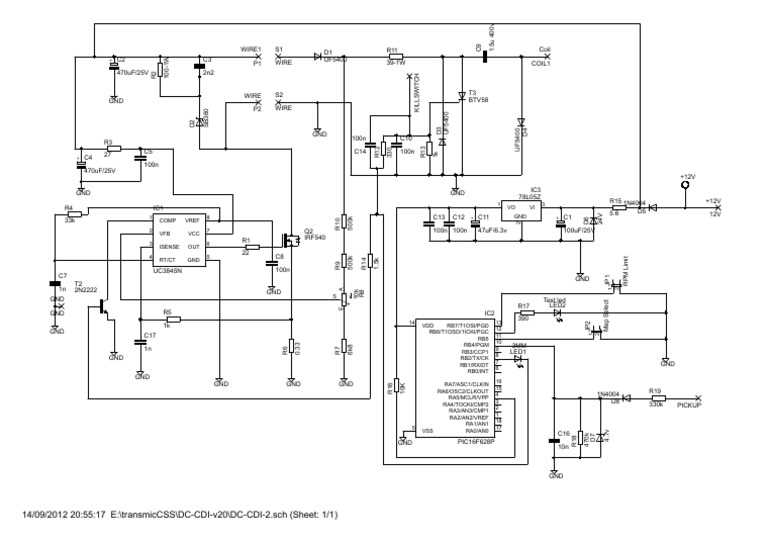

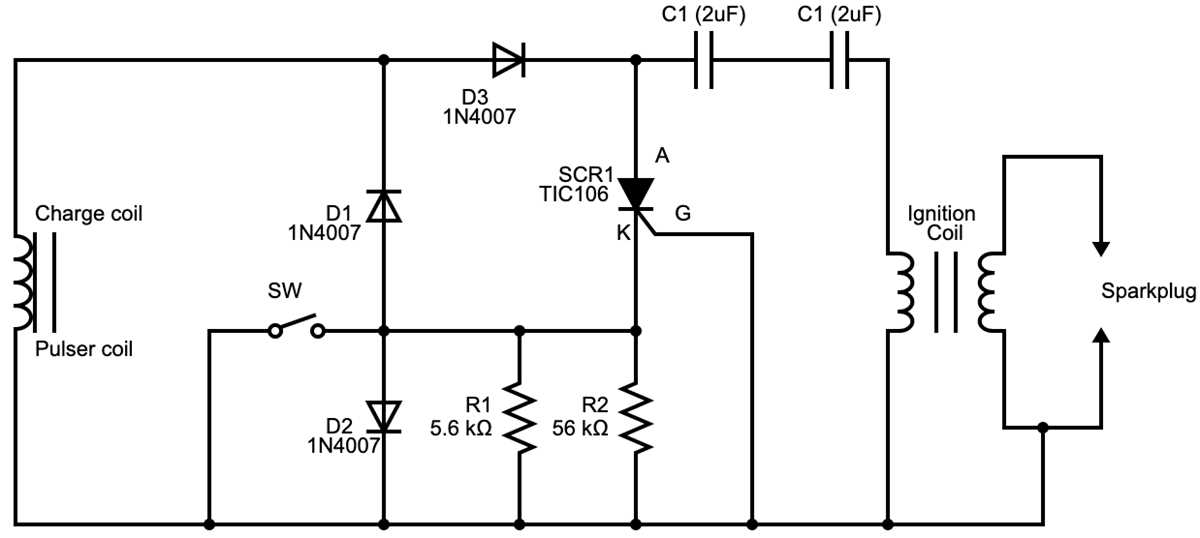

DC CDI Circuit Layout with Connection Details and Troubleshooting Tips
Connect the main positive wire directly to the battery using a 14-gauge or thicker lead. Ensure all terminals are clean and tightened to avoid voltage drops. Attach the trigger input wire, commonly green or yellow, to the pickup coil for accurate spark timing. Verify the ground path by securing the module casing to the engine block and cleaning any corrosion at the contact points.
Check all connectors for bent pins or oxidized contacts and apply dielectric grease to maintain consistent signals. Measure voltage at supply and trigger lines with a multimeter, expecting 12 to 14 volts with the ignition on. Test spark by grounding the high-tension lead to the engine block, confirming strong and consistent sparks at idle and under light throttle load.
Identifying CDI Terminals and Wire Colors
Locate the main positive output terminal and confirm it is connected with a thick red or black wire. This lead carries full current and must have secure, corrosion-free connections to maintain consistent power delivery.
Identify the trigger input wire usually green or yellow. Connect it directly to the pickup coil or sensor, ensuring it is not routed near high-current lines to prevent signal interference.
Check the sense wire, often thin and red, which monitors battery voltage for proper ignition timing. Ensure it connects to the voltage reference point without any splices that could reduce signal accuracy.
Inspect the warning light or lamp lead, commonly green or yellow. Connect it to the dashboard indicator for immediate detection of output problems. Use a multimeter to verify continuity and correct color coding before final assembly.
Verify grounding points between the module case and the engine block. Remove paint or corrosion at attachment points, secure with a short, heavy-gauge wire if needed, and test continuity to ensure reliable spark performance under all engine conditions.
