When installing a new system, proper electrical connections are crucial. To wire your unit correctly, you need to understand the placement of the power lines. Make sure to connect the two hot wires to the outer terminals, the neutral wire to the middle, and the ground wire to the designated terminal. This setup is critical to ensure the unit runs smoothly and safely.
Verify that your system’s power supply matches the unit’s requirements. Always follow the manufacturer’s instructions for power line placement. If you’re replacing an existing system, ensure the wiring follows current standards to avoid electrical problems and enhance performance. Incorrect connections can lead to inefficiency or damage, so double-check each wire’s placement before powering the unit.
If your setup involves complex wiring or adjustments, don’t hesitate to seek professional help. Proper grounding and insulation are necessary for safety. Incorrect wiring not only reduces system efficiency but also poses a significant risk of electrical faults. If you’re unsure about the installation process, consulting an expert ensures everything is correctly set up from the start.

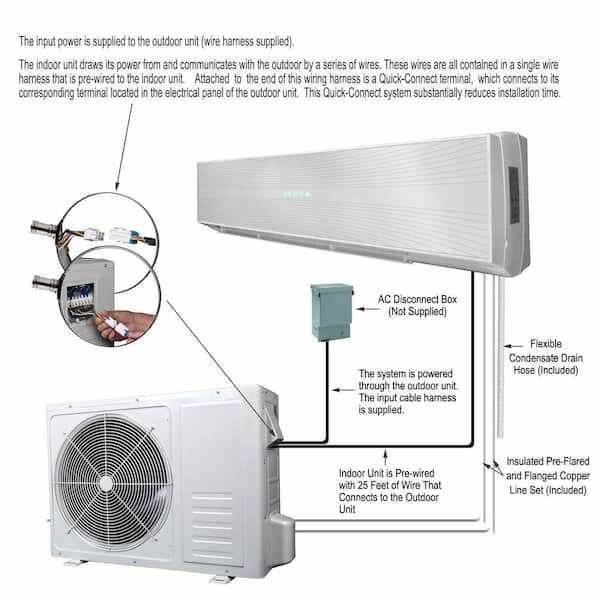

Air Conditioning 220v Mini Split Wiring Diagram
When installing a system, the first step is to confirm that your power source matches the unit’s requirements. A typical setup for this system involves a dedicated 240-volt power line. Ensure that the circuit breaker can handle the load, with a rating that matches or exceeds the manufacturer’s recommendation, usually around 30 amps.
Connecting the Power Supply
The power input for the system will consist of three main wires: two hot wires and a ground wire. The hot wires should be connected to the designated terminals on the control board, usually marked with L1 and L2. These wires are responsible for carrying the current necessary for the operation of the unit.
The neutral wire is typically not required in this setup, as the system works on a split-phase electrical supply. However, always check the manufacturer’s instructions to ensure compliance with local electrical codes and specific system requirements. For any deviation, like requiring a neutral connection, the installation guide should clarify the necessary steps.
Grounding and Safety Checks
Proper grounding is critical for safety. Ensure the ground wire is connected to the appropriate terminal on the unit’s chassis and securely attached to the ground rod or the electrical panel. A poor ground connection can lead to shock hazards or electrical fires, so never skip this step.
Once the wiring is complete, perform a thorough check. Test each connection for tightness and ensure that no exposed wires are touching other components. Double-check the breaker is rated for the correct amperage and the circuit is dedicated solely to this appliance. Power up the system and monitor for any unusual behavior, such as tripping the breaker or failure to start. If any issues arise, consult an electrician to recheck the installation.
How to Read a 220v Mini Split Wiring Diagram
Start by identifying the main components in the schematic. Look for the power supply lines, which are usually depicted with labels such as L1 and L2, representing the two hot wires. These wires are responsible for carrying the current to the unit. The diagram will also show the neutral and ground connections, which should be clearly marked, often as N for neutral and G for ground. Verify that each wire is connected to the correct terminal, as improper wiring can lead to electrical faults.
Understanding the Symbols and Labels
Check for any specific symbols that represent connections, such as rectangles or circles for terminal blocks or relays. These symbols correspond to physical components in the system. Also, pay attention to any color codes for the wires–black or red for hot, white for neutral, and green or bare for ground. Follow the diagram closely to match the wire color to the appropriate terminal and ensure proper installation. Double-check the connections before powering on the unit to avoid malfunctions.
