Connect the indoor module to the outdoor unit using a 14/2 cable with a dedicated 20-amp breaker. Ensure all terminals are tightened to 12 in-lb torque to prevent loose contacts and voltage drops. Label each conductor clearly to match the control panel connections.
Program the thermostat controller to match the system’s operational voltage. Verify sensor placement at the return air and supply air points to ensure accurate temperature readings and prevent short-cycling. Use shielded cables for signal lines to reduce electromagnetic interference.
Identify and connect the main power feed to the subpanel using copper conductors rated for 240 volts. Ground the metal chassis using a 6 AWG copper wire bonded to the building grounding rod. Double-check polarity on all phase connections to avoid motor damage or tripping the breaker.
Run communication lines between the compressor and control board following the manufacturer’s color code. Test each relay for proper operation before closing the access panels. Include inline fuses rated at 5 amps to protect the low-voltage circuits from surges.
Thermal System Electrical Connections
Start by connecting the indoor unit to the external compressor using a 14/3 cable rated for 30 amps. Ensure each terminal is secured and double-check that the breaker matches the circuit rating to prevent overloads.

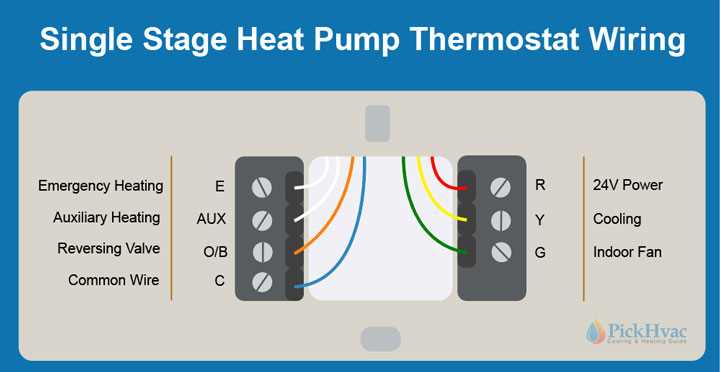

Install the thermostat interface following the manufacturer’s voltage specifications. Place temperature sensors in the return air duct and near the supply vent to maintain precise control over the system’s cycles.
Route the main power line from the subpanel using 10 AWG copper conductors. Ground the chassis with a 6 AWG copper wire bonded directly to the building’s grounding system. Confirm polarity on all live connections to avoid component failure.
Run communication lines between the control board and the compressor using shielded twisted pairs. Test signal continuity before energizing the system to prevent control errors and ensure reliable operation.
Insert inline fuses rated for 5 amps on all low-voltage circuits to protect sensors and relays. Connect auxiliary contacts on relays according to the manufacturer’s color code to avoid misfiring.
Check all connections with a multimeter, measuring voltage at each terminal under load. Inspect for loose strands or oxidation that can increase resistance and reduce performance.
Before closing the access panels, energize the system briefly and verify that each component responds correctly. Adjust relay settings if any delays or misfires occur to maintain smooth operation and prevent short cycling.

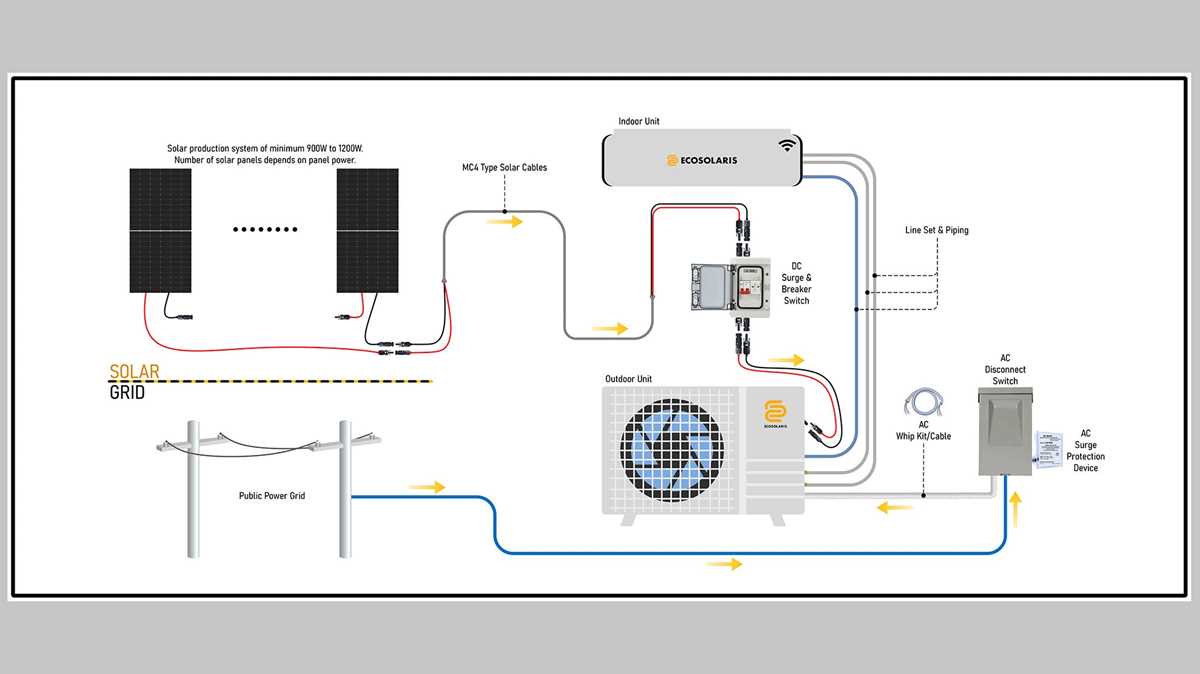

Connecting Indoor and Outdoor Units Safely
Use a 14/3 cable with a 30-amp breaker to link the interior module to the exterior compressor. Tighten all terminals to 12 in-lb torque to prevent arcing and voltage drops during operation.
Verify the color-coded lines match the control board terminals. Mark each conductor clearly to avoid misconnection and potential damage to relays or sensors.
Install a dedicated disconnect switch near the outdoor unit. Ensure the switch is rated for the system’s full voltage and amperage to allow safe servicing without shutting down the entire building.
Run shielded communication cables between the indoor thermostat and outdoor control board. Test continuity and resistance to confirm that signals transmit accurately without interference.
Ground the exterior chassis using a 6 AWG copper wire connected to the building’s grounding rod. Check for corrosion on all metal contact points to maintain a reliable grounding path.
Before closing the panels, energize the circuit briefly and observe each relay and motor response. Adjust connections if any delays or misfires occur to ensure smooth coordination between indoor and outdoor units.
