Connect the red and black leads directly to the terminals marked L1 and N to ensure proper current flow. Verify that the voltage matches the 240V rating specified on the metal housing of the coil assembly.
Check all spade connectors for corrosion or looseness before securing wires. Tight connections reduce the risk of arcing, which can damage the thermostat and thermal fuse over time.
Follow the sequence of sensors and relays when reattaching the coil unit to the main board. The temperature sensor must remain inline with the circuit to maintain accurate heat regulation.
Label each wire during disassembly to prevent confusion when reconnecting. Use a multimeter to confirm continuity across each lead and ensure that no insulation is cracked or worn.
Connections for Dryer Coil Assembly
Attach the black lead to the L1 terminal and the red lead to N immediately after removing the old coil unit. Ensure the metal tabs are clean and free of oxidation to maintain proper conductivity.

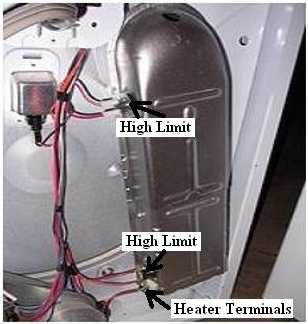

Inspect the thermal fuse and temperature sensor before reconnecting. A multimeter reading should show continuity across both components. Replace any unit that reads open or fluctuates under slight pressure. Follow this sequence:
- Disconnect power and unplug the appliance.

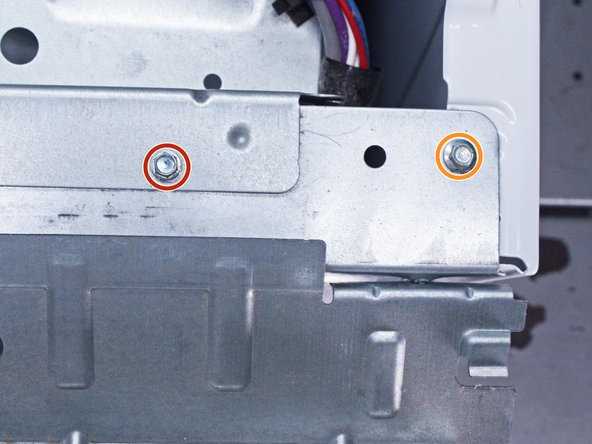

- Remove the rear panel to access the coil assembly.
- Check each lead for frays or burns.
- Secure wires with spade connectors and tighten screws.
After connections, run a test cycle on low heat. Observe the coil glow and monitor voltage with a meter at the terminals. Any irregular resistance or uneven heating indicates a misconnection or damaged sensor that must be corrected before regular use.
Identifying Terminals and Lead Colors
Locate the metal tabs labeled L1 and N on the coil assembly before connecting any wires. The black lead should attach to L1 while the red lead connects to N. Verify that each spade connector fits snugly and that insulation ends just before the terminal to prevent short circuits.
Use a color-coded reference chart to distinguish sensor and relay leads from main power wires. Orange or yellow typically indicates signal connections, while white or blue may indicate neutral. Testing continuity with a multimeter ensures that each wire corresponds to the correct terminal and prevents overheating or fuse failure during operation.
