Identify the common, traveler, and load terminals before making any connections. The common terminal carries the main power, while the traveler terminals alternate the current between two control points, and the load terminal connects directly to the light fixture. Verify each line with a voltage tester to prevent shorts or incorrect connections.
Use insulated connectors and secure lines to maintain stable contact and prevent corrosion. Route conductors along walls or junction boxes, keeping them away from sharp edges and heat sources. Avoid twisting bare wires together without proper terminals, as vibration can loosen the connection.
Test the circuit at each control point with a multimeter or 12V test light. Operate each control individually and observe the fixture to confirm correct operation. Label each line near the terminal to simplify future troubleshooting or replacement without guesswork.

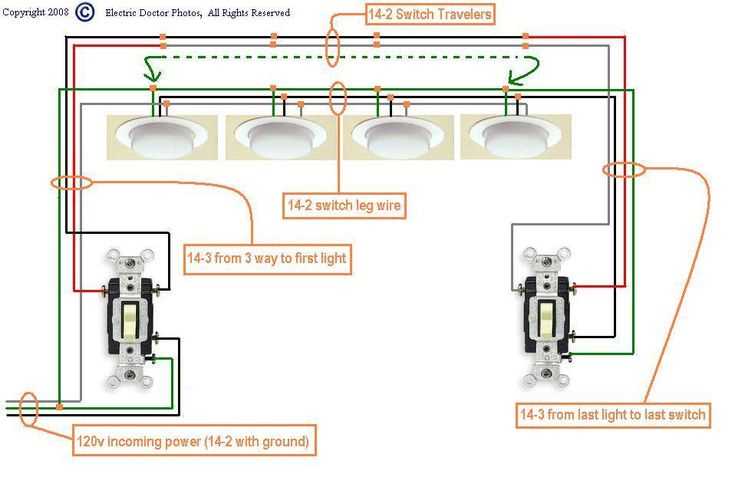

Step by Step Guide to Connecting a 3 Circuit Control for Multiple Lights
Start by identifying the common, traveler, and load terminals. The common terminal receives power from the source, the traveler terminals alternate current between the two control points, and the load terminal connects directly to the lighting fixture. Verify each connection with a voltage tester to avoid shorts or incorrect routing.
Strip the insulation carefully to expose the metal conductor. Use insulated connectors and secure the joints with heat-shrink tubing to prevent corrosion and maintain stable contact. Avoid twisting bare wires together, as vibrations can loosen the connection over time.
Route all conductors neatly along walls or junction boxes. Keep wires away from sharp edges and heat sources to prevent damage or shorts. Use cable clips or ties to hold lines in place and maintain a clean installation that reduces the risk of interference or accidental disconnection.
Test each control point individually with a 12V test light or multimeter. Activate each control and verify the lights respond correctly at all positions. Check the load terminal to ensure the fixture receives power in every control configuration.
Label each line near its terminal to simplify future troubleshooting or replacements. Inspect connections periodically for corrosion or loosened contacts, and apply a small amount of dielectric grease to maintain current flow and prolong the lifespan of the circuit and lighting components.
Identifying Each Terminal and Its Function in a 3 Circuit Setup
Locate the common terminal first. This point receives the main power feed and distributes current to the fixture through the traveler lines. Confirm its identity with a voltage tester before making any connections to prevent misrouting and short circuits.
Understanding Traveler Terminals
The traveler terminals alternate the current between the two control points. Each traveler carries the same voltage but only completes the circuit when the corresponding lever is engaged. Label these terminals to avoid confusion during installation and testing.
Check the load terminal carefully. This terminal connects directly to the lighting fixture and carries current only when the circuit is complete. Use a test light to verify that it receives power from both control points independently.
Inspection and Safety
Examine each terminal for corrosion, bent contacts, or physical damage. Clean or replace any compromised terminals to maintain a reliable connection and prevent flickering or failure in the lighting system. Tighten all screws to secure the conductors firmly.
After connections are made, test the entire setup from both control points. Activate each lever and observe the fixture to ensure proper operation. Label each line with its function to simplify future maintenance and prevent accidental misconnection.
Document the setup with a simple schematic showing the common, traveler, and load terminals. This reference assists in troubleshooting or expanding the circuit to additional lights without risking incorrect connections or overloads.
