Install the main stop switch in a clearly accessible location to allow immediate shutdown of machinery. Ensure the switch is rated to handle the full load current of the system.
Use heavy-gauge wires to connect the switch to the main power line and prevent overheating. Secure connections with corrosion-resistant terminals to maintain reliable operation.
Integrate a fuse or circuit breaker near the switch to protect both the switch and downstream components from short circuits or overload conditions.
Label all connections and maintain a wiring map to simplify maintenance and troubleshooting. Note input and output terminals and any auxiliary contacts used for signaling or interlocks.
Test the shutdown functionality regularly under normal and simulated load conditions. Verify that the machinery stops immediately without any delay or partial movement.

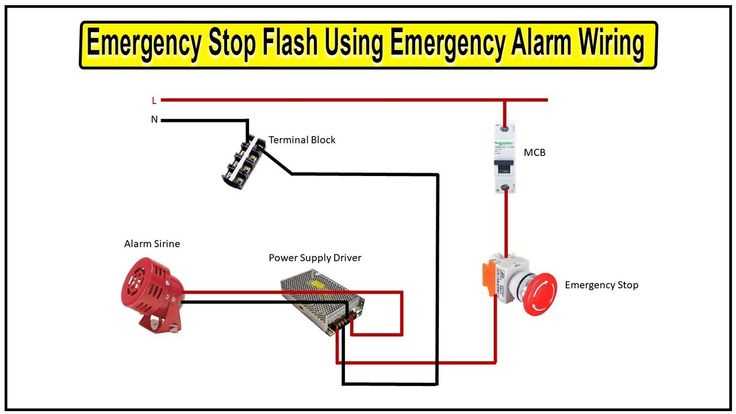

Ensure that auxiliary indicator lights or alarms are connected to confirm activation of the shutdown switch, providing visual or audible feedback for operators.

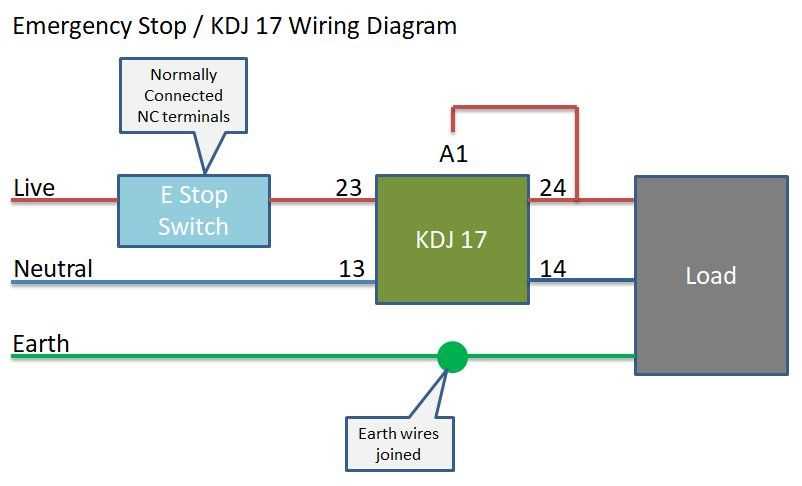

Emergency Stop Switch Setup and Connections
Mount the main shutdown switch within immediate reach of operators to ensure rapid deactivation of all power lines. Confirm that the switch rating matches the maximum load of the system.
Use insulated, heavy-gauge cables to connect the switch to the primary power source. Terminals should be crimped and secured to prevent loose connections and arcing.
Integrate protective fuses or breakers near the switch to guard against overloads and short circuits. Select ratings slightly above normal operating current to avoid nuisance trips.
Label all terminals and maintain a wiring map showing input, output, and any auxiliary contacts. This simplifies future maintenance and ensures correct reconnections if adjustments are needed.
Verify the shutdown function under full load conditions regularly. Observe that all moving parts stop immediately, and any signaling indicators activate correctly to confirm system deactivation.
Choosing Components and Switch Types for Safety
Select a switch rated for the full load current with mechanical latching to ensure it stays in the off position when activated. Use switches with a minimum contact rating 25% higher than the maximum expected current.
- Opt for industrial-grade push-button or mushroom-head designs for quick activation.
- Include auxiliary contacts for signaling or interlocking other systems.
- Use heat-resistant and corrosion-proof materials to maintain reliability under harsh conditions.
