To wire a two-way electrical device that controls two separate circuits, identify the terminals carefully. Each terminal serves a specific purpose: the live terminal, neutral, and ground terminals. Connecting wires to the wrong terminal can lead to malfunction or electrical hazards.
Start with the live connections: The live wires are responsible for carrying power. Ensure each live wire is securely connected to the corresponding terminal. Use wire connectors and ensure that the connections are tight to avoid any loose contacts that could cause overheating.
Next, focus on the neutral wire: The neutral wire should always be connected to the designated neutral terminal. This wire ensures the circuit completes and returns electricity safely. Make sure the neutral wire is free of damage and securely attached to avoid any disruption in the power flow.
Finally, grounding is a must: The ground wire provides safety by redirecting any stray electricity. Always attach it to the grounding terminal. This simple step can prevent potential electric shocks, especially in the event of a short circuit.

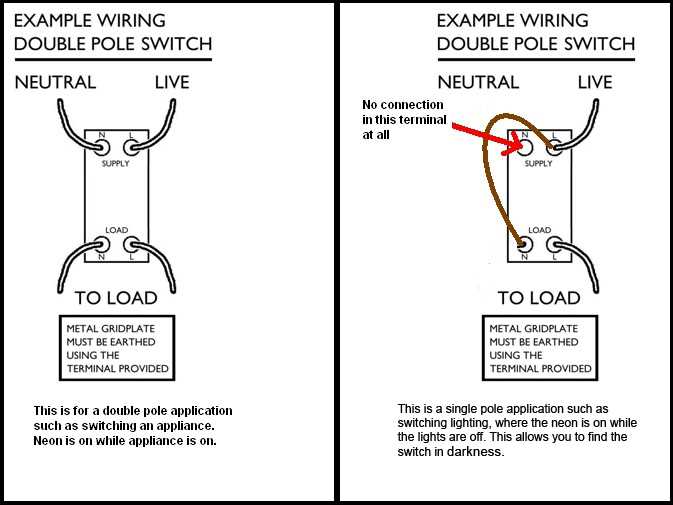

Wiring Setup for a Two-Circuit Device
When connecting a two-circuit device, first identify the two live wires that need to be controlled separately. These should be connected to distinct terminals on the device. The correct placement of these wires ensures that each circuit can be independently turned on or off, making this configuration ideal for controlling two separate appliances or lights from a single point.
Next, connect the neutral wire to the corresponding terminal. This wire completes the electrical circuit and allows the current to return safely to the power source. Make sure the neutral wire is securely fastened, and double-check for any damage before attaching it to the device.
Grounding is a necessary step in any electrical setup. Attach the ground wire to the grounding terminal to prevent electrical hazards. This wire ensures that any stray electrical current is safely directed to the earth, preventing potential shocks in case of a malfunction.
Once all connections are made, ensure that the device is properly secured in place. An unstable installation can result in loose wires or improper contact. Use the proper mounting hardware to secure the device, making sure it is firmly in position and free from movement. This will prevent any disruptions in the electrical flow.
Finally, test the system to verify that both circuits are functioning correctly. Turn the device on and off and check that each connected circuit responds as intended. If any issues arise, recheck the connections for loose wires or incorrect placements.

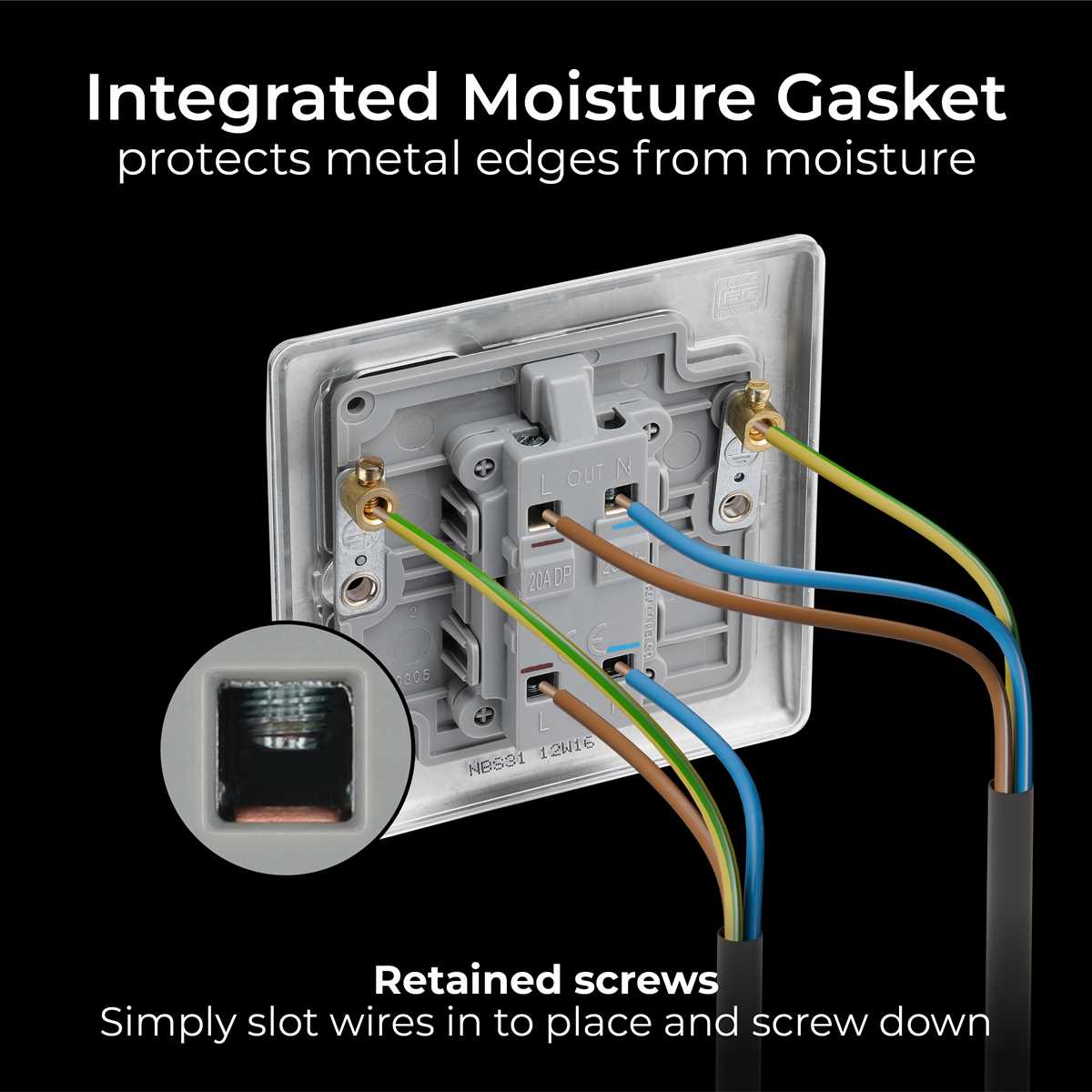

How to Identify the Terminals on a Dual Pole Switch
Start by locating the two main terminals on the device. These are typically positioned on opposite sides, with clear markings indicating their function. One set of terminals will be for the live wires, while the other set is for neutral or ground connections. Knowing where to place each wire is key for proper installation.
The live terminals are usually marked with a color code or a symbol. In most cases, these terminals will be located on the sides of the device, and you’ll notice that they are connected to the power input. These are the first points of contact for current flowing into the system.
The neutral terminal, which completes the circuit, is often placed near the live terminals but is usually clearly labeled with the word “neutral” or an N symbol. This connection ensures that the current can return to the power source after completing its task.
Look for the ground terminal next, which is typically marked with the ground symbol or the letter “G.” This terminal provides safety by directing any stray electricity to the earth, preventing shocks or damage to your system.
Take care to differentiate between terminals by the size and shape of the connections. In many cases, live terminals are larger than neutral or ground connections, and their design may prevent the wrong type of wire from being attached.
Before connecting any wires, double-check the terminals for any visible markings or instructions. Many devices come with a quick-reference guide that details the location of each terminal. It’s important to follow these guides closely to avoid errors in your installation.
Finally, make sure the connections are secure and properly insulated. Loose or exposed wires can lead to short circuits or electrical hazards. Tighten the screws or clamps holding the wires in place to ensure the connections are safe and reliable.
