Start by selecting a suitable control switch to manage the cooling units. Properly connect the power input to the correct terminals and ensure that the ground connections are tight. This will reduce the risk of system failure due to weak or loose connections.
When installing, make sure to separate the high-current and low-current wires. This will prevent unwanted interference and ensure stable operation. Use wire connectors that are rated for the appropriate amperage and avoid overloading any part of the circuit.
After setup, check each component’s function. Ensure that the cooling system responds to temperature changes and operates in the correct sequence. Using a voltmeter, check the voltage across critical points to confirm the proper flow of electricity throughout the system.
How to choose the right relay for your dual fan setup
Selecting the right control switch is crucial to ensure the system functions correctly and safely. Start by choosing a model that can handle the total amperage required by the cooling units. Each unit draws a certain amount of current, and the switch must be rated for at least that amount, preferably with a margin for safety. If the switch is underpowered, it may overheat or fail prematurely.
Next, check the voltage ratings of the control switch. The voltage of your power source must match the relay specifications. Using a switch with a lower voltage rating than your power supply could cause malfunction or damage. Ensure that the control unit is designed for the voltage type, whether 12V, 24V, or higher, depending on your setup.
Consider the number of circuits
If you are managing multiple cooling units, it’s important to choose a model with enough circuits to handle both. Some switches are single-circuit, while others offer two or more circuits for controlling multiple systems simultaneously. Ensure that each circuit can handle the current load independently without causing overloading or failure.
Review the operational temperature range
The control system should be able to withstand the environmental conditions of the vehicle or area where it’s installed. Choose a unit that operates well within the temperature range your cooling units might reach. A switch rated for higher temperatures will offer better durability, especially in areas where heat dissipation is a concern.
Finally, opt for a relay with good durability and corrosion resistance, particularly if the system is exposed to moisture or extreme weather conditions. A high-quality unit will last longer and require less maintenance. Always check for certifications or ratings that ensure reliability over time.

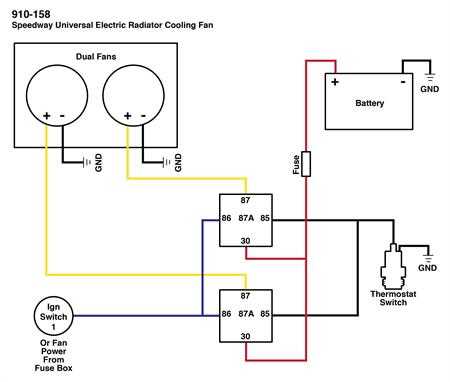

Wiring the dual fan relay to the fan motor and fuse box
Begin by identifying the terminals on the switch that correspond to the power input, ground, and output to the cooling system. The power input will come directly from the vehicle’s battery or fuse box. The ground connection should be made to a solid metal surface on the vehicle chassis to ensure proper grounding.
Next, connect the output terminal of the switch to the control wire of each cooling unit. Use wire gauges that are appropriate for the current being drawn by the units. For optimal results, avoid using wires that are too thin, as they may cause voltage drops and overheating.
The power supply wire from the fuse box should be connected to the input terminal of the switch. Ensure the fuse is rated for the total current demand of the cooling system. Installing a fuse with too low of a rating can lead to frequent blows, while one with too high a rating can leave the system vulnerable to damage during power surges.
Connect the relay to the control switch
After connecting the power and ground wires, it’s time to connect the relay to the control switch. Use a relay that’s rated for the same voltage as your power source and the combined current of both cooling units. The relay will act as an intermediary to manage the larger current draw, ensuring the control switch doesn’t overload.
Secure all connections with proper insulation
Once the wires are connected, ensure that each connection is securely insulated to prevent short circuits. Use high-quality electrical tape or heat shrink tubing around exposed metal parts. This will protect the wiring from abrasion, moisture, and potential corrosion.
After securing the wires, route them away from heat sources or moving parts that could cause wear over time. Use wire clips or ties to keep everything in place and prevent vibrations from loosening the connections during operation.
Once all the wiring is secured, test the system by turning on the vehicle and checking that the cooling units operate as expected. Use a multimeter to verify that each connection is receiving the correct voltage and that the current draw doesn’t exceed the rated capacity of the system.
In case the units don’t activate correctly, check all connections for tightness and ensure the fuse is intact. If the system still fails to work, inspect the switch and relay for faults, and replace any damaged components as needed.
