Connect the main terminals first to ensure proper voltage flow between both energy units. Use a heavy-gauge cable to handle high current demands without overheating.
Install an isolator or voltage-sensitive relay to prevent one unit from draining the other. Position the device close to the primary power source for accurate sensing and reliable separation.
Fuse each line near the positive terminals to protect against short circuits and potential damage. Choose fuses rated slightly above the expected load but below the cable capacity to maintain safety.
Check all connections with a multimeter before completing the setup. Confirm voltage at each terminal and ensure there are no unexpected drops under load to guarantee stable power distribution during operation.
Secondary Power Connection Guide
Connect the primary positive terminal first using a thick, insulated cable to handle peak current. Ensure the connection is tight to avoid voltage drops or sparking during high load periods.

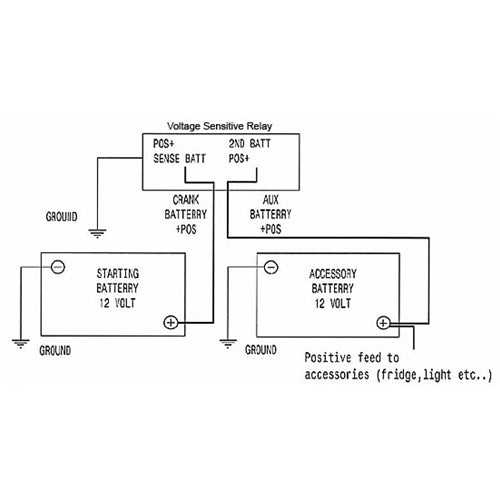

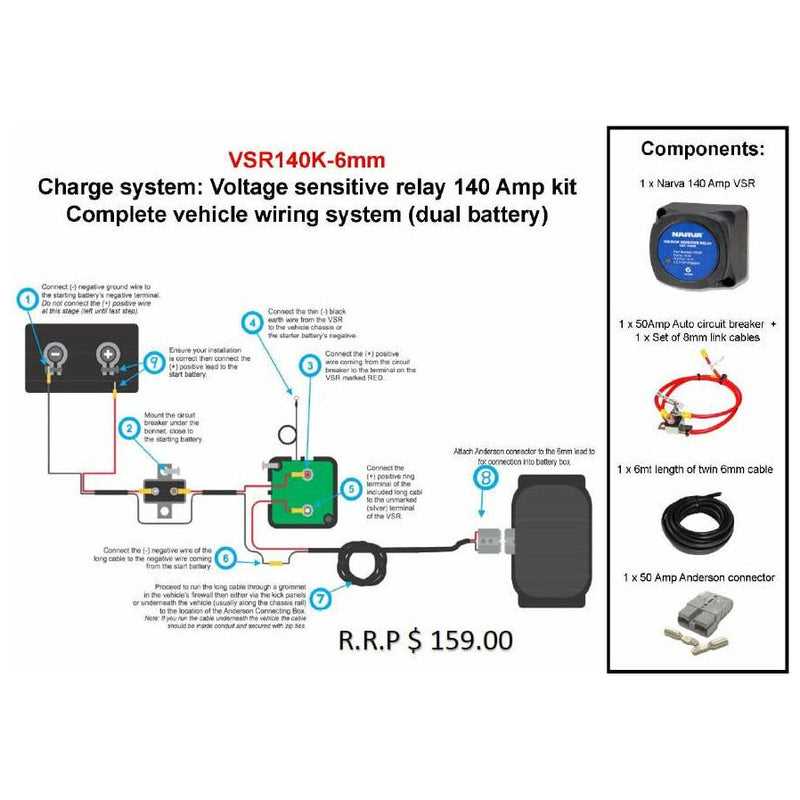

Install a voltage-sensitive relay between the main and auxiliary sources to isolate units when the engine is off. This prevents unintentional discharge and maintains full charge in the main unit for starting the engine.
Use properly rated fuses near each positive post to protect the system from short circuits. Match fuse ratings to the expected load while keeping them below the cable’s maximum capacity to avoid overheating or fire risk.
Optimizing Cable Runs
Keep cables as short as possible to reduce resistance and heat buildup. Route wires away from sharp edges and moving components, securing them with clamps or zip ties to prevent abrasion and vibration damage over time.
Check polarity before final connections using a multimeter. Reversing leads can damage electronic devices, alternators, and inverters, so confirm that positive and negative lines match the intended terminals accurately.
Final Testing and Verification
Run a test under load by operating lights, inverters, or auxiliary systems simultaneously. Monitor voltage at each post to confirm stable distribution, ensuring no unit drops below safe thresholds during high-demand periods.
Selecting the Right Power Sources and Isolators
Choose units with matching voltage ratings to prevent uneven charging or discharging. Lead-acid or AGM types offer stable output under load, while lithium models provide higher energy density but require specific charging profiles.
Check the amp-hour capacity of each source relative to expected power demands. Higher capacity units support prolonged use of lights, inverters, and auxiliary devices without causing excessive voltage drops or premature depletion.
Isolator Types and Placement

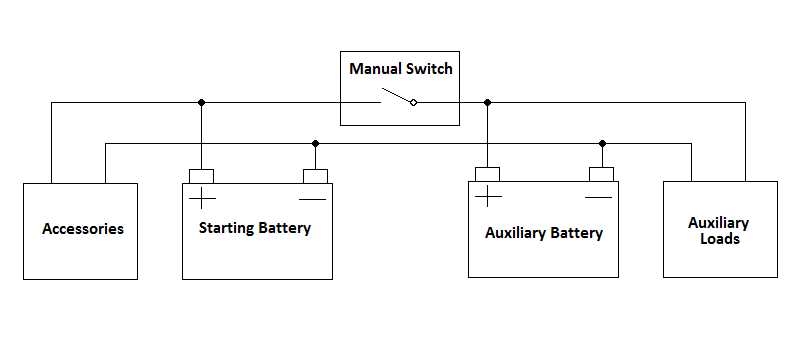

Install a voltage-sensitive relay or mechanical isolator close to the main energy unit. Electronic relays engage automatically at set voltages, while mechanical solenoids require a manual or keyed trigger, both preventing unwanted cross-drain.
Compatibility and Safety Considerations
Confirm that all isolators can handle peak current loads and match cable sizing. Oversized loads on undersized relays cause overheating, while undersized units may fail to isolate properly, risking damage to electronic systems or auxiliary units.
