Identify all power and ground leads before making connections. Red or orange wires carry switched current, while black or brown cords serve as chassis ground. Correct identification prevents short circuits and ensures stable operation.
Match speaker outputs to their respective terminals using color-coded cables. White and gray lines generally correspond to front channels, while green and purple manage rear outputs. Confirm positive and negative terminals for each speaker to avoid phase issues.
Connect control and auxiliary lines carefully. Blue wires often trigger antenna or amplifier circuits, and illumination lines adjust brightness on the display. Secure each connection and test for continuity before final assembly.
Test the entire system by powering on each function individually. Verify sound output, screen response, and auxiliary features to ensure all connections are correct and the unit operates reliably under normal use.
Car MP5 Player Electrical Connection Guide
Begin by identifying power and ground leads. Red or orange cords usually carry switched current from the ignition, while black or brown cables connect to the chassis ground. Secure connections prevent shorts and ensure stable operation.
Label each speaker output before connecting to the head unit. White and gray lines typically handle front channels, green and purple manage rear channels. Confirm polarity for each lead to avoid phase inversion and distorted audio.
Connect control and auxiliary circuits carefully. Blue wires often trigger external amplifiers or antennas, while illumination lines adjust display brightness. Ensure each connection is tight and insulated to prevent accidental shorts.
Use a multimeter to verify continuity across all connections. Test each terminal individually to confirm voltage levels and signal flow. This step prevents malfunctions after assembly and confirms correct installation of all channels.
Secure all terminals and connectors with appropriate fasteners. Avoid over-tightening screws that could damage plastic housings. Ensure connectors are fully seated and locking tabs engage to maintain a reliable electrical path.
Test each function before final assembly. Power on the unit and confirm sound output, display response, and auxiliary features. Check that all channels operate correctly and the unit shuts down cleanly when switched off or disconnected.
Identifying Power Ground and Speaker Leads

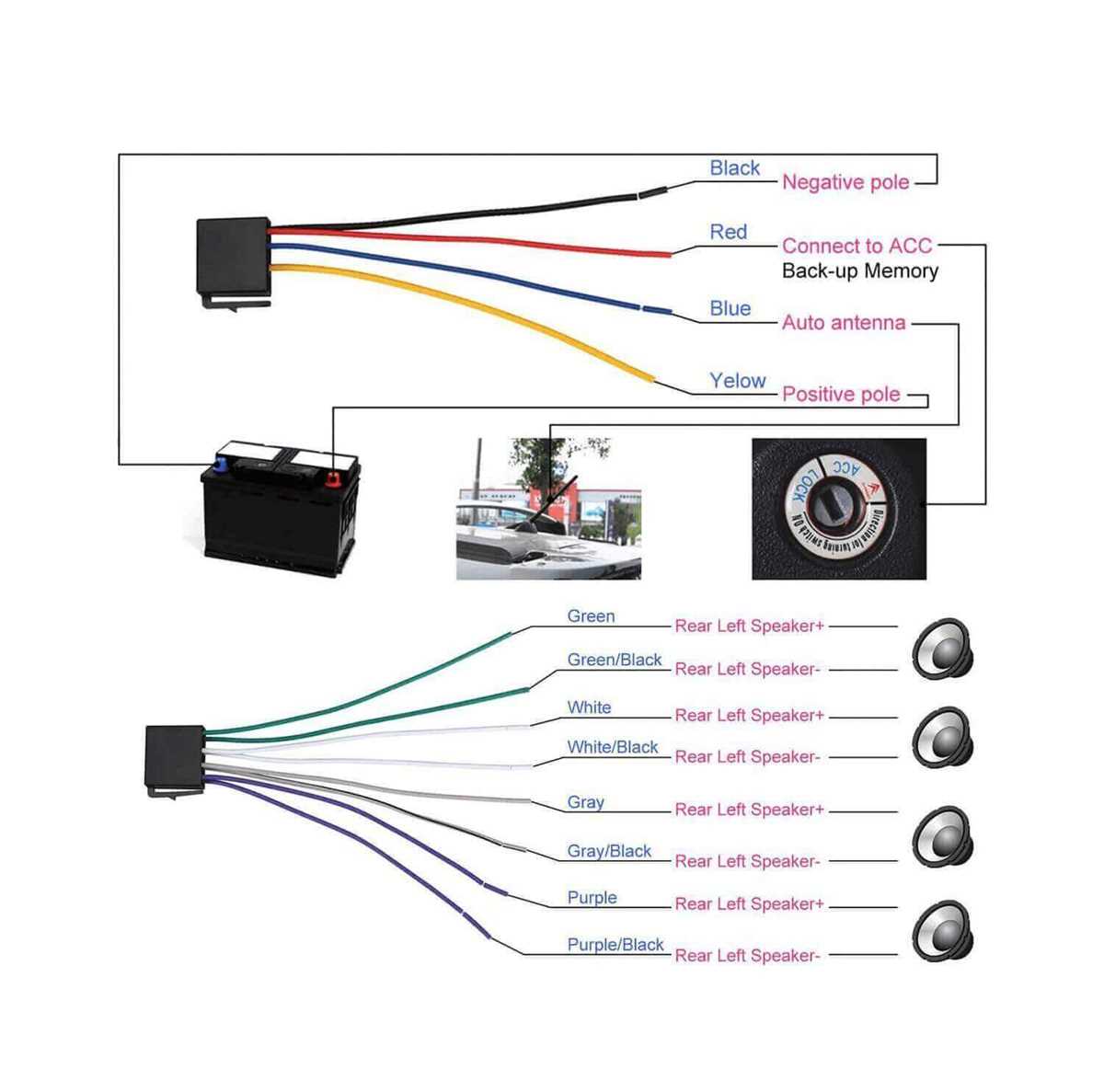

Locate the main power cord first and verify its color coding. Red or orange wires carry switched current from the ignition, while black or brown cables serve as grounding points. Ensuring correct connections prevents shorts and protects internal circuits.

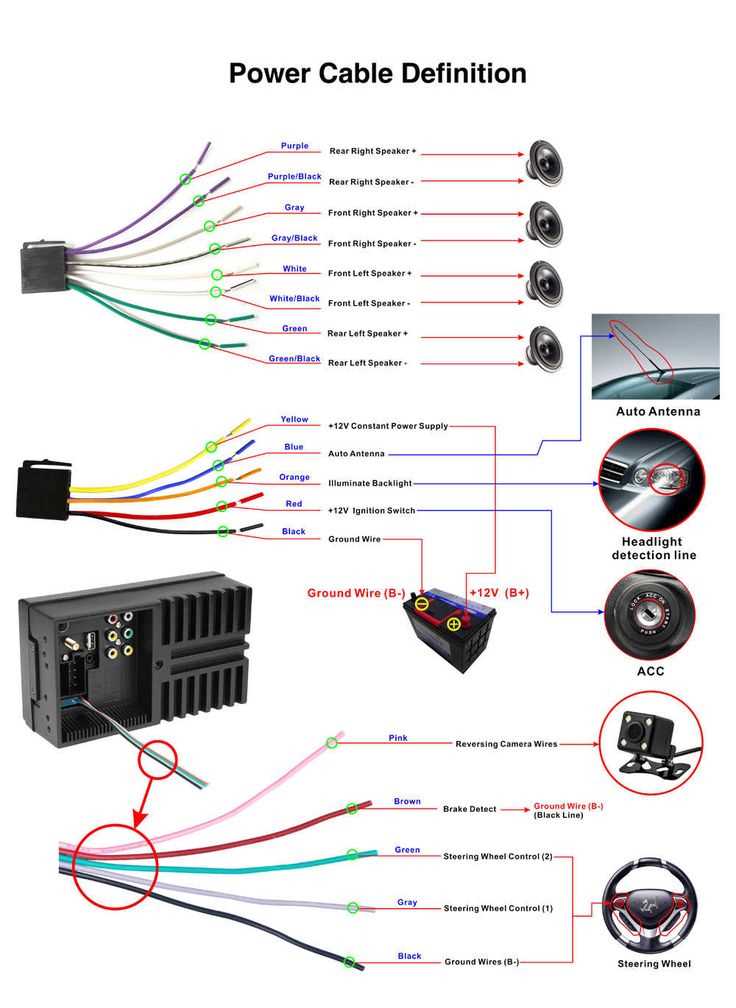

Trace each speaker output individually. Use color codes to match terminals:
- White – front left positive
- White with black stripe – front left negative
- Gray – front right positive
- Gray with black stripe – front right negative
- Green – rear left positive
- Green with black stripe – rear left negative
- Purple – rear right positive
- Purple with black stripe – rear right negative
Check control and auxiliary leads. Blue wires often trigger external amplifiers or antenna circuits, while yellow usually connects to constant battery power. Confirm each connection with a multimeter before final assembly.
Secure all terminals firmly and test each channel individually. Verify sound output, polarity, and response of all controls. Proper identification and testing reduce risk of damage and ensure reliable operation under all conditions.
