Connect the 24-volt thermostat leads directly to the R and W terminals on the control board. Ensure the red wire is attached to R and white to W to activate the heating relay properly.
Verify the blower motor connections before energizing. The black wire should connect to L1, white to neutral, and green to ground. Tighten all terminals to manufacturer specifications to prevent loose contacts that cause motor failure.
Install safety controls including the limit switch and flame sensor with secure mechanical and electrical connections. Test each component with a multimeter to confirm proper continuity before closing the control panel.
Use labeled, color-coded wires to distinguish between power, neutral, and control leads. This prevents confusion during troubleshooting and ensures consistent signal flow throughout the heating system.
Test the complete system by applying power and verifying that the thermostat triggers the relay, the blower starts, and safety controls interrupt the circuit if abnormal conditions occur. Confirm voltage readings match expected levels across all terminals.
Heating System Electrical Connection Guide
Connect the 24-volt control lines to the R and W terminals on the control board. Red wire goes to R and white to W to engage the relay correctly. Confirm all connections are tight and insulated to prevent shorts.
Blower Motor and Power Leads
Attach the motor leads as follows: black to L1, white to neutral, and green to ground. Use a torque screwdriver to secure terminals to manufacturer specifications. Avoid loose connections that can cause overheating or motor failure.
Safety Device Integration involves installing limit switches, flame sensors, and pressure switches with proper mechanical mounting and electrical connections. Test continuity across each device with a multimeter to ensure correct operation before powering the system.
Final Testing and Verification
Label all leads with color-coded tags for power, neutral, and control circuits. Energize the system and verify the thermostat triggers the relay, the blower starts, and safety devices interrupt the flow under abnormal conditions. Measure voltage at each terminal to confirm expected readings and reliable performance.
Selecting Proper Thermostat and Power Connections

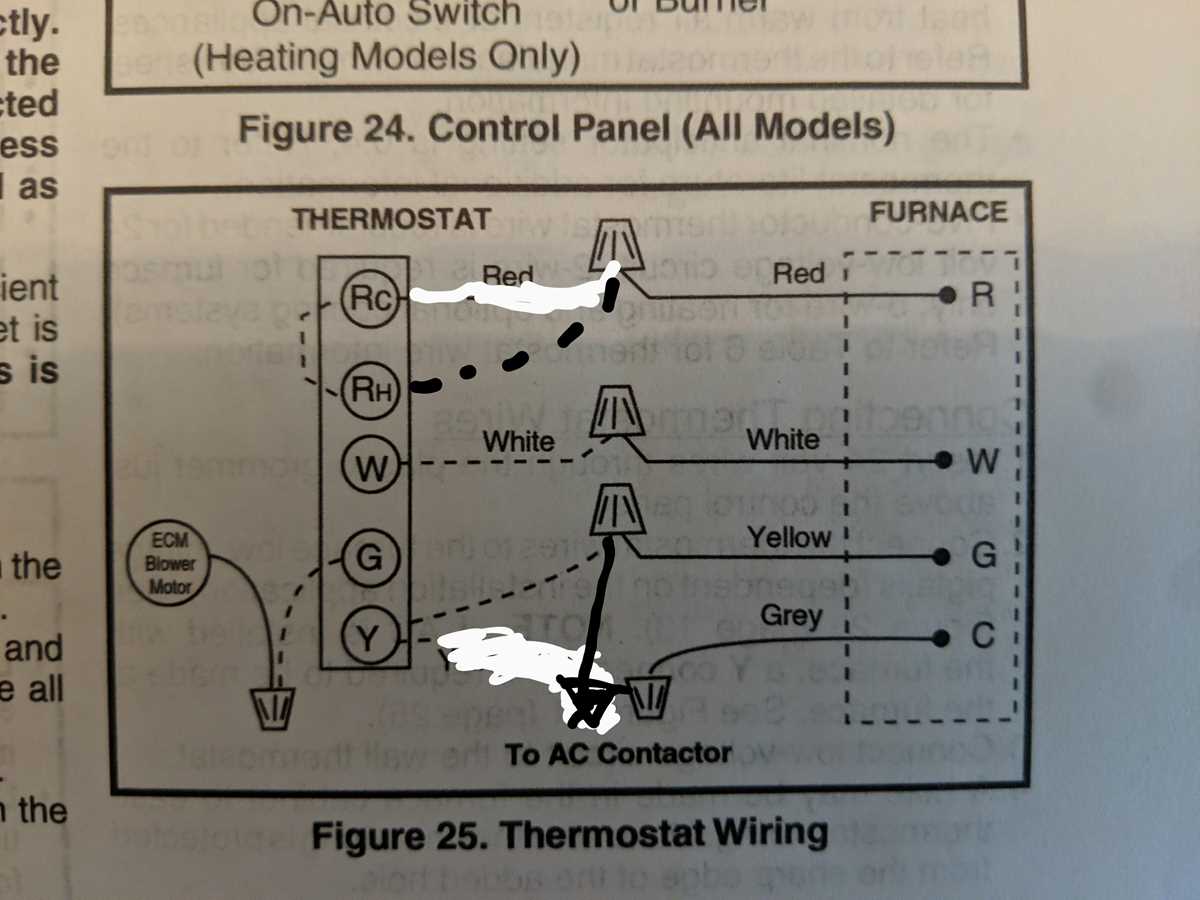

Connect the thermostat R and W terminals with short, insulated 18-gauge copper leads. Red wire attaches to R and white to W to activate the relay accurately. Avoid twisting or crossing wires to prevent signal interference.
Verify the 24-volt transformer output before connecting to the control board. Measure voltage across the secondary terminals to ensure 24 volts AC. Use a fuse inline with the transformer for added protection against overloads.
Route all power and control lines through strain relief connectors and secure them inside the panel. Keep wires separated by function–line voltage, low-voltage control, and ground–to reduce the risk of short circuits and electromagnetic interference.
Test continuity and correct polarity of each lead before energizing. Apply power and confirm the thermostat successfully triggers the relay, and that voltage readings match expected levels at the relay, blower, and safety devices. Label each lead for easy identification during maintenance.
