Attach each colored lead to its corresponding terminal with green for earth, brown for active, and blue for neutral. Ensure conductors are stripped to the correct length and inserted fully to maintain contact integrity.
Secure screws firmly without over-tightening to prevent damage to the metal clips or deformation of the housing. Loose connections can cause overheating and electrical faults.
Keep conductors separated and routed away from edges or moving components. Trim excess wire and use insulating sleeves on exposed strands to avoid short circuits and maintain safety.
Test continuity across all terminals with a multimeter before plugging into the mains. Verify correct connections to confirm the assembly will operate safely under load.

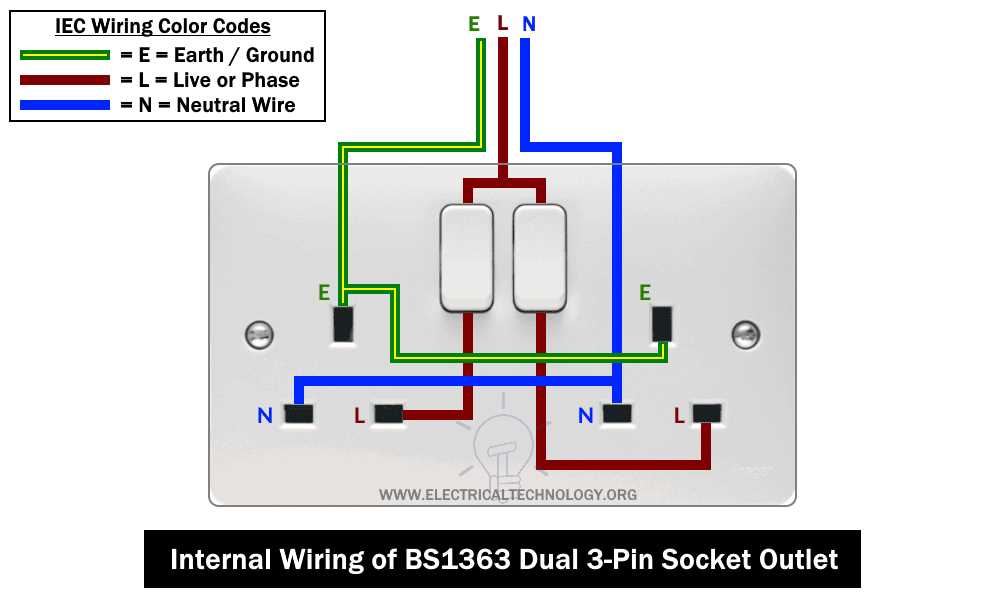

Step by Step Guide to Connecting a Three Conductor Socket
Identify each lead by color before insertion. Use green for grounding, brown for active, and blue for neutral. Confirm insulation is intact and no strands are exposed.
Strip insulation precisely to expose about 5–7 millimeters of copper. Too short a length can lead to loose contact, while too long increases the risk of shorts inside the casing.
Insert each conductor into its terminal fully and tighten screws to hold the wire firmly. Avoid overtightening, which can deform the metal clip and reduce conductivity.
Maintain separation between leads inside the housing. Route wires to prevent rubbing against edges and secure any loose sections with cable clamps or ties to stabilize connections.
Testing and Verification
Use a multimeter to check continuity between terminals before connecting to mains. Ensure that the active, neutral, and earth paths are correctly assigned and show no short circuits.
Perform a functional test by connecting the assembly to a low-power device first. Listen for unusual noises, check for heating, and verify the device operates as expected under load.
Maintenance Tips
Label each conductor at both ends to simplify future adjustments or replacements. Inspect screws and contacts periodically, tightening or replacing components as needed to maintain safe and stable operation.

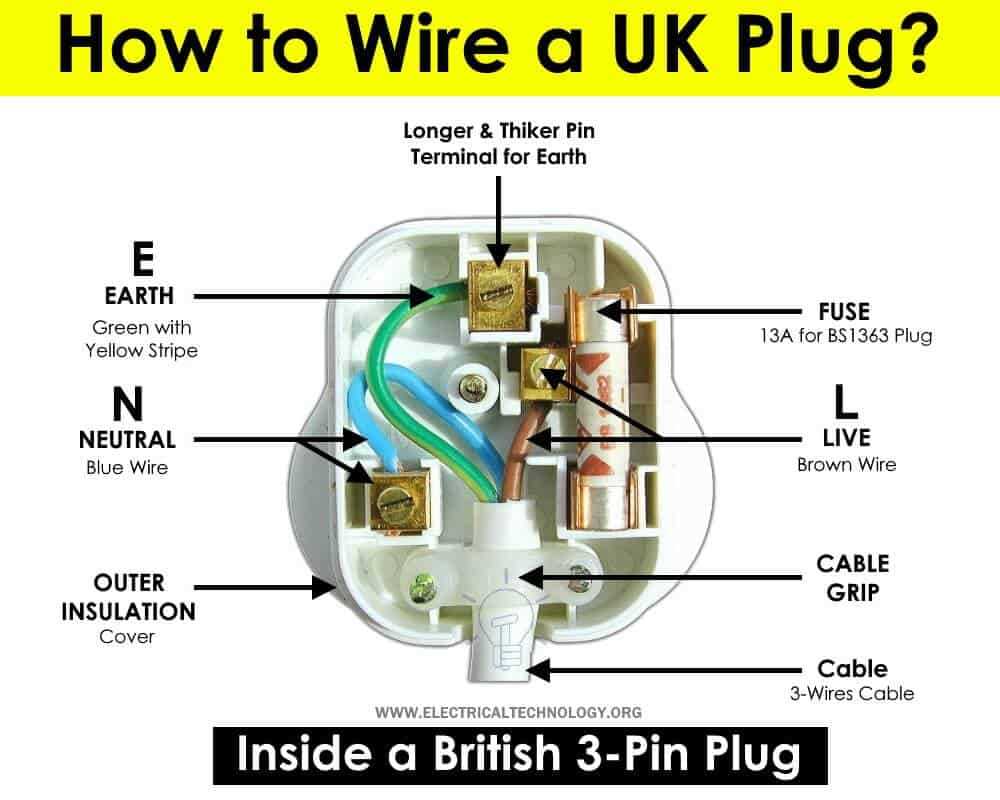

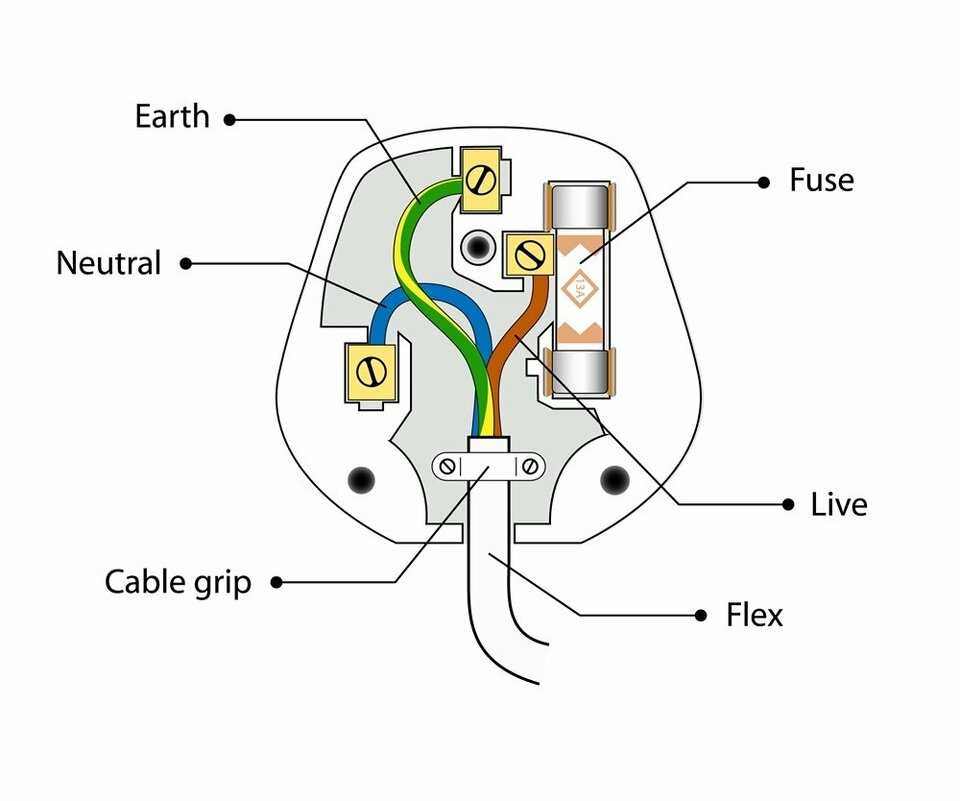

Identifying Live Neutral and Earth Conductors
Assign each conductor by color before making connections. Green or green with yellow stripes is used for earth, brown for active, and blue for neutral. Check that the insulation is intact and that no strands are exposed to avoid short circuits.
Use a continuity tester or multimeter to confirm each conductor’s function. Measure between the earth and active or neutral to ensure isolation, and verify the active and neutral are correctly assigned before securing screws.
Handling and Preparation
Strip the ends of each conductor accurately to expose approximately 5–7 millimeters of copper. Twist the strands tightly to prevent fraying and ensure a stable connection inside the terminals.
Securing and Verification
Insert each lead fully into its terminal and tighten screws without over-compressing. After assembly, test the continuity and check that the earth path is connected properly while active and neutral paths show correct polarity under low-power testing conditions.
