Connect the main power lead to the positive terminal and secure the ground to a clean metal surface. This provides stable voltage flow and prevents short circuits or interruptions in the electrical system. Use a multimeter to confirm correct polarity before tightening connectors.
Follow color codes for all accessory and lighting circuits. Red or brown usually indicates power supply, black or green serves as ground, and blue or yellow lines often control signals for auxiliary functions. Maintaining consistent coding avoids phase errors and misfiring relays.
Inspect all terminals and cable ends before assembly. Clean corroded posts with a contact brush and ensure connectors are free of fraying. Loose or oxidized connections reduce current flow and can cause intermittent operation of components.
Route cables along existing harness paths and secure with ties. Keep signal lines separated from high-current circuits to reduce noise or interference. Proper routing also protects conductors from abrasion or pinching when panels or moving parts are installed.

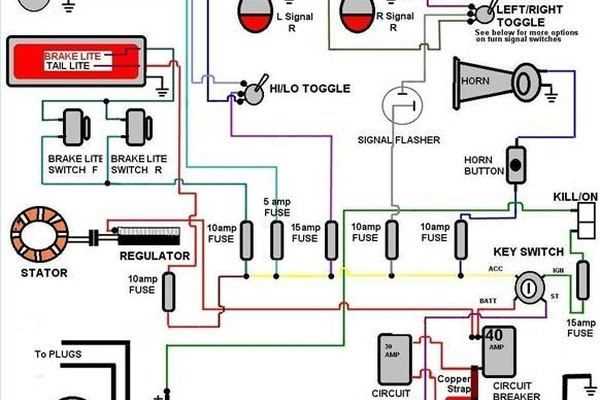

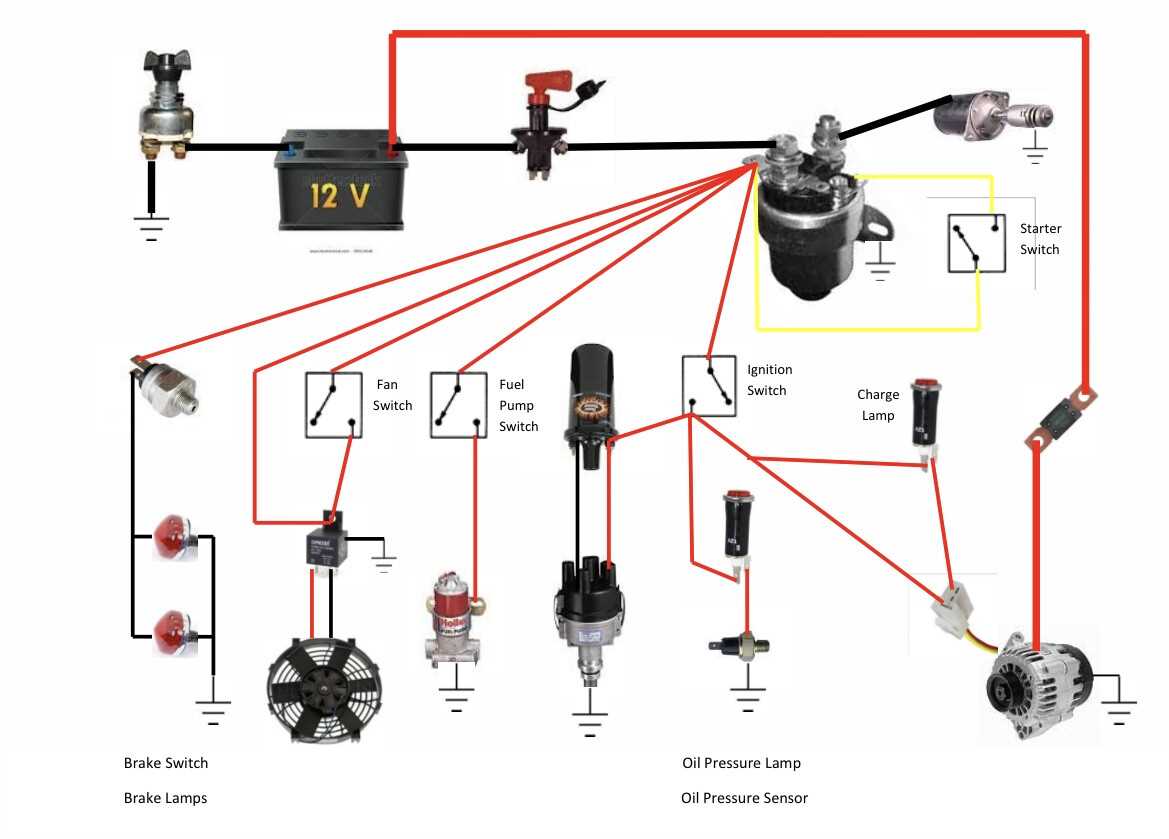

Basic Auto Wiring Diagram
Start by identifying the main power source and grounding points. Connect the positive lead to a clean terminal and secure the negative to a solid metal surface to maintain stable voltage flow and prevent shorts.
Label each circuit according to function and color. Use red for power, black for ground, and blue or yellow for control lines. Consistent labeling prevents mistakes when connecting accessories or troubleshooting faults.
Follow a logical order when linking components:
- Connect ignition and lighting circuits first
- Attach accessory leads such as horns or fans
- Verify continuity before powering the system
Inspect all connectors for corrosion or loose contacts. Clean oxidized terminals with a brush or contact cleaner and ensure each connection is tight. Loose or damaged leads can cause intermittent function or voltage drops.
Route cables along existing harness paths and secure with ties. Avoid sharp edges and moving parts to prevent abrasion. Keep signal lines separated from high-current circuits to reduce electrical noise and ensure stable operation.
Identifying Terminals and Color Codes
Start by recognizing each terminal’s function using labels and printed markings. Positive supply points are often marked with a plus sign or a red indicator, while ground connections typically feature a minus sign or black color. Accurate identification prevents misconnection and voltage faults.
Examine color coding of cables before installation. Standard conventions include red for power, black or brown for ground, blue for control signals, and yellow for auxiliary outputs. Keeping colors consistent simplifies troubleshooting and future maintenance.
Separate high-current circuits from signal lines to avoid interference. Use insulating sleeves or routed channels to maintain distance. Incorrect separation can cause voltage drops or erratic behavior in sensitive devices.
Check each terminal for oxidation or wear before attachment. Corroded contacts increase resistance and reduce current flow. Clean metal surfaces with a contact brush or sandpaper to ensure reliable operation.
Group connectors by function when preparing for assembly. Combine lighting, ignition, and accessory leads in bundles and mark them clearly. This method reduces errors and speeds up installation.
Test continuity of each cable with a multimeter before final connection. Confirm that the path from supply to device is uninterrupted and that ground points are correctly linked. Detecting faults early prevents component damage.
Document your connections for reference. Maintain a record of terminal labels and cable colors used. Proper documentation allows quick replacements, upgrades, or modifications without confusion or guesswork.
