Connect the main power lead directly to a switched 12V source to prevent battery drain when the ignition is off. Ensure the ground terminal is securely fastened to the chassis to avoid intermittent power issues and electrical noise.
Match speaker outputs carefully with the corresponding vehicle speakers. Red wire to front right positive, white to front left positive, gray and green for rear channels. Confirm impedance compatibility to prevent amplifier overload or distortion.
Integrate auxiliary inputs and camera signals through the dedicated RCA or AV ports. Use shielded cables to minimize interference, and route them away from high-current lines. Verify that trigger wires for rearview cameras are connected to the reverse light circuit for automatic activation.
Secure all connectors using proper terminals and insulation to maintain stable performance. Loose contacts can cause flickering displays or intermittent audio loss, particularly in vehicles with vibration-heavy environments.
Check the illumination and key-on memory connections to maintain user interface settings and avoid display dimming. Connect the dimmer wire to the vehicle’s lighting circuit for synchronized brightness adjustment.
Test each channel individually before final assembly. Play audio from multiple sources and engage reverse signals to confirm all functions operate correctly. Adjust gain levels if distortion is observed at high volume.
Label all connections clearly to simplify future troubleshooting or upgrades. Proper documentation reduces installation errors and ensures consistency when replacing the receiver or integrating additional accessories.
Multimedia Receiver Connection and Integration Guide

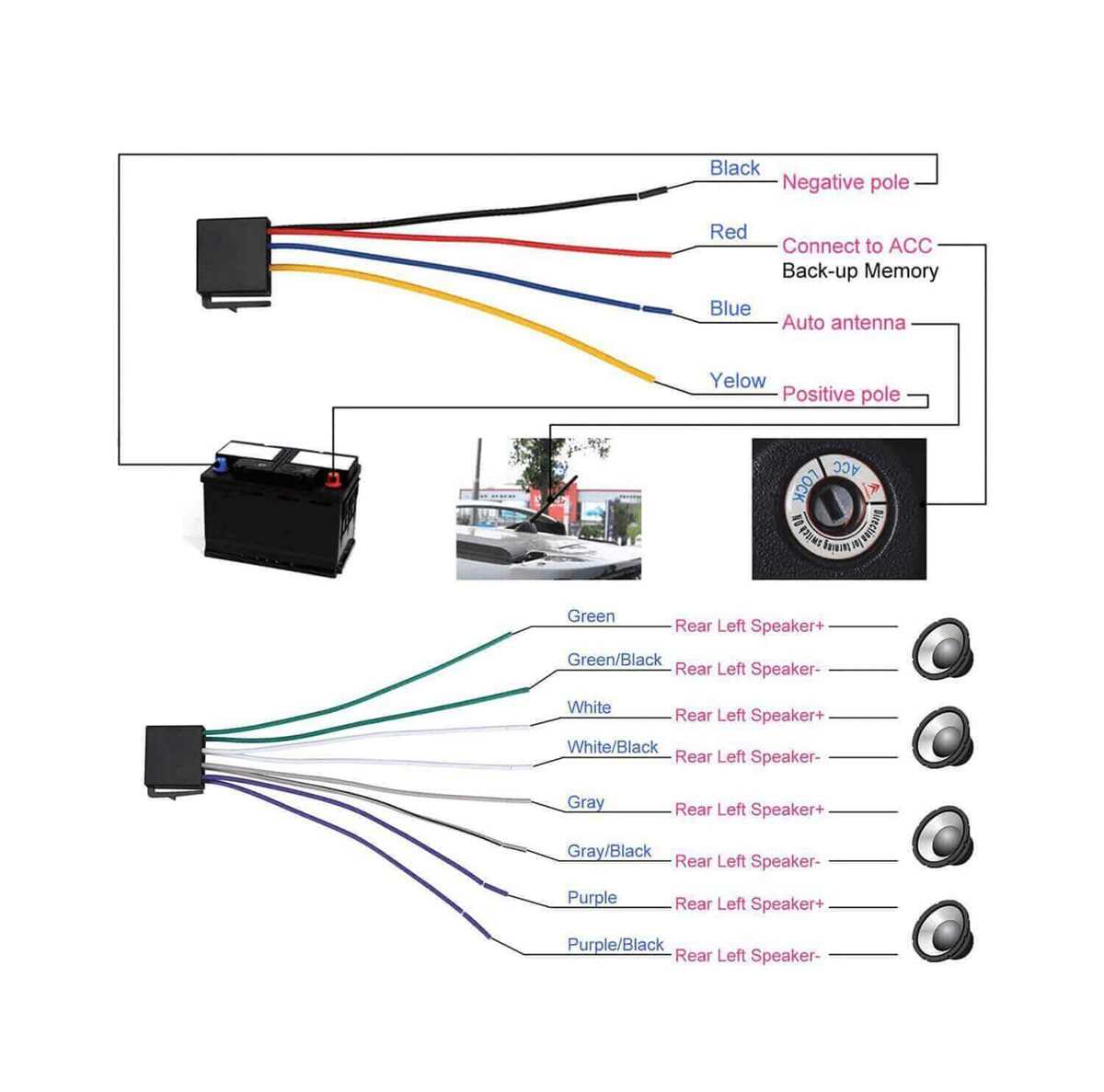

Connect the main power lead to a switched 12V source to prevent battery drain when the ignition is off. Secure the ground terminal to a clean metal chassis point to reduce electrical noise and prevent intermittent power issues.
Align speaker outputs with their respective vehicle channels. Use red and white wires for front speakers, green and purple for rear, ensuring polarity matches to avoid phase cancellation and reduced audio quality.
Integrate auxiliary devices such as backup cameras or external amplifiers through designated AV ports. Shielded cables are recommended, routed away from high-current lines, to maintain signal clarity and prevent interference.
Verify trigger and control connections including reverse light inputs for camera activation and steering wheel control interfaces. Correct connections allow automatic engagement and retain user settings across power cycles.
Secure all connections with proper terminals and insulation. Loose connectors can cause display flicker, audio dropouts, or erratic system behavior, especially in vehicles with vibrations.
Test each channel individually before reassembling the dashboard. Play audio from various sources and engage all integrated devices to confirm correct operation, adjusting gain or balance levels if distortion appears.
Label all wires and connectors to facilitate future maintenance or upgrades. Clear documentation simplifies troubleshooting and ensures consistent integration when replacing or expanding multimedia components.
Pin Configuration and Power Supply Connections

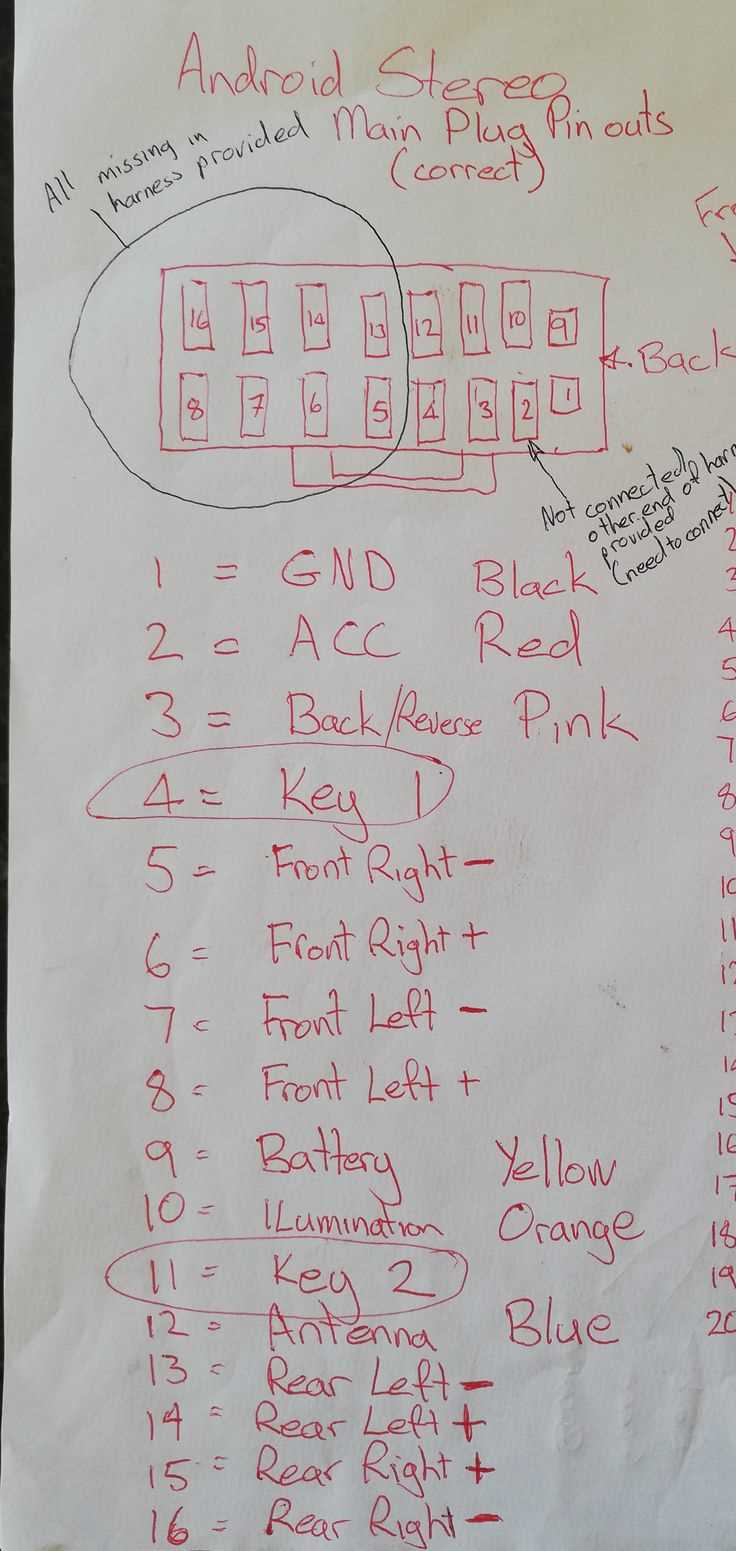

Identify all main pins on the rear connector and verify their functions using the manufacturer’s specifications. Mark power, ground, and accessory pins to prevent misconnection during installation.
Connect the constant 12V line to the battery positive terminal using a properly rated fuse. This ensures memory retention for settings and clock functions even when the ignition is off.
Route the switched ignition lead to a circuit that is live only when the key is in the ON position. This prevents battery drain while allowing the device to power on automatically with the vehicle.
Establish a secure ground to a clean chassis point, free of paint or rust. A solid ground reduces signal noise and protects sensitive electronics from voltage spikes or interference from other components.
Pin connections for peripherals such as USB ports, auxiliary input, and microphone inputs should match polarity and shielding requirements. Incorrect connections can cause audio distortion or device malfunction.
Verify ignition and accessory triggers for external amplifiers and parking brake sensors. Proper connection ensures that video playback and navigation features operate safely according to vehicle status.
Double-check all voltage levels with a multimeter before powering on. Confirming correct readings on each pin prevents damage to internal circuits and ensures stable operation under different load conditions.
Label each cable and pin after connection. Organized identification helps with future maintenance, reduces installation errors, and simplifies integration with additional devices or vehicle upgrades.
