Match each conductor to its corresponding pin on the connector using the standard color sequence. Verify that twisted pairs remain intact to minimize crosstalk and maintain signal quality over long distances.
Trim wires to uniform length before insertion to ensure all pins make solid contact within the connector. Uneven lengths can lead to intermittent connections and packet loss during data transfer.
Use a crimping tool to secure the connector firmly while avoiding excessive force that could damage the conductor or plastic housing. Confirm that the latch locks in place for reliable mechanical retention.
Test each terminated cable with a network tester to check for continuity, shorts, and proper pairing. Detecting faults before installation prevents network instability and repeated rework on wall plates or patch panels.
Step by Step Guide to Connecting Network Cables for Reliable Performance
Arrange each pair according to the specified color sequence to match connector pins accurately. Maintaining the twists within pairs reduces crosstalk and preserves signal clarity over longer runs.
Trim all conductors to a uniform length so they reach the connector contacts fully. Excess or uneven wire can prevent proper contact, resulting in intermittent connections or reduced bandwidth.
Crimp the connector firmly using a proper tool until the latch locks and pins pierce insulation. Avoid bending or compressing the housing, as misalignment can cause weak connections and signal degradation.
Test each completed cable with a continuity and pairing tester to detect open circuits, shorts, or crossed pairs. Ensuring correct termination before installation prevents data loss and network errors in switches or patch panels.

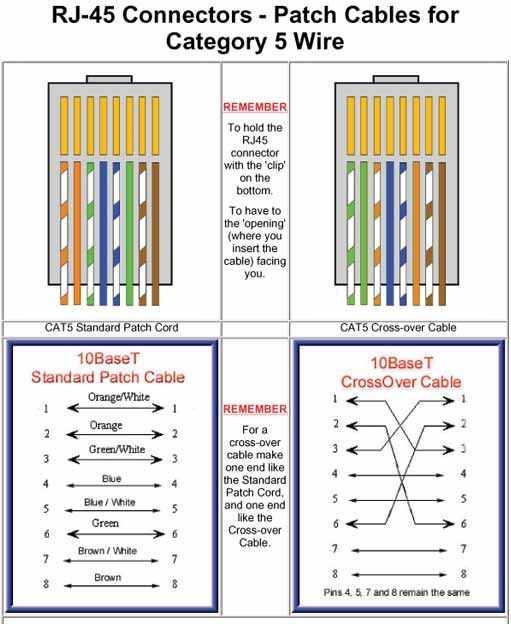

Identifying Pin Assignments and Color Codes for Network Cables
Separate each conductor by color and pair them correctly according to the standard sequence used for termination. Maintaining the correct pairs ensures minimal interference and consistent signal transmission.

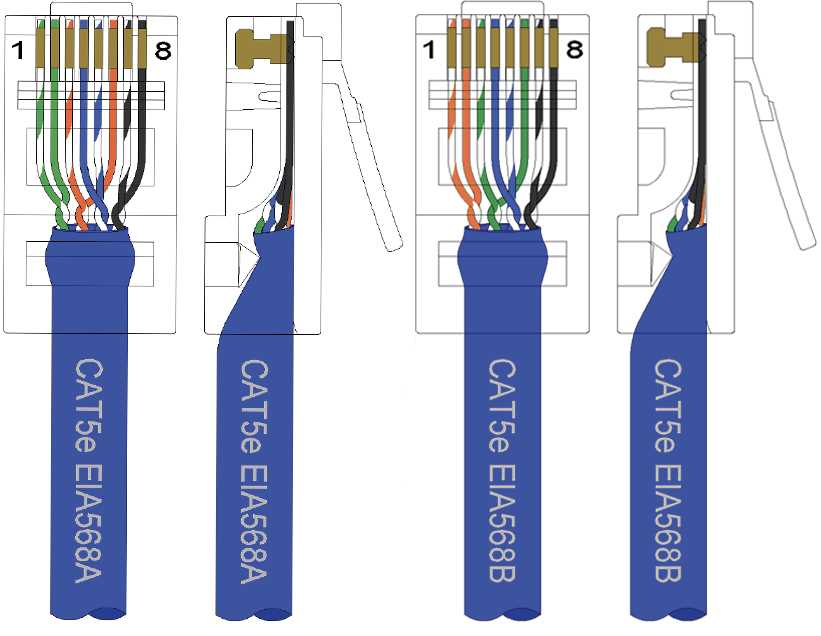

Refer to the T568A and T568B standards for assigning pins to the connector. The difference lies in the position of the green and orange pairs, which affects compatibility with existing network equipment.
- Pin 1: White/Green
- Pin 2: Green
- Pin 3: White/Orange
- Pin 4: Blue
- Pin 5: White/Blue
- Pin 6: Orange
- Pin 7: White/Brown
- Pin 8: Brown
Check the insulation and twists of each pair before insertion. Twists must be preserved up to the connector to prevent crosstalk, especially in high-speed data applications.
Label each end of the cable if preparing multiple connections to avoid confusion during installation. Proper identification simplifies troubleshooting and ensures consistent network performance across all devices.
