Ensure the power source is off before attaching any terminals. Confirm voltage absence with a multimeter to prevent short circuits or damage to components.
Match impedance ratings between the amplifier and output units carefully. Use the manufacturer’s specifications to avoid overloading the system and causing distortion or failure.
Connect positive and negative terminals accurately. Red to positive and black to negative is standard, and reversing these can result in phase cancellation and poor sound quality.
Use secure connectors such as spade terminals or banana plugs for reliable contact. Ensure no exposed metal is present to avoid accidental shorts or electric shock.
Test the signal at low volume first. Monitor for consistent output across all channels and check for any unusual noise or dropouts before full operation.
Guide to Connecting Amplifiers and Speakers
Verify the power source is disconnected before making any connections. Use a multimeter to check that no voltage is present at the terminals.
Matching Impedance and Power
Confirm the output rating of the control unit and the load capacity of each audio device:
- Check ohm ratings to prevent overload.
- Ensure wattage limits are not exceeded to avoid damage.
- Use separate channels for multiple devices to maintain balance.
Terminal Connections
Connect positive to positive and negative to negative using secure terminals:
- Strip wires to proper length to avoid exposed metal.
- Use spade or banana connectors to ensure firm contact.
- Double-check polarity at both ends before powering on.
Selecting Proper Impedance and Power Ratings
Check the output resistance of the control unit before connecting any load. Matching the ohm rating ensures optimal performance and prevents overheating or distortion.
Determine the maximum power capacity of each audio device. Exceeding wattage limits can cause permanent damage to both the control unit and the output component.

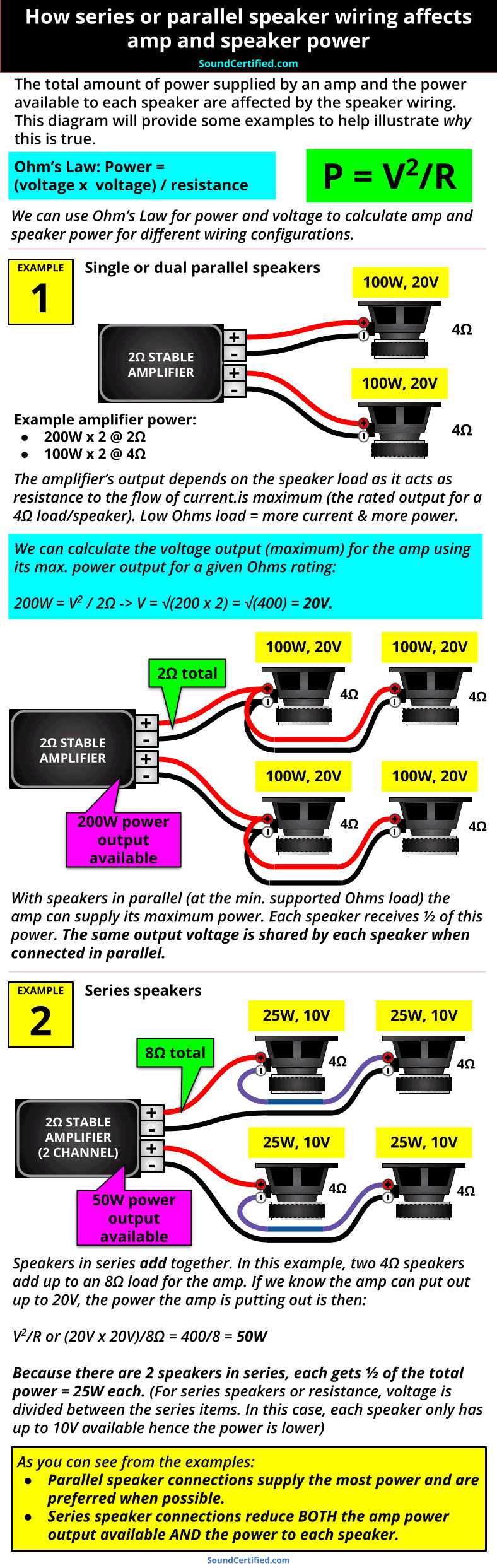

Use devices with consistent impedance when connecting multiple units in parallel or series. Uneven ratings can create unbalanced loads and reduce overall efficiency.
Consider the length of the conductor runs. Longer cables increase resistance, which can require higher power output to maintain the same volume level across all devices.
Separate high- and low-power units on different channels to prevent interference. Use dedicated output terminals to maintain clear signal delivery and reduce crosstalk.
Double-check manufacturer specifications for both control units and output components. Verify that all ratings fall within recommended ranges to avoid stress on any part of the system.
Test under low-volume conditions initially to confirm proper matching. Gradually increase output while monitoring for heat, distortion, or unusual noise before full operation.
