Confirm the amplifier’s output range before attaching the low-frequency driver. Using a load within the specified range prevents overheating and ensures full signal transfer.
Decide on series or parallel configuration for multiple drivers. Series connections increase total resistance and reduce current draw, while parallel arrangements lower resistance and increase current demand.
Maintain correct polarity between amplifier and speaker terminals. Reversing connections can cause phase cancellation, reducing bass impact and overall sound clarity.
Use thick, short cables to connect the amplifier and driver. This reduces voltage drop and heat buildup, allowing high-current signals to reach the speaker without performance loss.
Test at low volume first and monitor for unusual resistance or distortion. Gradually increase output to confirm stable operation and prevent damage to the voice coil or amplifier circuitry.
4 Resistance Bass Driver Connection Guide
Match the driver load to your amplifier’s rated output. Using a load that aligns with the amp’s range prevents overheating and allows maximum signal transfer without distortion.
Choose the correct configuration for multiple drivers:
- Series connection increases total resistance and reduces current demand.
- Parallel connection lowers total resistance and increases current draw.
- Ensure the combined load stays within the amplifier’s safe operating limits.
Verify terminal polarity and secure connections. Positive and negative leads must match between amp and driver to avoid phase issues, and cables should be thick enough to handle peak currents without voltage drop.
Choosing Series and Parallel Configurations
Start by calculating the total load when combining multiple low-frequency drivers. Series connections add each driver’s resistance, while parallel arrangements divide the total load.
Series setups are ideal when you need to increase total resistance and limit current draw from the amplifier. This reduces stress on the amp and protects it from overheating.

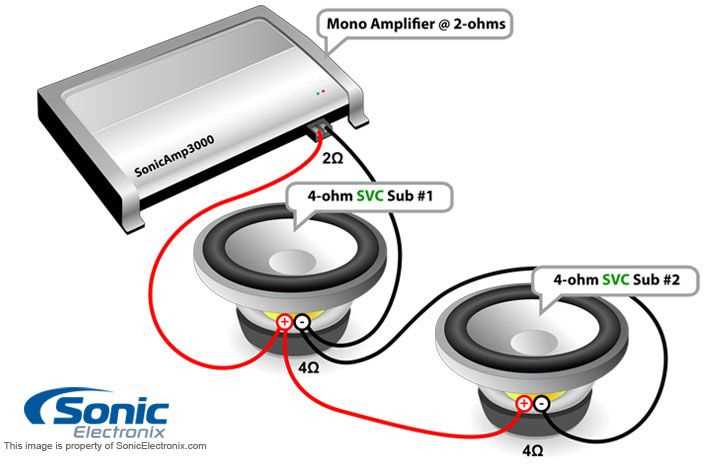

Parallel setups lower total resistance and increase current flow. This provides higher power to each driver but requires careful monitoring to prevent overloading the amplifier.
Mixing series and parallel can balance total load in complex multi-driver systems. Arrange drivers in series first, then connect those series chains in parallel to reach the desired total resistance.
Check individual driver ratings before combining them. Ensure each driver can handle the calculated voltage and current in the selected configuration to avoid voice coil damage.
Maintain consistent polarity across all drivers in series and parallel arrangements. Incorrect connections can cause phase cancellation, resulting in weak low-frequency output.
Use quality connectors and cables that match the current demands. Shorter, thicker conductors minimize voltage drop and heat buildup, maintaining signal integrity across all drivers.
Test the configuration at low volume before full power operation. Measure total resistance and listen for distortion, ensuring the setup operates safely within amplifier limits.
