Before you begin connecting your smart thermostat, ensure you have a solid understanding of your home’s existing setup. Verify the compatibility of your HVAC system with the new control device. The device typically requires connections to certain terminals on the thermostat backplate that control heating, cooling, and fan functions.
Start by locating the terminals in your existing thermostat setup. You’ll typically find labels such as “R,” “C,” “Y,” “W,” and “G.” These labels correspond to different functions like power, cooling, heating, and fan control. For a seamless installation, make sure to label the wires connected to these terminals and remember their positioning.
Once you’ve mapped out the connections, use the terminal markings on your new thermostat to connect each wire to its corresponding terminal. The installation guide that comes with the device will offer precise instructions, and it’s important to follow these steps closely to avoid wiring errors that could damage your system.
If you encounter any issues during installation, make sure the power to your HVAC system is completely turned off before making any adjustments. Also, refer to the troubleshooting section in the guide for potential solutions to common installation problems such as incorrect wiring or mislabeling.
Ecobee 3 Lite Wiring Guide
To begin, ensure that the power to your HVAC system is completely turned off before starting the installation. This is a critical step to prevent any electrical hazards or damage to your equipment.

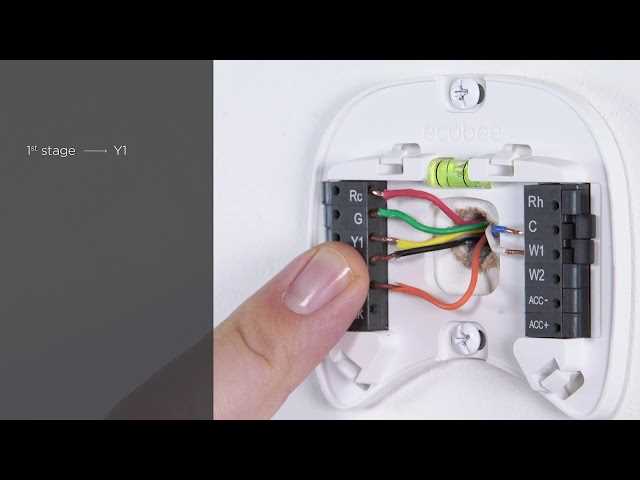

Identify the terminals on the backplate of your new thermostat. Common labels you’ll find include R (power), C (common), W (heating), Y (cooling), and G (fan). Each terminal corresponds to a specific function of your HVAC system, and each wire must be connected to the correct terminal to ensure proper operation.
When you remove your old thermostat, note the wire connections carefully. Take a photo or label the wires to remember where each one was connected. Then, transfer these wires to the new thermostat following the labels provided in the installation instructions.
If you have a wire labeled with a different letter (such as O or B), these correspond to specific heating or cooling modes, like reversing valves in heat pump systems. Be sure to follow the wiring guide for these specific terminals, as incorrect connections can affect system performance.
For systems that include a C wire, ensure it’s connected properly to the C terminal on the new unit. If your system lacks this wire, you may need to use an adapter or install a new C wire to provide continuous power to the thermostat.
Once all wires are connected, securely attach the thermostat to the backplate, turn the power back on, and follow the setup steps on the display screen. This will guide you through configuring your HVAC system settings and connecting to your home Wi-Fi network.
Understanding the Terminals and Their Functions
The most common terminals found on a thermostat are R, C, W, Y, and G. The R terminal is responsible for providing power to the system, typically receiving voltage from the transformer. The C terminal serves as the common wire, completing the circuit and allowing continuous power for the device. The W terminal is connected to the heating system, while Y controls the cooling or air conditioning system. The G terminal controls the fan, turning it on when needed.
Additional terminals may include O or B, which are used for heat pump systems. These terminals control the reversing valve to change the direction of the refrigerant, depending on whether the system is in heating or cooling mode. Some systems may also feature an AUX terminal for auxiliary heating or emergency heating, especially in heat pump installations. Understanding each terminal’s function ensures that you connect the appropriate wires correctly to maintain the system’s functionality.
