To begin installing the audio system, you need to first identify the wiring connections for the power and ground. The positive terminal from the power supply connects directly to the first device in the sequence, while the ground should be linked to a secure metal surface in the vehicle to ensure proper grounding.
Next, connect the speaker wires to the appropriate terminals on the unit. Each wire should be linked to the corresponding speaker–front left, front right, rear left, and rear right. These connections are often color-coded to help with correct identification. Make sure the wires are securely fastened to avoid any loose connections that could affect sound quality or lead to malfunctions.
For additional components such as the auxiliary input or the reverse camera, make sure to identify the proper pins and connectors in your setup. These may require additional adapters or custom wiring depending on the vehicle and specific configuration. Always double-check the instructions to ensure all devices are connected correctly before testing the system.
2008 Silverado Audio System Wiring Guide
Start by identifying the power connections. The positive power wire is typically red, and it should be connected to the ignition or a dedicated power supply in your vehicle. The ground wire, usually black, must be connected to a metal part of the car to complete the circuit. Without a solid ground, the system will fail to operate correctly.
Next, focus on connecting the speaker wires. The front left, front right, rear left, and rear right wires are usually color-coded for easier identification. It’s crucial that each wire is connected to the corresponding speaker to maintain proper sound output. Mismatched connections can cause audio distortion or complete failure of some speakers.
Connecting the Auxiliary Inputs
If you’re adding an auxiliary input or USB port, locate the appropriate pins on your system’s connector. The USB or AUX cable should be inserted into the corresponding port on the head unit. This will allow you to connect external devices like phones or MP3 players for audio playback. Double-check that the connections are secure to avoid connectivity issues.
For vehicles that support a backup camera, the wiring includes a trigger wire that needs to be connected to the reverse light system. This allows the camera to activate when the vehicle is in reverse gear. Locate the reverse light circuit using a multimeter or test light, and ensure the trigger wire is properly attached.
Dealing with Additional Features
If your setup includes features like steering wheel controls or Bluetooth integration, make sure to reference the pinout for these features. These components often require additional wiring adapters. For steering wheel controls, you may need a dedicated interface module to connect the controls to the head unit properly.
Before finalizing the connections, check that all wires are securely fastened and insulated where needed. Loose or exposed wires can lead to short circuits, which may damage the unit or other components. Use wire ties to keep cables neat and out of the way during installation.
After making all the connections, test the system by turning on the vehicle and checking the functionality of each component. Play audio through the speakers, verify that the camera activates correctly when the vehicle is in reverse, and confirm that auxiliary connections work as expected. If any issues arise, retrace the connections and troubleshoot using the system’s manual.

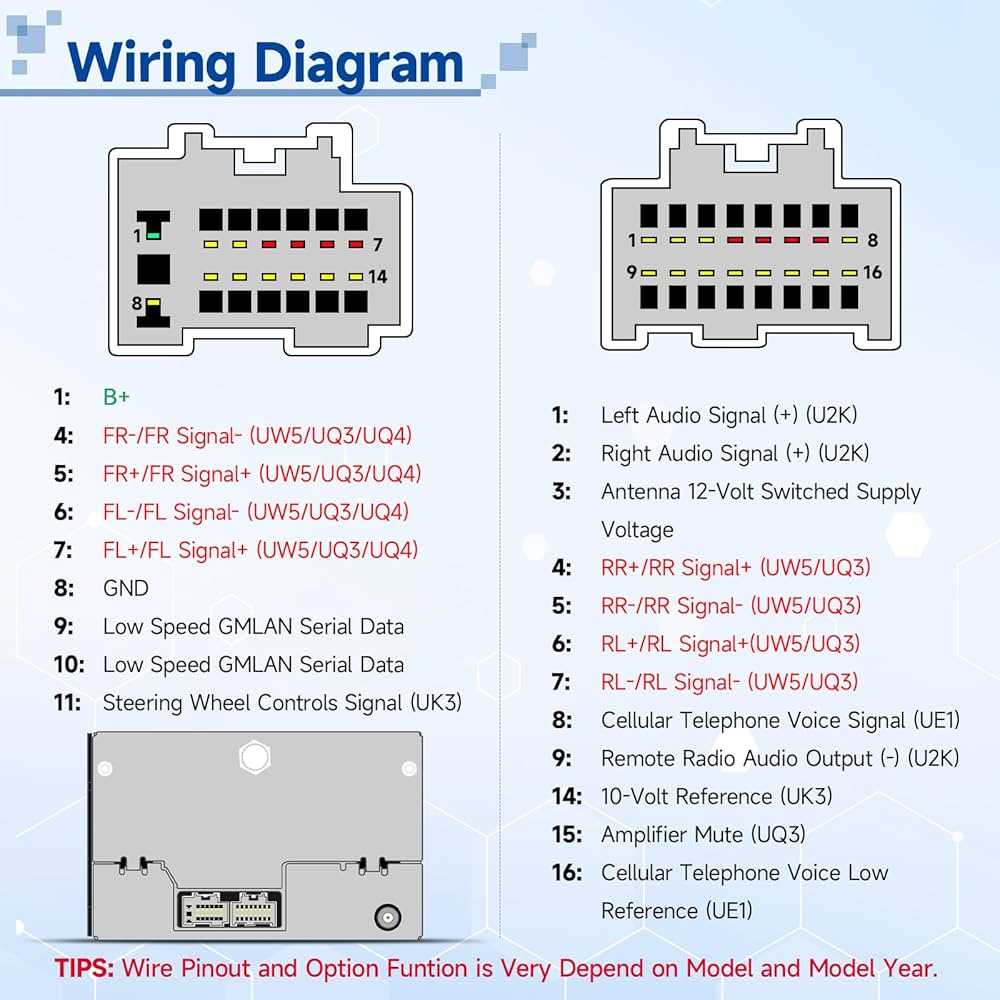

Understanding the Wiring Colors and Connections for 2008 Silverado
To correctly identify the wiring for the audio system, first understand the common color codes used. The power wire is typically red, which connects to the vehicle’s ignition or a dedicated 12V source. The black wire serves as the ground and must be connected to the vehicle’s metal chassis to ensure a stable electrical connection.
Speaker connections are color-coded to help you match them with the corresponding channels. The front left speaker is usually represented by a white wire, and the front right by a gray wire. The rear left speaker often uses a green wire, while the rear right is typically represented by a purple wire. Always double-check these color codes to prevent miswiring, which could cause sound distortion or no sound at all.
If you’re adding features like a backup camera or steering wheel controls, these will require specific wiring. The backup camera’s trigger wire is usually connected to the reverse light circuit, often identified by a yellow or orange wire. Steering wheel controls may require a separate interface module, and the wiring may include a blue or brown wire, depending on the module used.
For auxiliary input connections, the wire is typically labeled as “AUX” and can be either a 3.5mm jack or RCA connectors. Make sure to connect these to the corresponding input port on the unit. The USB cable, often marked with “USB”, should be routed to the appropriate connection point on the receiver for media playback.
It’s also important to note that some vehicles may have additional components, such as amplifiers or subwoofers, which will require their own set of connections. These can usually be identified by the extra power and speaker wires and should be connected according to the manufacturer’s instructions to ensure optimal performance.
