Start by choosing a reliable power source, such as a stable 12V adapter, which is a standard choice for smaller home and outdoor setups. To manage the voltage, incorporate a voltage regulator if necessary, ensuring all components receive the correct input without fluctuations.
The next step is selecting suitable resistors and transistors to regulate current flow through the components. Properly calculating the current requirements is key to avoiding damage to LEDs or other light sources. Make sure to use current-limiting resistors to protect the lights from overcurrent, which could reduce their lifespan.
For displaying your setup, connect each light element to a parallel wiring system, ensuring uniform power distribution. Use diodes for polarity protection, and be mindful of the total power draw to avoid overloading the supply unit.
After wiring, test the system for proper functionality. Use a multimeter to check for any voltage drops or faulty connections. Troubleshoot by confirming the connections and testing individual components before final assembly.
12V Illumination System Design
Begin by selecting an appropriate power source that can deliver stable voltage for the entire setup. A regulated power adapter that provides a constant output voltage of 12V ensures consistency, preventing flickering or dimming lights. If using a battery, ensure it has enough capacity to support the entire load of the system without depleting too quickly.
The next step is choosing the correct resistors to control the current. Each lighting element will have specific requirements depending on its rating. Use Ohm’s law to calculate the necessary resistance for each light and protect the components from excessive current. A current-limiting resistor is crucial to prevent overloading the lights.
After deciding on the power and resistance, proceed to design the wiring. Connect the components in parallel so that each light receives the same voltage while allowing independent control. Use proper gauge wire to handle the current, avoiding overheating and ensuring long-term reliability.
To protect against potential damage from power surges or incorrect polarity, add diodes to the circuit. These components will prevent reverse current from flowing through the lights and will shield against voltage spikes that could occur when the system is powered on or off.
Lastly, test the entire system before final installation. Use a multimeter to check the voltage across each component and verify that there are no power drops. Inspect the circuit for heat buildup during operation, which could indicate a fault or improper component ratings.
How to Build a Simple 12V Illumination System
To begin, choose a reliable power source capable of supplying constant voltage. A common option is a 12V DC adapter, which can provide stable current for the entire setup. If using a battery, select one with sufficient amp-hour rating to ensure the system runs for the desired duration without frequent recharges.
Choosing Components

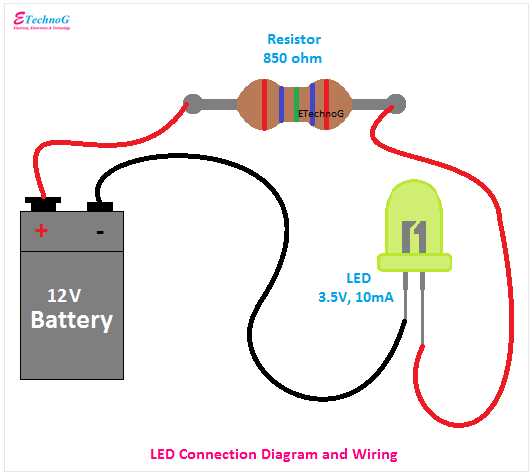

The key components you need include LEDs, resistors, and wires. Choose LEDs rated for the desired voltage, ensuring they can handle the required current. Then, calculate the resistance needed to limit the current through the LEDs, using Ohm’s law: R = (V_source – V_LED) / I_LED, where V_source is the supply voltage, V_LED is the LED voltage drop, and I_LED is the LED current.
Assembling the Setup
For simplicity, wire the LEDs in parallel. This allows each LED to receive the same voltage while keeping their current draw independent. Use appropriate gauge wire to handle the load and avoid overheating. Ensure that you include current-limiting resistors in series with each LED to prevent overcurrent that could damage the components.
Once all components are wired, connect the system to the power supply and check the connections. Use a multimeter to verify that each LED is receiving the correct voltage and current. If any part of the system is too hot or not working correctly, double-check the wiring and component ratings.
Finally, secure the setup in a protective enclosure to prevent accidental shorts or damage. If this system is for an outdoor application, ensure that all components are properly insulated and weatherproofed to prevent damage from moisture or environmental factors.
