For accurate integration of an aftermarket audio head unit, verify the pin assignments on the factory connector harness before making any connections. Focus on the power, ground, and speaker leads to prevent shorts or blown fuses.
Color coding is critical: red wires carry switched ignition power, yellow wires maintain constant 12V, and black wires are dedicated grounds. Left and right speaker channels are usually paired with white, gray, green, and purple leads, with solid colors for positive terminals and striped for negative.
When replacing the head unit, test each channel individually using a low-voltage probe or a 12V test light to confirm proper routing. This avoids miswiring that can damage internal amplifiers or speakers, ensuring a stable and clean signal transfer across the system.

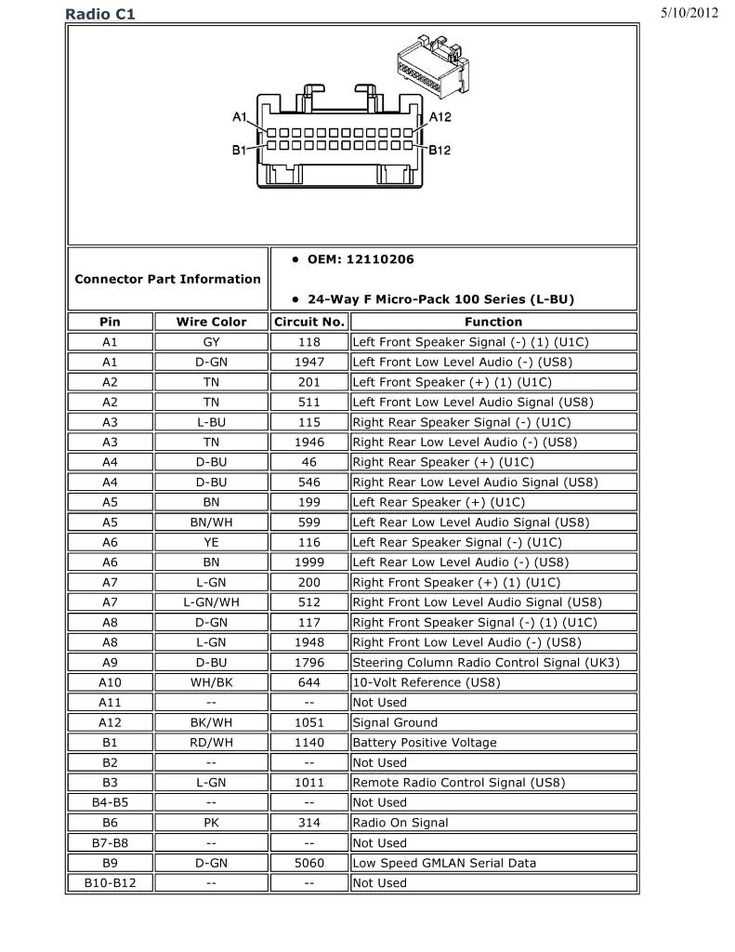

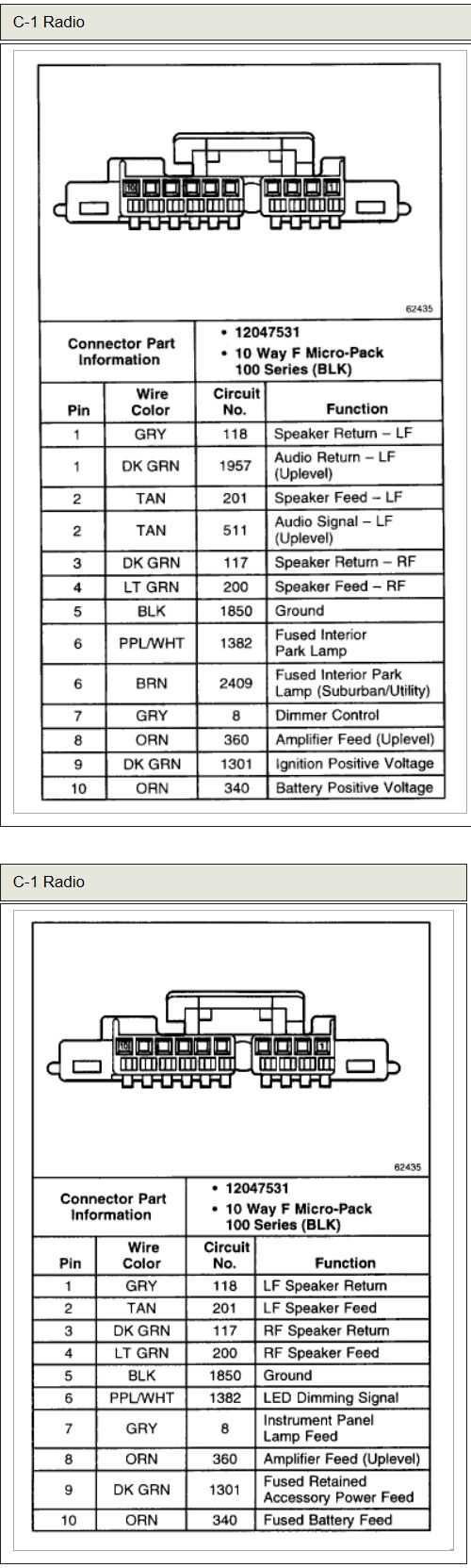

2002 Silverado Audio Connection and Pin Mapping Guide
Connect the aftermarket audio head directly to the factory harness by confirming each lead’s function. Red wires supply switched 12V, yellow leads carry constant 12V, and black wires are designated grounds. Misidentifying these connections can result in blown fuses or unit failure.
Speaker channels follow a clear color pattern: white and white/black for front left, gray and gray/black for front right, green and green/black for rear left, and purple and purple/black for rear right. The solid color represents positive, striped represents negative.
For vehicles equipped with factory amplifiers, signal routing must be verified before connection. The preamp outputs from the radio should match the amplifier inputs exactly to maintain channel integrity and avoid distortion or clipping.
Grounding is critical. Ensure the black lead is securely attached to a clean metal chassis point. Poor ground connection often causes intermittent audio dropouts and static interference across all speakers.
When connecting power leads, isolate the switched 12V and constant 12V lines to prevent current feedback. Using inline fuses rated at 10–15 amps protects the head unit and connected devices during installation.
Pin mapping for auxiliary inputs and CD changer ports varies with trim packages. Consult the factory harness labels for correct identification. Incorrect connections can result in inactive inputs or unintended activation of other components.
Test each channel independently using a multimeter or low-voltage probe before final assembly. This ensures that positive and negative terminals are correctly aligned and that all channels function properly without short circuits.
Finally, secure all connections with high-quality crimp connectors or soldering, and use heat shrink tubing to insulate exposed leads. This prevents corrosion and maintains a reliable audio system over time, avoiding intermittent issues and potential damage to the vehicle’s electronic components.
Locating Factory Connectors and Identifying Wire Colors

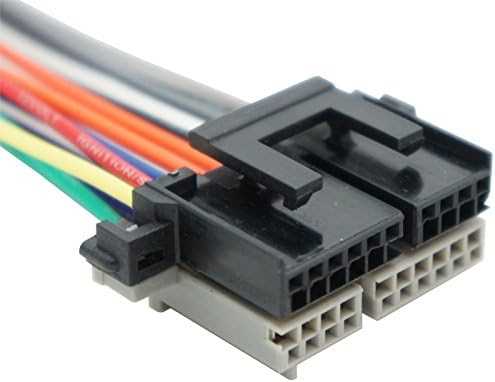

Access the main harness behind the dashboard by removing the radio trim panel. Factory connectors are usually clustered near the mounting bracket and can be distinguished by their keyed plastic housings.
Color codes follow a consistent pattern. Yellow leads carry constant 12V, red leads provide switched 12V, black leads are ground, and blue leads often control amplifier or power antenna signals. Verify each wire with a multimeter before making connections.
Speaker outputs are marked with solid and striped patterns. Solid colors indicate positive terminals, while stripes mark negative. Front left uses white/white-black, front right gray/gray-black, rear left green/green-black, and rear right purple/purple-black.
Auxiliary and accessory connectors are typically smaller and located beneath the main harness. Pin labels or imprints on the plastic housings help identify their functions for devices such as CD changers or external media inputs.
When tracing wires, gently pull back insulation sleeves to inspect color markings. Do not cut or strip wires unnecessarily, as intact insulation preserves signal integrity and reduces the risk of shorts.
For vehicles with factory amplifiers, signal leads may be routed through the amplifier connector. Check for color-coded RCA-style cables or labeled terminals to ensure proper channel assignment before connecting aftermarket devices.
Secure all harnesses using clips or cable ties to prevent movement and wear. Loose connectors or exposed wires can cause intermittent sound issues or electrical faults, so proper positioning and insulation are critical for reliable operation.
