Attach the main power lead directly to the battery positive post using 14-gauge or thicker wire. Ensure terminals are clean and tightened to prevent voltage drops during engine operation. Route the cable away from high-current lines to avoid interference with signal accuracy.
Connect the signal input wire to the ignition coil negative or pickup sensor, matching the correct color code–often green or white. Avoid splicing into unrelated circuits, which can cause erratic needle movement or false readings.
Verify the ground connection between the gauge casing and chassis. Remove paint or corrosion from the mounting surface and secure a short, heavy-gauge wire if necessary to maintain stable current flow.
Check connectors and terminals for bent pins or oxidation. Apply dielectric grease to prevent moisture infiltration and ensure consistent voltage signals, especially in high-vibration environments like motorcycles and off-road vehicles.
Test the system by measuring voltage at the gauge terminals with the ignition on. Expect stable readings between 12 and 14 volts on the supply line, and confirm smooth needle response by starting the engine and observing RPM changes under light throttle.
Wiring a Tachometer with Terminal Connections and Signal Troubleshooting
Connect the main positive lead directly to the battery using a 14-gauge or thicker wire. Tighten the terminal securely and clean any corrosion to prevent voltage drops that could cause inaccurate readings.
Attach the signal input wire to the ignition coil negative or the pickup sensor, following the correct color coding, typically green or white. Avoid routing it near high-current lines to prevent interference and erratic needle movement.
Check the ground path by securing the gauge casing to the chassis or engine block. Remove paint and corrosion at the contact point and use a short heavy-gauge wire if the original connection is weak.
Inspect all connectors and terminals for damage or oxidation.
- Look for bent pins
- Check for loose plugs
- Apply dielectric grease to prevent moisture
Measure voltage at the supply and signal terminals with a multimeter. Expect 12 to 14 volts on the main line with the ignition on, and confirm that the signal wire carries pulses corresponding to engine RPM.
Test the needle response by starting the engine and observing changes at idle and under light throttle. If readings fluctuate or the needle jumps, check for loose connections, worn insulation, or nearby sources of electrical noise.
For persistent issues, isolate the signal input from other wires and retest. Replace any connectors that show corrosion or intermittent contact, and confirm proper grounding to restore accurate and stable RPM readings.

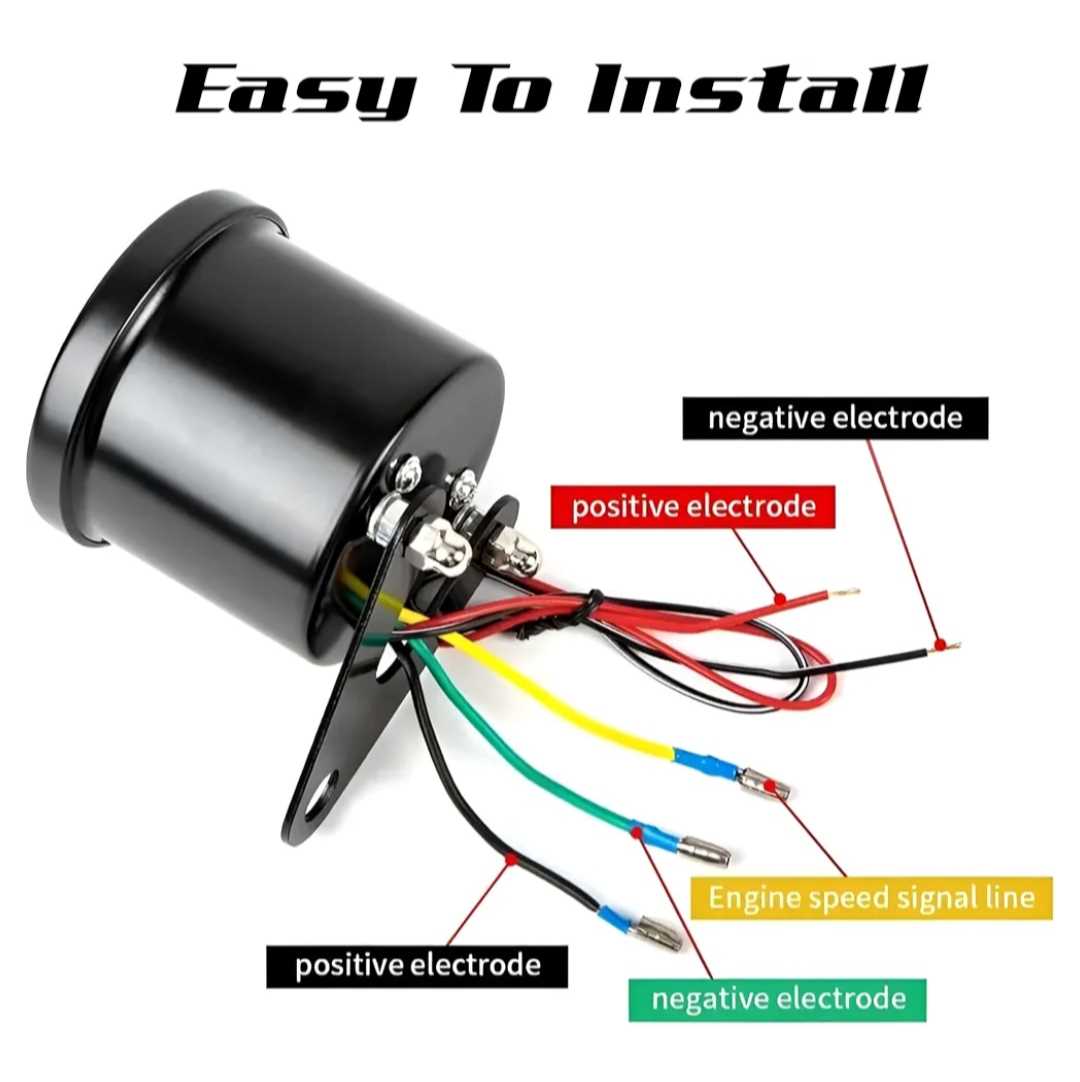

Identifying Tachometer Terminals and Wire Colors
Locate the main power terminal and confirm it uses a thick red or black wire. This connection carries full supply voltage and must be free from corrosion or looseness to maintain stable gauge operation.
Identify the signal input wire typically green or white, which connects to the ignition coil negative or pickup sensor. Ensure it is isolated from high-current lines to prevent interference and inaccurate readings.
Check the ground connection between the gauge casing and the chassis. Clean any paint or rust at the contact point and secure with a short, heavy-gauge wire if necessary. Proper grounding ensures accurate needle response and prevents erratic behavior under load.
