To successfully connect a three-position switch, begin by identifying the terminals that correspond to the common, normally open, and normally closed connections. The middle terminal is typically the common terminal, while the two outer terminals will connect to either the normally open or closed configurations depending on the intended use.
For a basic on/off/on control setup, you’ll connect one side to a power source and the other side to the load. The common terminal is where the power will enter or leave the device. You can use this for switching between different power sources or to control the flow in multiple directions.
Before starting the assembly, ensure the power is turned off to avoid accidental short circuits. Using a multimeter to check continuity can also help confirm proper connections. Once the setup is in place, you can use the switch to toggle between different power paths or control different sections of your system.

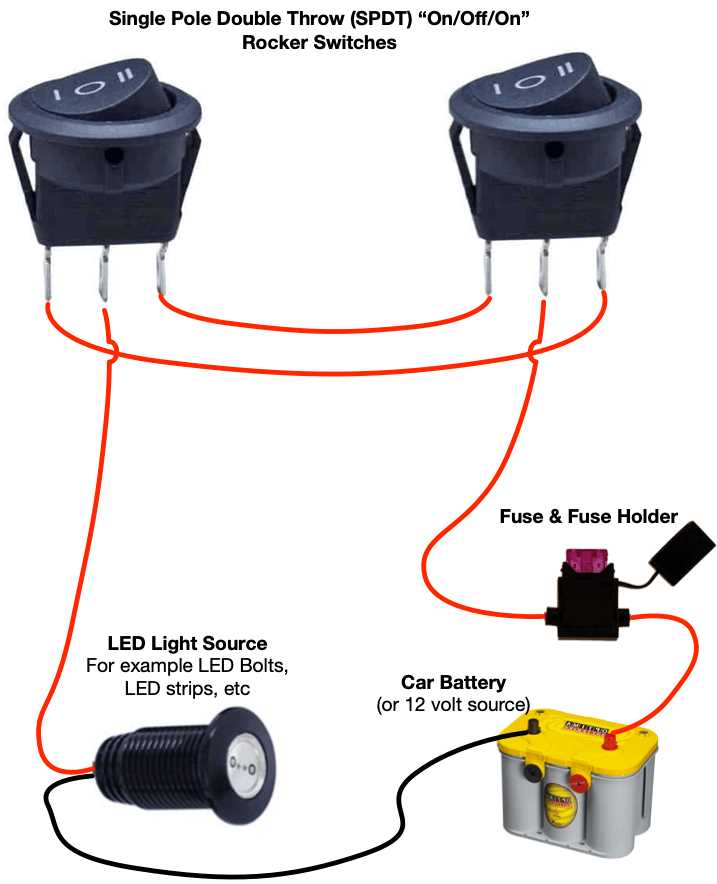

Wiring an On Off On Toggle Mechanism
Start by identifying the key terminals of the mechanism. The middle terminal is the common terminal, which connects to the power supply or the device. The two outer terminals are typically used for either the normally open or normally closed circuits, depending on the desired setup.
When installing, connect the common terminal to the incoming power. Then, link one of the outer terminals to the load that will be activated in one of the positions. The other outer terminal should connect to a different load or function to be controlled in the opposite position. This allows the user to toggle between two distinct configurations.
Ensure that the power is completely off before proceeding with any connections. It’s crucial to verify that all connections are insulated properly to prevent accidental shorts or mishaps. Use a multimeter to check continuity and ensure that the circuit is safe to operate.
For optimal performance, choose an appropriate wire gauge based on the power requirements of the device being controlled. If the load is high, consider using thicker cables that can safely handle the current. If the load is low, a standard gauge may suffice.
After completing the wiring, test the switch by toggling between positions. The current should flow to one load when the mechanism is in one position, and to another when toggled to the opposite side. This simple control method enables you to manage different devices or power sources with ease.
It’s also important to verify that the switch’s design matches the voltage and current ratings for your setup. Double-check the switch’s specifications before connecting it to prevent overloading or damage to the system.
Once the connections are made, finalize the installation by securing the switch in place. Mount it in a box or enclosure to ensure both safety and functionality, and ensure that the toggle mechanism operates smoothly without any obstruction.
Understanding the On Off On Toggle Pinout
To understand the pinout of this component, it’s critical to identify the three main terminals. Typically, the middle terminal acts as the common connection. This is where you’ll attach the power source or main device. The two outer terminals control the switching action.
When connected properly, one of the outer pins will be connected to a load or device when the mechanism is toggled to one position. The other outer pin will link to another device or function when switched to the opposite side. Each position allows control over a different circuit or feature.
The pinout configuration will depend on the specific application you are working with. Commonly, for circuits that require alternating power flow, the middle pin will connect to the power input, while the outer pins are used to direct that power to either one of the two output circuits.
It’s important to verify that each terminal has been correctly identified. If the middle pin is misconnected, you will not achieve the desired functionality. Always double-check the configuration and the flow of current when testing to avoid any circuit failure or damage.
Identifying Terminal Functions
In many cases, the center pin is labeled as the “common” or “input,” while the outer pins are labeled as “output 1” and “output 2.” Understanding these labels simplifies the process of making accurate connections. For instance, if you are wiring a device that alternates between two different functions, the two outer terminals would be connected to those functions, and the common terminal would provide the power.
Once you’ve correctly connected the pins, conduct a final test by toggling the mechanism. Each click of the mechanism should direct the power flow to one of the outer terminals, ensuring that the two different circuits or devices function as intended. Confirm that there is no short circuit or incorrect wiring that could affect performance.
