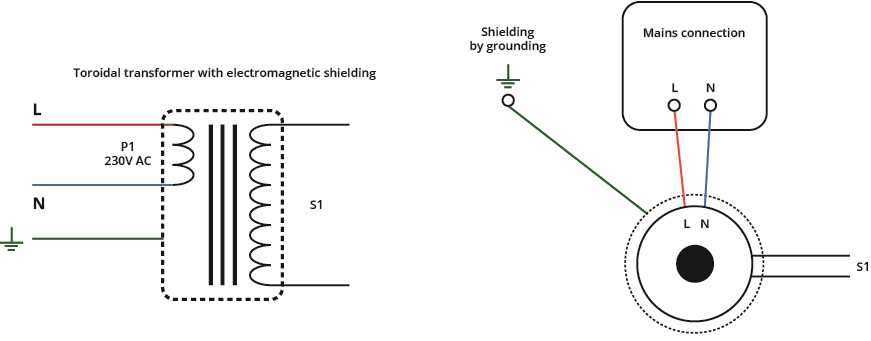

To begin setting up a power step-down device, ensure that the primary and secondary windings are correctly identified. The primary winding connects to the input power source, while the secondary side connects to the load, such as an appliance or system requiring a lower voltage.
Next, connect the live and neutral wires to their respective terminals on both sides of the device. Ensure these connections are tight and secure to avoid any risk of sparking or overheating. It’s crucial that the power source is properly matched to the voltage rating of the device.
Double-check all grounding points. Attach the ground wire securely to the chassis or ground terminal to prevent electrical shocks. A solid ground connection ensures safety during operation and helps avoid potential electrical faults.
Once the connections are made, use a multimeter to verify the integrity of the setup before powering on. This test will ensure that the device is wired correctly and is operating safely. It’s always recommended to start the system at low power to monitor for any signs of improper functioning.
How to Wire a Power Conversion Device for Single-Phase Applications
For single-phase systems, start by identifying the primary and secondary terminals. The primary side will connect to the incoming power source, while the secondary side delivers the reduced voltage to the load. Ensure that the correct number of turns is used for each coil to match the voltage requirements of the system.
Making Secure Connections
After confirming the voltage ratings, proceed to connect the live and neutral wires to the respective terminals. Make sure each wire is stripped and inserted securely to avoid any loose connections, which could lead to overheating or poor performance. Tighten all screws firmly and check the insulation to prevent accidental short circuits.
Testing the Setup
Once all connections are complete, verify the voltage output on the secondary side using a multimeter. Start with a low load and gradually increase to ensure the system functions within the expected parameters without any issues. Any irregularities in voltage or excessive heating should be addressed immediately.
Common Errors to Avoid When Wiring a Power Conversion Device
One of the most frequent mistakes is incorrectly identifying the primary and secondary connections. Failing to connect the correct wires can cause overloading or malfunction. Double-check the device specifications and ensure that you are connecting the live and neutral wires to the right terminals. Mismatched connections can lead to damage, overheating, or even fire hazards.
Incorrect Grounding
Another common error is neglecting proper grounding. A poor or missing ground connection can lead to unsafe operation and increased risk of electrical shock. Always connect the ground wire to the appropriate terminal, and ensure it is securely attached to prevent any leakage of electricity that could cause harm.
Loose Connections and Insulation Issues
Loose connections are a leading cause of power loss and overheating. Ensure that all terminals are tightened securely, and the wires are properly insulated. Exposed or frayed wires can cause short circuits, making it important to check for any wear and tear on the wire insulation before powering up the system.
| Error | Impact | Solution |
|---|---|---|
| Incorrect Wire Connections | Overloading, short circuits, system malfunction | Verify the primary and secondary terminals and make proper connections |
| Poor Grounding | Electrical shock, fire hazards | Ensure proper connection of the ground wire |
| Loose or Unsecure Connections | Overheating, power loss, potential damage | Tighten terminals and inspect wire insulation for integrity |
Testing and Troubleshooting Power Conversion System Configurations
Begin by checking the voltage on the output side of the power step-down unit. Use a multimeter to measure the voltage and compare it with the expected value for proper functionality. A reading outside the expected range indicates an issue with the setup or the components. If the output voltage is significantly low or zero, check the primary side connections for any loose or disconnected wires.
Verify Continuity and Connections
Next, check the continuity between the primary and secondary windings using a continuity tester. If the test shows no continuity or resistance where there should be, there may be a break in the winding, which requires repair or replacement. Additionally, verify the integrity of the ground connections. A missing or faulty ground can cause instability in operation or electrical hazards.
Inspect for Overheating and Short Circuits
If the system operates but exhibits signs of overheating or produces a faint smell of burning, immediately disconnect power. This could indicate an overloaded circuit, poor insulation, or short circuits in the connections. Inspect the insulation on all wires for any damage or degradation. If you detect any issues, replace the damaged parts and reduce the load on the device.
- Check voltage output using a multimeter.
- Test continuity of the primary and secondary windings.
- Verify grounding for safety.
- Inspect wires for damage or poor insulation.
- Monitor the device for overheating signs or strange smells.
Lastly, perform a final test with the device under normal load conditions. Ensure that the output remains stable and the system operates within safe temperature limits. Any fluctuations in performance should be addressed by recalibrating the system or replacing faulty components.
