Use color-coded leads to match positive and negative terminals before joining cells. This prevents short circuits and ensures stable energy flow during operation.
Check each link with a multimeter to confirm voltage levels across segments. Proper verification reduces the risk of overloading the control unit and extends service life.
Secure all contacts with insulated connectors or heat shrink tubing. Loose connections can cause sparks, uneven current distribution, and premature wear of conductive components.
Arrange modules in a compact layout that minimizes wire length while avoiding tight bends. This setup lowers resistance and helps maintain consistent output under load.
48v Ebike Battery Wiring Diagram and Connection Instructions
Identify the positive and negative terminals on each power module before connecting. Use a color-coded system and mark each lead to prevent accidental reversals that could damage the controller.

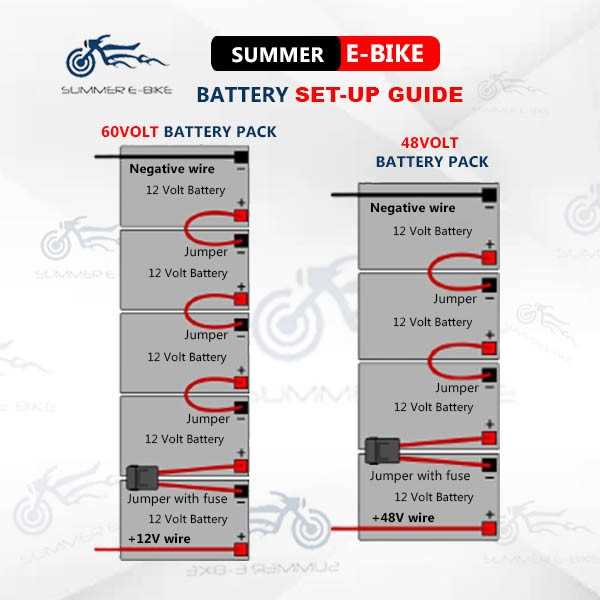

Group cells in series or parallel according to required voltage and current output. Series connections increase potential, while parallel links enhance capacity without altering voltage.
Use proper gauge cables rated for high current loads. Thin wires can overheat, causing insulation failure and reducing overall performance of the energy pack.
Secure junctions with crimped connectors or soldered joints covered by heat shrink. Avoid loose contacts that may spark under heavy acceleration or hill climbs.
Arrange modules compactly while maintaining airflow around each unit. Overlapping or tightly packed cells can trap heat and shorten operational lifespan.
Test each connection with a voltmeter before final assembly. Confirm that each segment matches expected readings and that polarity is consistent across the entire array.
Integrate monitoring and protection units to prevent overcharge, deep discharge, and short circuits. Installing these safeguards ensures long-term stability and reliable power delivery during rides.

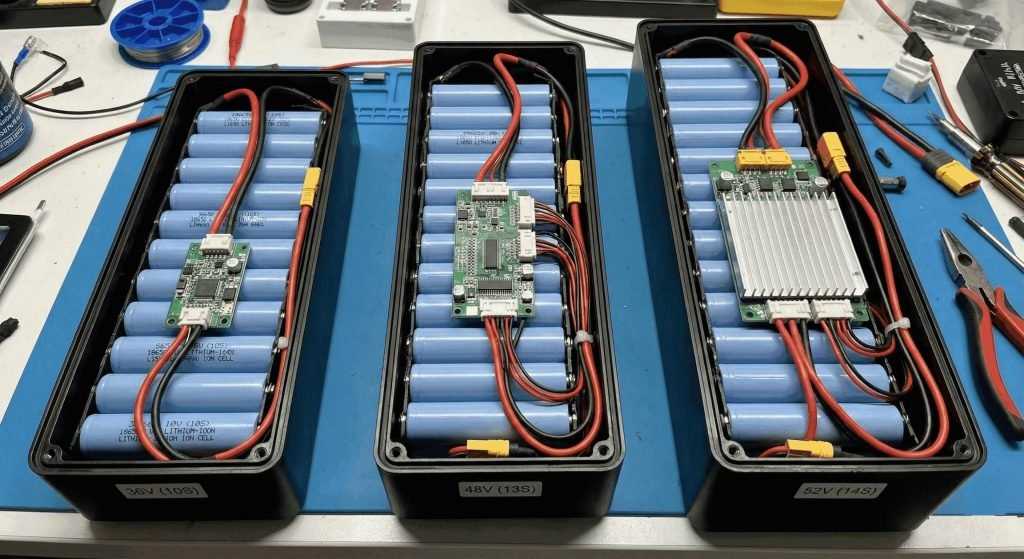

Identifying Battery Terminals and Connector Types
Label each terminal clearly before making any connections. Use a permanent marker or colored tape to differentiate positive and negative ends to avoid accidental short circuits.
Inspect the connector shape to match compatible plugs. Cylindrical, Anderson, and XT60 types are common; each requires proper alignment for secure current flow.
Check pin configuration on multi-cell modules. Some connectors carry balancing leads for monitoring voltage across individual units, which must be preserved for safe operation.
- Single-pin leads transmit main current and must be rated for the total amperage.
- Multi-pin connectors provide additional signals like temperature and charge status.
- Threaded terminals require nuts or bolts to secure the connection firmly.
Test each contact with a voltmeter to ensure continuity and correct polarity before assembly. A reversed or loose connection can damage electronic components instantly.
- Match connectors by type and size to the control unit or charging port.
- Inspect for corrosion and clean contacts with a non-conductive brush or isopropyl alcohol.
- Verify insulation to prevent accidental shorts between terminals and the frame.
Secure all plugs using clips, sleeves, or heat shrink to prevent vibration-induced disconnections during rides or handling. Loose connectors are a common source of power interruptions.
Document each connection in a simple sketch or photo before final assembly. This reference ensures correct reassembly after maintenance or upgrades.
