Start by selecting a suitable power supply for your propulsion system. Choose a battery that matches the required voltage and current ratings. It’s recommended to use a deep-cycle battery for longer operation times and better durability.
Next, connect the positive and negative terminals of the power source to the corresponding terminals on the device. Be sure to use heavy-duty cables capable of handling the current load without overheating. Properly secure each connection to avoid loose contacts that could lead to power loss or malfunction.
Ensure that the system includes a circuit breaker or fuse to protect against overcurrent. The fuse should match the system’s maximum current rating to prevent damage to components in case of a short circuit or overload.
Once all components are connected, check the connections again before testing the system. Use a multimeter to verify that the voltage is within the expected range and that the system is functioning as intended. If any issues arise during the test, check for loose wires or faulty connections.
Proper maintenance is key to ensuring long-term performance. Regularly inspect all electrical components for signs of wear, corrosion, or damage, and clean connections to maintain optimal conductivity. This will help prevent system failures during use.
Connecting the Components of Your Propulsion System
Begin by ensuring the battery is properly connected to the power cables. Attach the positive terminal to the positive cable and the negative terminal to the negative cable. Use high-quality, corrosion-resistant connectors to maintain a solid connection and avoid voltage drops during use.
Next, install a fuse or circuit breaker between the battery and the rest of the components. This safety feature will protect the system from potential overloads and short circuits. Make sure the fuse rating matches the maximum current draw of the entire setup, ensuring optimal protection without causing unnecessary interruptions during normal operation.

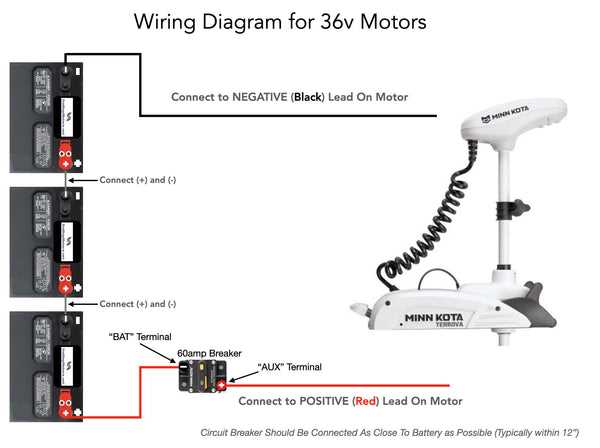

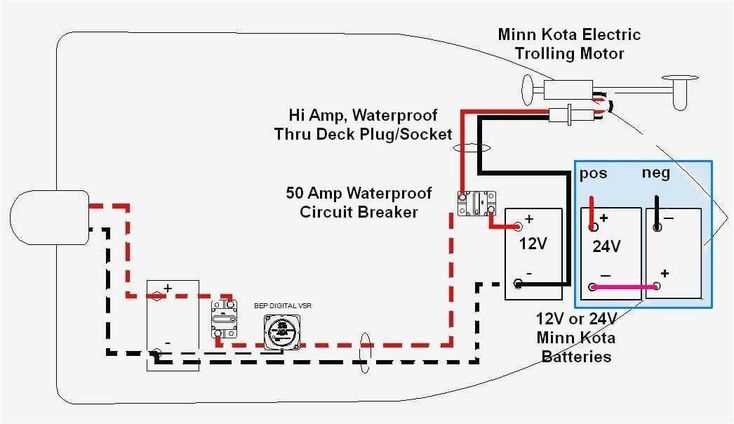

How to Connect a Trolling Motor to a Power Source
Start by selecting a suitable power source, ensuring it matches the required voltage for your propulsion system. A 12V deep-cycle battery is ideal for most applications due to its capacity for longer, more reliable performance.
Attach the power cables to the battery terminals. Connect the positive cable to the positive terminal and the negative cable to the negative terminal. Use heavy-duty cables to handle the current load and ensure a solid, safe connection.
Next, route the cables to the power input terminals of the system. Ensure that the cables are long enough to reach without being stretched. Secure the cables along the boat’s structure using cable ties to prevent them from being damaged or snagged.
Install a fuse or circuit breaker between the battery and the system to protect against overcurrent. Choose a fuse that matches the maximum current the system requires to prevent overheating or potential fire hazards.
Once the fuse is in place, connect the power input terminals to the propulsion unit. Double-check the polarity of each connection. Reversed polarity can lead to malfunction or damage to the system.
After the connections are made, check each terminal for tightness. Loose connections can result in power loss or even cause sparks, creating a safety hazard. Tighten the screws or nuts securely and ensure no exposed wiring remains.
Test the connections by turning on the system and verifying the proper operation. Use a multimeter to check the voltage at the input terminals to ensure everything is working as expected. If the voltage is unstable or incorrect, recheck the connections for issues.
Finally, check the entire setup for any signs of wear or damage. Regularly inspect the connections, cables, and power source to ensure safe and reliable performance, especially before each trip out on the water.
