Use labeled conductors and color-coded wires to ensure accurate connections between multiple control points. Confirm that each traveler and common line is correctly identified before starting any assembly.
Install grounding conductors at every junction box and device location to prevent electrical hazards. Verify continuity with a multimeter before securing terminals to avoid loose contacts.
Arrange cables in a logical path from the power source to the lighting fixtures, maintaining separation between live and neutral lines. Proper spacing reduces the risk of short circuits and simplifies future maintenance.
Test each control position individually after completing connections. Activate one device at a time to check that all switching points operate the lamp as intended, correcting any miswired terminals immediately.

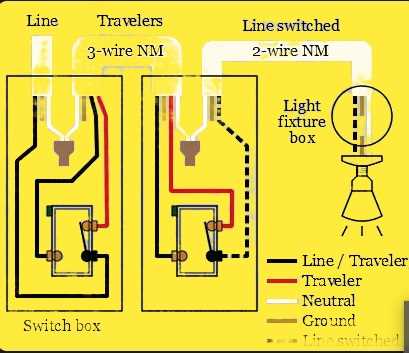

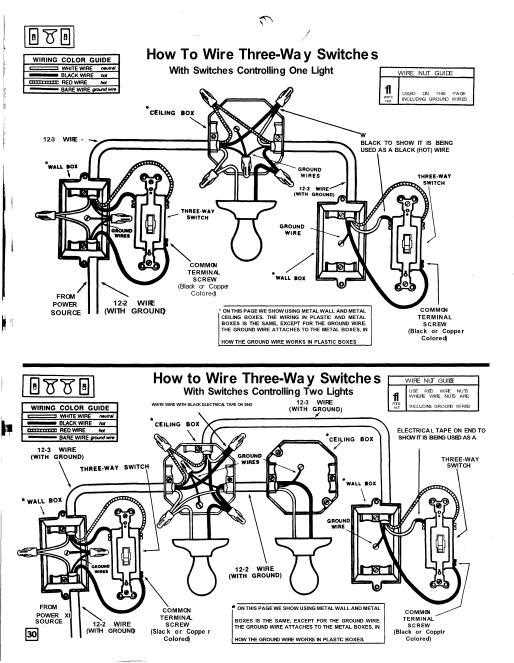

Connecting a Dual Control Light Circuit
Identify the traveler and common terminals on both toggles before making any connections. Use a voltage tester to confirm which line carries current from the power source.
Run two insulated conductors between the control points to serve as travelers. Keep them separated from neutral lines to avoid interference and potential shorting.
Connect the common terminal of the first toggle to the incoming live conductor. This ensures that power reaches the fixtures through either control point.
Attach the second toggle so its common terminal feeds the output to the lighting fixture. Double-check that traveler wires match the corresponding terminals on both toggles.
Secure all connections with wire nuts and wrap exposed copper with electrical tape. This prevents accidental contact and improves durability of the circuit.
Test each control independently by flipping one toggle at a time while observing the fixture. Any inconsistency indicates a swapped traveler or loose connection.
Label each conductor to simplify future troubleshooting or upgrades. Marking live, neutral, and traveler lines reduces errors when modifications or maintenance are needed.
Identifying Conductors and Terminals for Installation
Use a voltage tester to distinguish live, neutral, and traveler lines before connecting any components. This prevents misidentification and reduces risk of short circuits.
Mark each conductor with colored tape or labels to maintain clarity throughout the setup. Red or black can indicate live lines, white for neutral, and another color for traveler conductors.
Inspect the terminals on each toggle device carefully. Most have a common screw, usually darker, and two traveler screws, typically brass or lighter in color.
- Check for tight connections and corrosion.
- Confirm screws are not stripped or loose.
- Note terminal layout to avoid swapping travelers.
Identify the power source entry point at the first device box. Knowing which conductor carries incoming voltage ensures proper routing to the load.
Trace cables between boxes to verify continuity. Use a multimeter to ensure each traveler line connects accurately from the first to the second control point.
- Turn off the breaker before handling wires.
- Confirm each conductor is correctly labeled.
- Test each line for voltage to avoid surprises during installation.
Document terminal assignments with a quick sketch or photo. This reference simplifies future maintenance and prevents errors when adding new fixtures or controls.
