To properly install or troubleshoot the electrical system of snow removal machinery, begin by carefully examining the key components such as the control box, relay switches, and motor connections. Make sure all parts are clean and free from corrosion before proceeding.
Identify the power source that will feed the unit and ensure that all connections are secure. A faulty connection can lead to malfunction, especially in extreme weather conditions. Check that wires are of adequate thickness to handle the load and voltage requirements of the system.
If issues arise, inspect the ground connection first, as poor grounding is a common cause of operational failures. Follow a step-by-step process to trace any faults in the system and repair any broken or frayed wires immediately.
Electrical Setup for Snow Removal Equipment
Check the control box for proper connection to the 12V battery. Ensure that the positive and negative terminals are secure, and the battery is fully charged before starting any installation. A weak battery can lead to underperformance, especially in colder temperatures.
Inspect all connections leading to the motor. Ensure that no wires are frayed or damaged. Use high-quality connectors to prevent issues during heavy use. Pay special attention to the ground wire, as poor grounding can result in malfunctioning components.
Route the power cables through the equipment, ensuring they are kept clear of moving parts. This will prevent damage or interference with the machine’s functionality. Use cable ties to keep the cables in place, avoiding tangles or wear from contact with sharp edges.

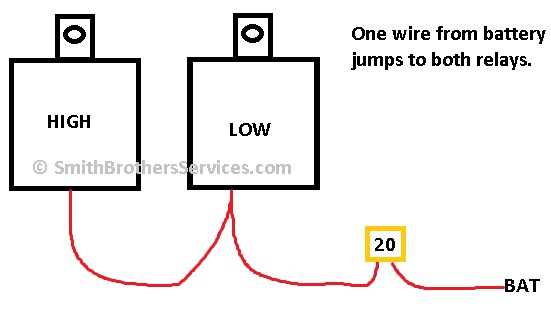

The relay switch is a critical component. Verify that all relay connections are properly secured. A malfunctioning relay can prevent certain functions from working or cause inconsistent behavior. Double-check the wiring to each relay and replace any faulty relays.
Examine the fuse box to ensure all fuses are intact. A blown fuse is a quick and easy fix but can completely disable the system. Replace any blown fuses with the correct amperage rating to prevent further issues. Regularly check the fuses as part of routine maintenance.
If you are wiring a new system, follow the step-by-step process outlined in the manual. Begin by connecting the main control unit to the battery, then proceed to the motor and switches. Make sure each connection is tight and secure before moving on to the next stage.
After installation, test the system thoroughly. Turn on the equipment and operate it through all functions, including raising and lowering the blade. If any issues arise, retrace your steps to verify that all connections are properly secured and in the correct positions.
Understanding the Components of a Snow Removal Electrical System
The control unit is the heart of the system. This component allows the operator to manage all functions, including raising, lowering, and angling the blade. It’s crucial to verify that the control unit is wired to the battery correctly, ensuring that power flows consistently for smooth operation.
The motor is another key part of the system. It drives the movement of the blade and should be connected to the control unit via a secure and insulated connection. A faulty motor or loose connection can result in the blade not responding as expected, so checking the motor wiring regularly is important for proper functionality.
Relays are responsible for directing the electrical current to different components based on the user’s input. A malfunctioning relay can prevent the system from functioning properly, causing the equipment to not respond to control commands. Ensuring the relays are connected securely is necessary for reliable operation.
The ground connection plays a critical role in ensuring the electrical current flows properly through the system. A poor ground connection can lead to intermittent performance or complete failure of the equipment. Always inspect the grounding wire for corrosion or damage and replace it if needed to avoid electrical issues.
