Step-by-step Instructions for Connecting a Transfer Switch Safely

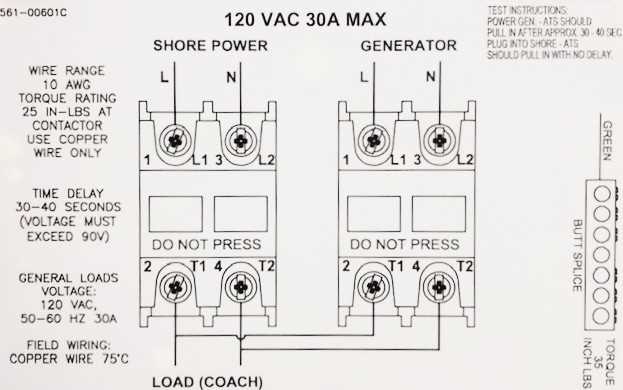

wiring diagram for a transfer switch

Ensure the main and auxiliary power sources are completely isolated before making any connections. Verify voltage levels with a multimeter to prevent overloading circuits and damaging components.

Use correctly rated breakers and fuses to protect against short circuits. A 30A breaker is suitable for small residential setups, while larger installations may require 60A or higher.

Organize all conductors by phase and polarity to avoid accidental reverse connections. Color-coding wires simplifies identification and reduces the risk of operational errors.

Mount the control unit on a stable, non-conductive surface to minimize vibration and prevent accidental contact with metal surfaces. Keep at least 6 inches of clearance around terminals for easy access and maintenance.

Connecting a Backup Power Control Unit

Begin by confirming the main and generator feeds are de-energized before touching any terminals. Use a multimeter to verify absence of voltage and ensure safety throughout the installation.

Install breakers and fuses at each power source to prevent overload and short circuits. For residential units, a 30A breaker is common, while larger loads may require 60A or 100A depending on total amperage.

Establishing Conductor Paths

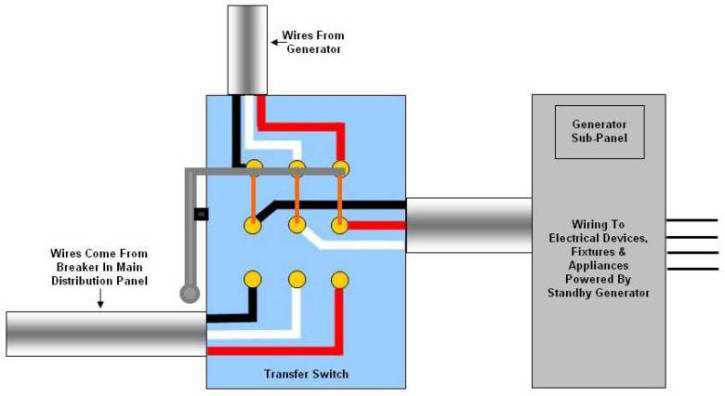

wiring diagram for a transfer switch

Route phase and neutral wires separately and label each line clearly. Keep connections tight and secure to prevent arcing, and maintain proper insulation distance between conductors.

Connect the output terminals to the load panel following the same color-coding conventions. This ensures correct current flow and simplifies troubleshooting if an issue arises during operation.

Final Checks and Testing

Test each source individually before engaging both. Observe voltage at load points and ensure breakers operate correctly. Adjust connections as needed to maintain stable and safe performance of the control unit.

Selecting Proper Components for a Backup Power Setup

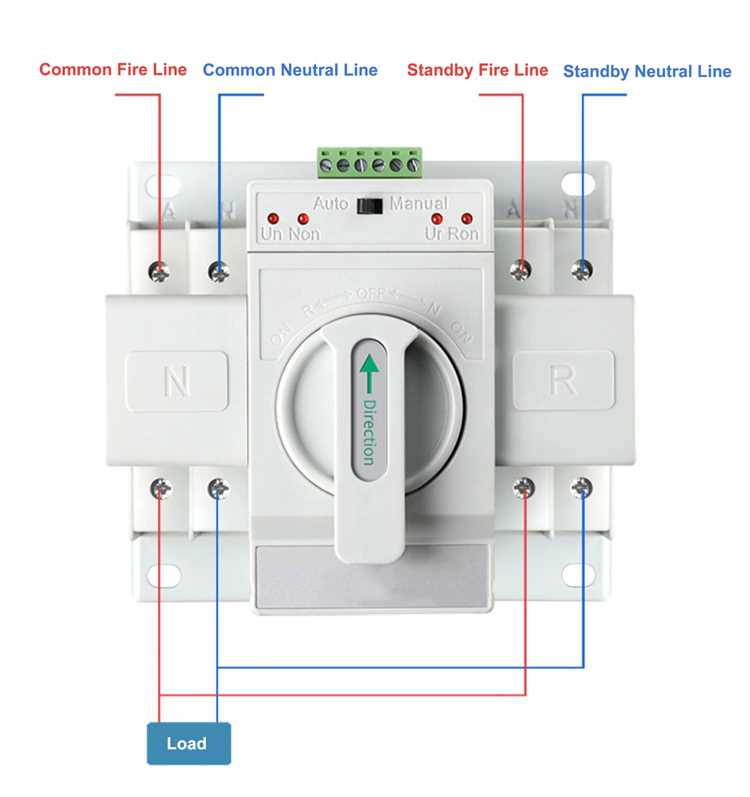

wiring diagram for a transfer switch

Choose breakers, fuses, and connectors based on the amperage and voltage of your sources. Use a 30A breaker for small residential loads and increase rating proportionally for larger panels. Include a properly rated fuse on each input line to protect against short circuits. Verify terminal ratings to ensure compatibility with conductor size and expected current.

Organize components before installation and test each individually:

  • Circuit breakers rated to match maximum load
  • Fuses with interrupting capacity for each power input
  • Insulated connectors and lugs suitable for conductor gauge
  • Color-coded wiring to identify hot, neutral, and ground lines
  • Voltage meters or testers to confirm correct source output

Label all parts and arrange them by function to simplify assembly and future maintenance. Testing each element individually ensures safe and reliable operation of the entire backup system.
