To begin, connect the power source to the fixture by linking the black conductor to the designated terminal. This connection will supply the required current for operation. Use a voltage tester to ensure everything is secure before proceeding with further steps.
Next, connect the switch terminal to allow control over the lighting fixture. Typically, the switch is linked through the red conductor. Be sure to match the switch terminals correctly to avoid malfunctioning or inability to control the fixture as needed.
After completing the main connections, it’s important to secure the grounding wire to avoid any electrical faults. Verify that the ground conductor is properly attached to the grounding point in your junction box. A proper ground ensures that the fixture functions safely and reduces the risk of electrical shocks or other hazards.

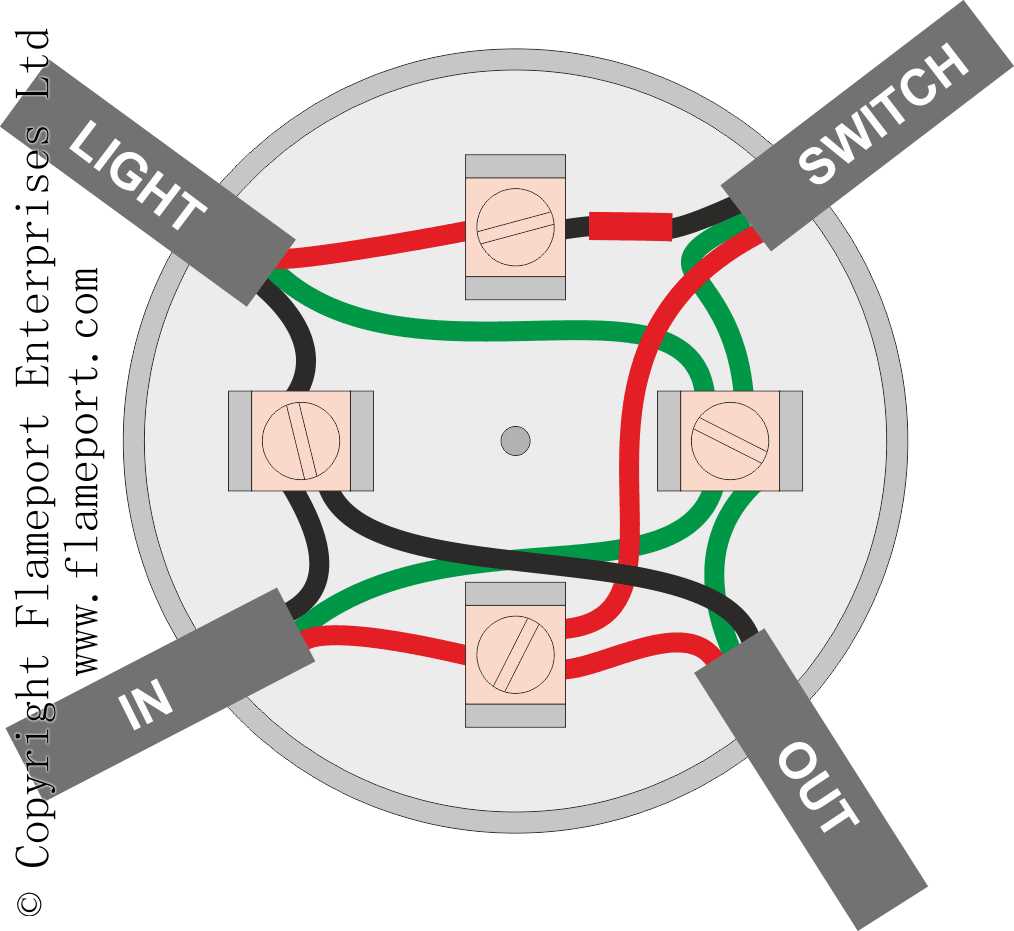

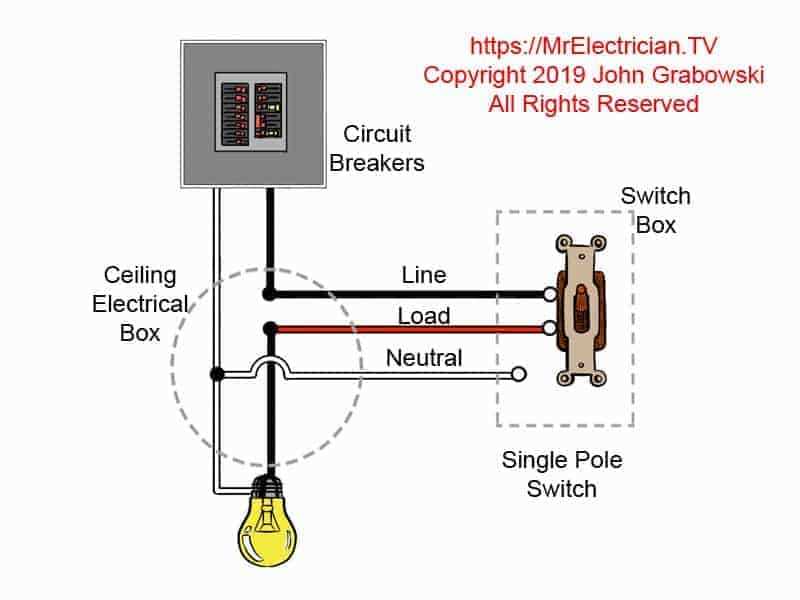

Wiring Diagram Ceiling Light
Start by identifying the main components you need to connect: the power source, switch, and fixture. Ensure the power supply is turned off at the breaker to prevent any electrical hazards during the installation.
The first connection involves linking the live conductor to the fixture. This wire, usually black or red, provides the current necessary for operation. Strip the insulation carefully to expose the copper, and secure it firmly to the fixture’s terminal. Double-check for a secure connection to avoid poor contact.
Next, connect the neutral wire. This is typically white and completes the circuit by allowing the current to return to the power source. Ensure the neutral wire is attached properly to the neutral terminal of the fixture. An improperly connected neutral wire may cause malfunction or improper operation.
For the switch, you’ll need to connect it in between the live wire and the fixture. This allows you to control the flow of electricity to the fixture. Attach one end of the live wire to the switch terminal, and the other end to the fixture’s live terminal. The switch will break or complete the circuit when toggled.
Make sure the switch is rated appropriately for the electrical load. Using the wrong type of switch could result in failure or overheating, which might pose a safety risk. Verify the switch’s specifications before installation.
- Check the compatibility of your switch with the fixture’s voltage and current requirements.
- Ensure the switch is correctly aligned to handle the load without risk of overheating.
Once the switch and fixture are connected, proceed with grounding the setup. The ground wire, typically green or bare copper, connects to the grounding terminal of the fixture and the grounding point in the junction box. Proper grounding helps prevent electrical shock and protects against faults.
Finally, test the installation by turning the power back on and using the switch to control the fixture. Ensure everything is functioning as expected, and check for any unusual sounds or flickering, which may indicate loose connections or wiring issues.

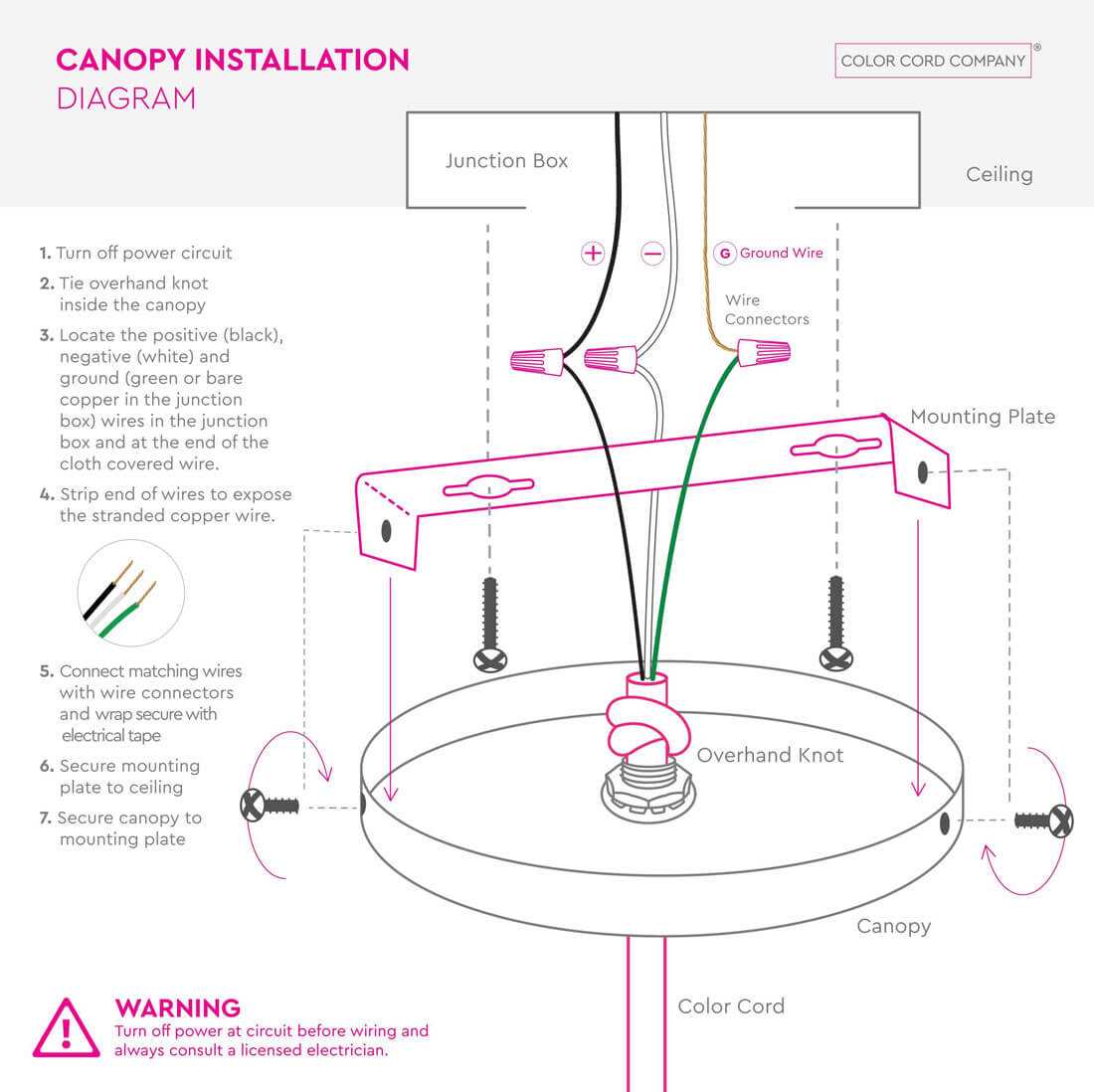

How to Connect the Power Supply to a Ceiling Light Fixture
Begin by turning off the electrical power at the circuit breaker to avoid any accidents. Verify that the power is off using a voltage tester before starting the connection process.
Locate the main power source in your home, which is usually a junction box or electrical panel. The power cable typically consists of three conductors: live, neutral, and ground. Identify the live (black or red) wire, as this will carry the current to the fixture.
Once the live wire is located, strip about 1 to 2 inches of insulation from the end to expose the copper. Be sure not to damage the wire strands while stripping. Attach the live wire securely to the terminal on the fixture designated for power input. This is typically marked with a “L” or “P” symbol.
Next, identify the neutral wire, often white, which completes the circuit. Strip the insulation from the neutral wire and attach it to the corresponding terminal on the fixture. This connection allows current to return to the power source, enabling the fixture to function properly.
After connecting the live and neutral wires, check the grounding connection. The ground wire is usually green or bare copper. Connect this wire to the grounding screw or terminal in the fixture’s mounting box. This will protect the system from potential electrical faults or surges.
Use wire nuts or connectors to secure all connections. Twist the wire nut onto the exposed copper of the wires, ensuring that there are no gaps or loose connections. A secure connection is critical for the safety and proper functioning of the system.
After all connections are secured, gently tuck the wires into the junction box or ceiling mount, being careful not to pinch or strain the wires. Tighten the fixture’s mounting screws and ensure that it is firmly attached to the ceiling or bracket.
Once everything is in place, restore the power from the circuit breaker. Turn on the switch to test the fixture, making sure it operates correctly. If the fixture doesn’t work, double-check the connections for any loose or improper attachments.
