To correctly connect a 30-amp outlet, ensure you are using the appropriate components that match the power rating. This includes the correct gauge wire, typically 10 AWG, and a compatible socket. Make sure that the power source is off before beginning the installation to avoid any electrical hazards.

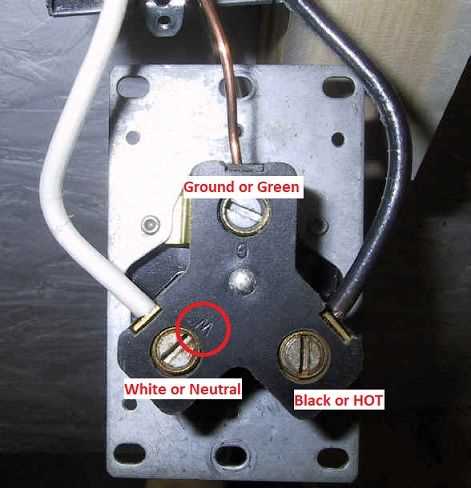

Begin by identifying the terminal screws on the receptacle. These are typically labeled as hot, neutral, and ground. Connect the black wire (hot) to the gold-colored screw, the white wire (neutral) to the silver-colored screw, and the green or bare wire (ground) to the green screw. Double-check your connections to ensure everything is secure and correct before proceeding to testing.
After connecting the wires to the correct terminals, it’s crucial to securely fasten the outlet into its box. Use screws to ensure the outlet stays in place, and check that there is no exposed wire or loose connection. The outlet should be firmly installed and the cover plate should be put on once all connections are verified.
Once everything is wired correctly, turn the power back on and test the outlet with a voltage tester. This will confirm that the outlet is correctly installed and is safely providing power. If any issues arise, double-check the wiring and connections to ensure compliance with electrical safety standards.
Wiring Setup for 30 Amp Electrical Outlet
Begin by selecting the proper components for a 30-amp circuit. You will need a 30-amp rated socket, a 10 AWG wire, and a suitable circuit breaker. Ensure that your power source is turned off before starting the installation to avoid any electrical risks.
Next, identify the three main terminals on the socket: the hot, neutral, and ground terminals. The hot terminal is typically gold-colored, the neutral terminal is silver, and the ground terminal is green. Make sure that the black wire (hot) connects to the gold terminal, the white wire (neutral) connects to the silver terminal, and the ground wire connects to the green terminal.
Once you have connected the wires to the correct terminals, tighten the screws securely to hold the wires in place. It is crucial to ensure that no bare wire is exposed outside the terminals. This will prevent any electrical shorts or other hazards. After securing the wires, carefully insert the outlet into the electrical box and fasten it in place using screws.
After everything is in place, attach the cover plate over the outlet. This step is important for both safety and aesthetic purposes. The cover will also help prevent debris from entering the outlet. Double-check all connections one final time before restoring power to the circuit.
Lastly, turn on the power and test the outlet with a voltage tester to ensure that everything is functioning properly. If the tester shows no issues, your installation is complete. If you notice any irregularities, double-check your connections to confirm that they match the correct terminal assignments.
Step-by-Step Guide for Connecting a 30 Amp Outlet
Start by turning off the main power supply to avoid any accidents while working with electricity. This step is critical for your safety and should never be skipped.
Gather the necessary materials: a 30-amp outlet, a 30-amp rated circuit breaker, 10 AWG copper wire, electrical tape, a screwdriver, and a voltage tester. Ensure all components are rated for the job.
Next, strip about 1-2 inches of insulation from the ends of your copper wires. This will allow you to securely attach the wires to the terminals of the outlet. Be cautious not to nick the wire strands, as this can reduce their conductivity.
Connect the black wire (hot) to the brass terminal on the outlet. The brass terminal is usually colored gold or brass. Tighten the terminal screw to ensure a firm connection, making sure no bare wire is left exposed.
Now, attach the white wire (neutral) to the silver terminal, which is typically located opposite the brass one. Again, tighten the screw to ensure there is no loose connection.
For the ground wire, attach it to the green terminal. Ensure the connection is tight and that the wire is securely in place. The ground wire is important for safety, as it helps direct stray current to the earth in case of a short circuit.
After all wires are connected, insert the outlet into its electrical box. Use screws to secure the outlet firmly in place, making sure the wires are not pinched or stressed during installation. Replace the cover plate to protect the outlet and ensure safety.
Finally, restore power to the circuit and test the outlet with a voltage tester. If everything is wired correctly, the tester should show that the outlet is functioning as expected. If any issues are detected, double-check your connections before using the outlet.
