Before beginning any installation, always ensure the power supply is disconnected. A proper setup for high-powered appliances requires using appropriate cables and connectors to prevent short circuits and ensure safety.
Start by identifying the type of system you need. High voltage circuits typically use a thicker wire gauge for the main power source and a grounding connection to protect against electrical faults. Understanding the correct size of wire, fuse, and breaker is crucial for safety and performance.
Next, connect the hot and neutral wires to their designated terminals on the system, ensuring that the wire’s insulation is not stripped too far back. This helps to avoid any accidental contact with live parts. Double-check the connections before powering up the system.
Lastly, verify that the grounding wire is properly attached to a reliable ground source. A poor ground connection can lead to dangerous electrical feedback and system malfunctions. Use a multimeter to test for continuity and check that the ground is properly established before use.
Wiring Setup for High-Power 240 Volt Connection
To safely connect a high-power appliance, you need to use the correct wire gauge and connectors. Typically, a 10-12 gauge wire is recommended for most high-powered installations, but always check the manufacturer’s specifications for exact wire sizing.

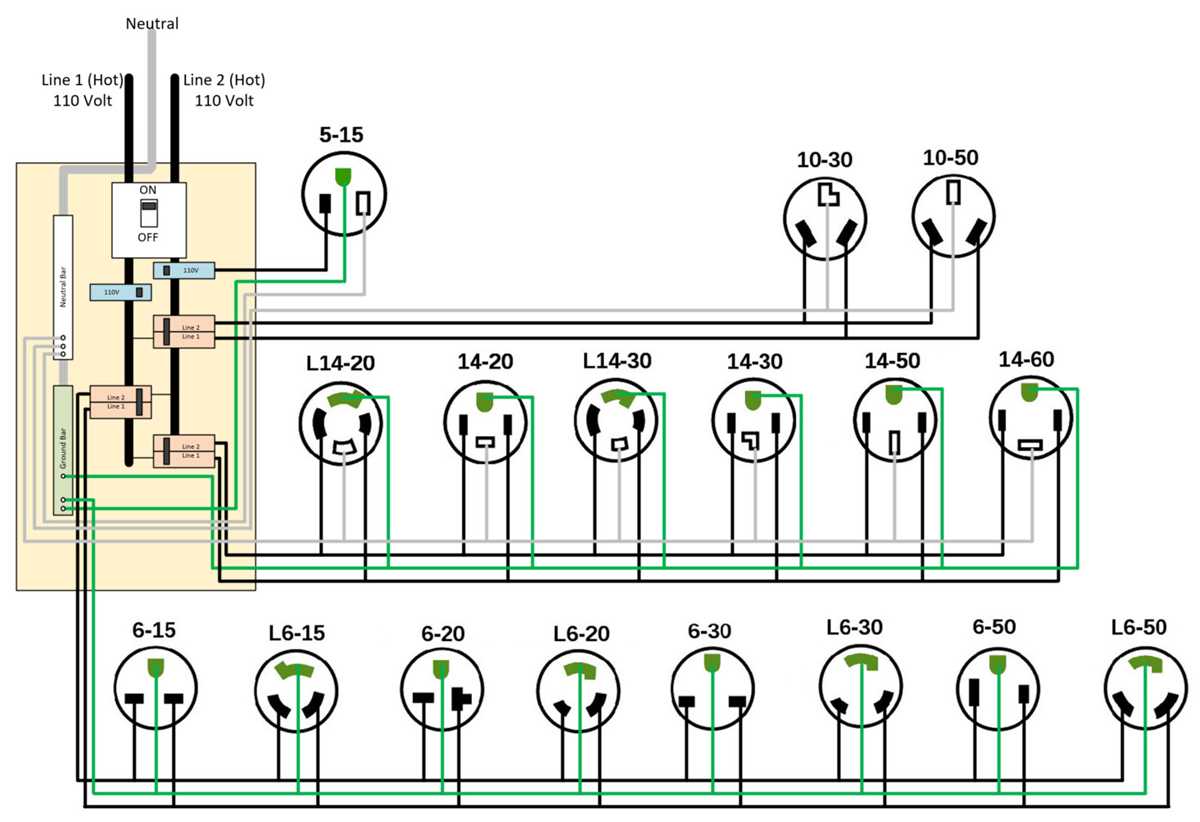

Start by identifying the power source. You will need a double-pole breaker in your electrical panel to supply the necessary current for a high-demand appliance. The breaker should match the amperage rating of the appliance, typically 30 amps for many larger systems.
Once you’ve chosen the correct breaker, run the cables from the breaker box to the installation point. Use insulated wires to ensure the safety of the installation. Most systems will require three wires: one hot wire, a neutral wire, and a ground wire.

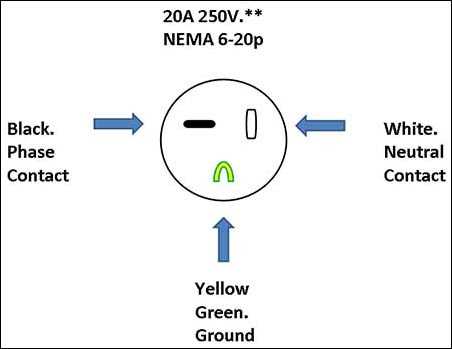

When connecting the wires to the appliance, the hot wire should be connected to the live terminal, the neutral to the neutral terminal, and the ground wire to the ground terminal. Make sure all connections are secure and free of exposed copper.
Proper grounding is crucial for safety. The ground wire should be attached to the grounding terminal in the power panel, and if the outlet or appliance includes a ground pin, make sure it is properly connected. Poor grounding can lead to potential electrical hazards.
Before finalizing the installation, double-check all connections for tightness. Loose connections can cause overheating and increase the risk of electrical fires. It’s also important to ensure there’s no damage to the insulation on the wires during installation.
Finally, test the system. Once everything is connected, use a multimeter to check for correct voltage and confirm that the wiring is properly installed before powering up the appliance. This will ensure that the setup is safe and functioning as intended.
Steps to Install a 220 Volt Outlet Safely
Before beginning installation, ensure the power is turned off at the main electrical panel. Always use a voltage tester to confirm the circuit is not live. This is critical to avoid electrical shocks during installation.

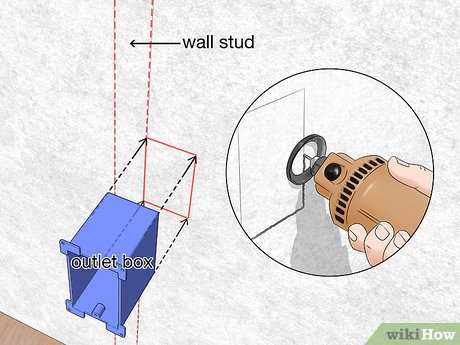

Next, select the correct electrical components, including a compatible double-pole breaker, properly rated wires (usually 10-12 gauge), and a suitable outlet box. The breaker should match the amperage of the device to be connected, typically 30 amps for many appliances. Install the breaker in the panel, ensuring it is securely in place.

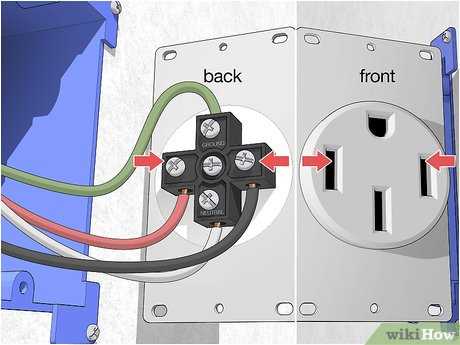

Run the wires from the breaker to the installation location. Use a screwdriver to attach the wires to the outlet terminals, ensuring a secure connection. The hot wires go to the live terminals, and the ground wire should be connected to the ground terminal. After all connections are made, secure the outlet into the box and attach the cover plate. Finally, restore power and test the outlet using a voltage tester to ensure proper functionality.
