Ensure all power sources are disconnected before handling conductors between two control points. Use a reliable voltage tester to confirm absence of current on both active and neutral lines.
Identify each conductor by color coding and label them according to their function. Typically, red or brown wires indicate active paths, blue represents neutral, and green/yellow is reserved for grounding.
Strip insulation carefully to avoid nicking copper strands, leaving approximately 10 millimeters exposed for terminal connections. Secure each wire in its designated terminal to prevent loose contacts.
Maintain proper separation between active and neutral lines throughout the run to minimize interference or accidental short circuits. Avoid crossing conductors at junction boxes whenever possible.

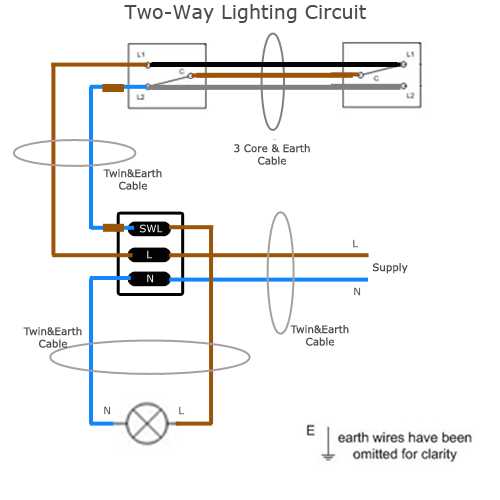

Step by step instructions for connecting a two point lamp controller safely
Disconnect all circuits at the main panel before starting any connections. Confirm no current is present with a non-contact tester on each conductor to prevent electric shock.
Identify each conductor by its color or label, distinguishing live, neutral, and grounding lines. Strip approximately 10 millimeters of insulation and secure wires tightly into the correct terminals, avoiding any frayed strands that could cause shorts.
Test the circuit incrementally by reconnecting power only after all conductors are secured. Operate both control points separately to ensure each completes the circuit reliably, checking that grounding provides a safe path for stray currents.
Identifying live neutral and earth conductors for dual point control
Use a reliable voltage tester to verify which conductor carries current from the panel. The live line typically has a reddish or brown insulation, while neutral is often blue or gray. Confirm the earth conductor is connected to the grounding system and shows continuity to the main ground rod.
Label each conductor clearly before making any connections. This reduces confusion when connecting both control points and prevents accidental cross-connections that could cause short circuits or malfunction.
Strip only the necessary amount of insulation, usually 8–12 millimeters, to fit into terminal screws. Ensure that all strands of a multi-core conductor are twisted tightly and inserted fully to maintain solid electrical contact and prevent sparking.
Perform continuity and isolation checks before applying power. Test between live and earth, and neutral and earth, to confirm no unintended paths exist. Once confirmed, proceed to secure both control points and test operation independently to verify safe and consistent control.
