Start by identifying the different types of connectors in your project, whether it’s the rectangular USB-A or the more compact USB-C. Each type has a distinct set of pins for power, data transmission, and ground. Ensure you’re using the correct wire configuration based on the type of device you’re working with.
Pay close attention to the pinout for each connector. For example, USB-A connectors typically have four pins: VCC (5V), Ground, Data+, and Data-. These pins need to be correctly aligned with their counterparts in your cables or connectors to ensure proper signal transmission and power supply.
If you’re building or repairing a device that uses these connectors, always double-check that each wire is securely connected to the correct terminal. A common issue is mismatched wiring, which can cause your device to malfunction or, in some cases, fail to power on at all.

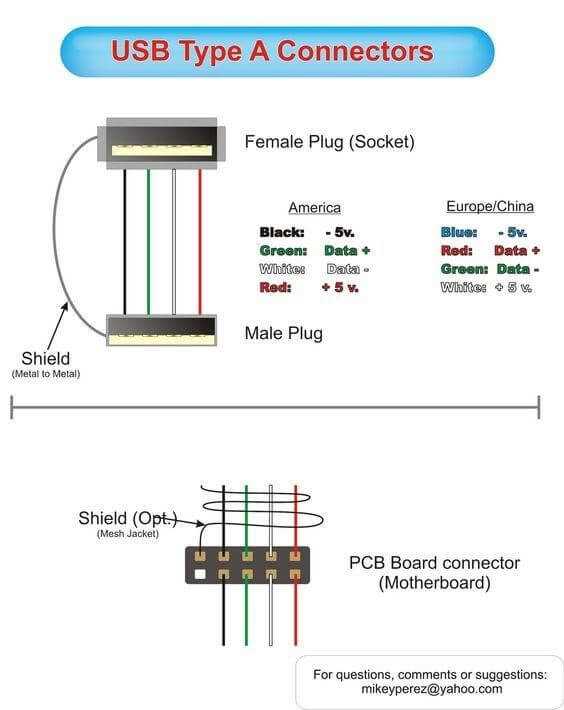

USB Wiring Schematic Diagram
To ensure a proper connection, start by understanding the pin configuration of the connector you’re working with. For a standard four-pin connector, the arrangement typically follows this order: 5V (VCC), Ground (GND), Data+, and Data-. Each pin must be connected to its corresponding wire in the cable for the system to function correctly.
Before connecting any wires, always verify the power rating of your device. Some components, like hubs or devices requiring higher currents, may have different wiring needs. Be cautious of power supply limitations to prevent damage to sensitive equipment.
Pinout of a Typical Connector
- Pin 1 (VCC): Provides 5V power to the connected device.
- Pin 2 (Ground): Completes the circuit by providing the ground connection.
- Pin 3 (Data+): Carries the positive signal for data transmission.
- Pin 4 (Data-): Carries the negative signal for data transmission.
Ensure the wires are stripped to the correct length and that each connection is securely attached. Miswiring can lead to power issues or signal interference. If you notice a malfunction, check for loose or improperly connected wires.
After ensuring everything is wired correctly, test the system by plugging it into your computer or device. You should see an immediate connection with no errors. If problems persist, consult the manual for the specific device to check for compatibility or troubleshooting steps.
Understanding the Pinout for Different USB Types
Before connecting any device, verify the pinout for the specific connector type you are using. Each type has distinct pin arrangements that affect how signals and power are transmitted. For instance, the common four-pin rectangular connector typically includes a 5V power wire, ground wire, and two data lines (positive and negative).
Type-A connectors are the most widespread and have four pins. These are primarily used for host connections. The first pin is for 5V, followed by ground, and then the two data lines for communication. This configuration is common in computers and peripheral devices.
Type-B connectors often used for printers or other devices, also consist of four pins. The pinout is nearly identical to Type-A, but they are designed for the device end of the connection. The pinout remains the same, but the shape and orientation differ.
For Type-C connectors, which are reversible and more compact, the pinout includes additional wires. There are 24 pins arranged in a more complex configuration to support faster data transfer speeds, increased power delivery, and the ability to function as both host and device. Understanding these connections is crucial when working with newer technology that demands higher data rates.
Mini and Micro connectors also follow a similar four-pin pattern, but the physical size of the connectors is smaller. These types are commonly found in older mobile devices or portable gadgets. The four pins–power, ground, and the two data lines–are positioned differently within these smaller connectors, requiring more precision during assembly or repair.
When creating custom cables or connecting devices, always match the pinout with the correct connector type. Mismatched wiring can cause short circuits, data corruption, or failure to establish a connection. Consult the device’s manual or datasheet for the most accurate pinout information.
Lastly, for high-speed data transmission, it’s important to account for the performance capabilities of each connector. Higher-end connectors, like Type-C, are designed to support speeds up to 10 Gbps or more, while older types like Type-A may only handle up to 480 Mbps. Make sure to use the correct connector to match your data transfer requirements.
