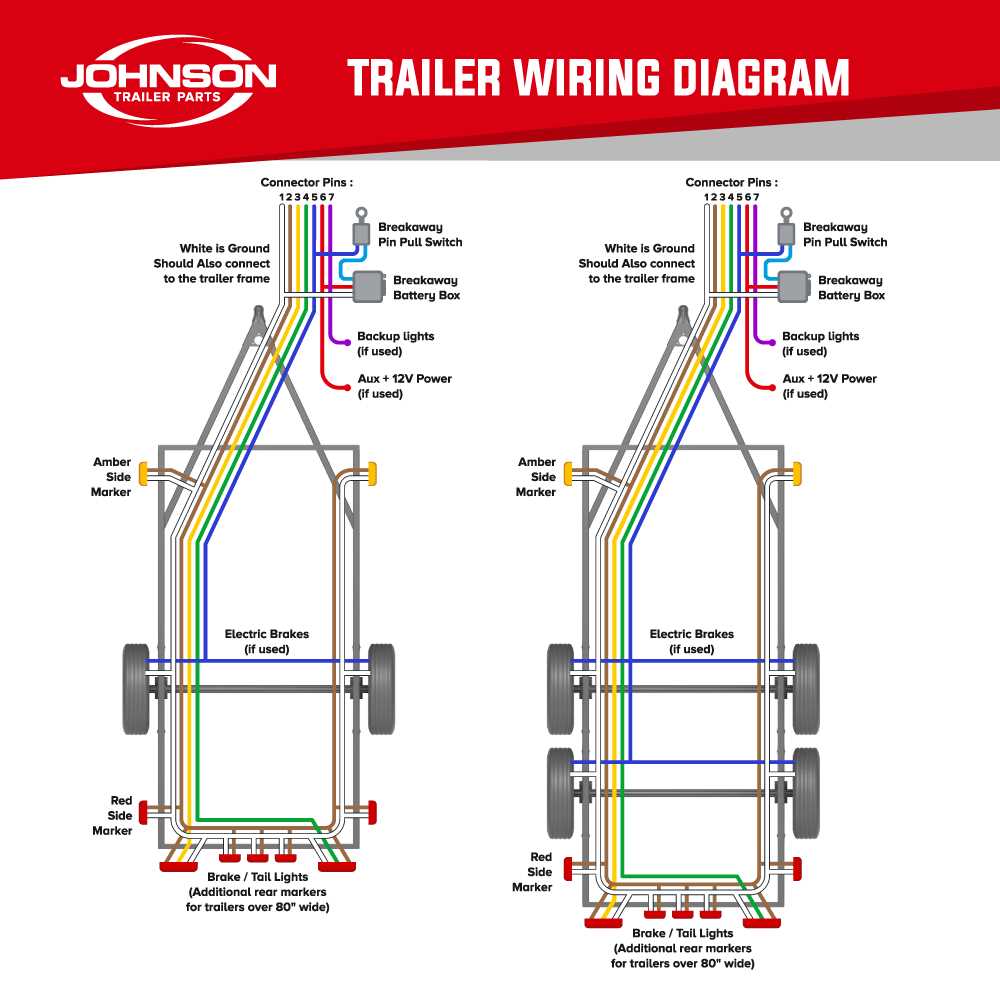

Confirm each connection point before attaching to lights and brake systems. Correctly matching terminals prevents short circuits and ensures proper signal transmission for all functions.
Use color coding to identify each path. Standard codes include brown for tail lights, yellow for left turn, green for right turn, white for ground, blue for brake, and red for auxiliary power. Following these codes reduces installation errors.
Check all contact surfaces for corrosion or loose fittings. Secure and clean connections maintain consistent voltage delivery and avoid intermittent lighting or braking failures.
Test each function individually after connections. Activate turn signals, brake lights, and running lights to verify that every output responds correctly before towing.

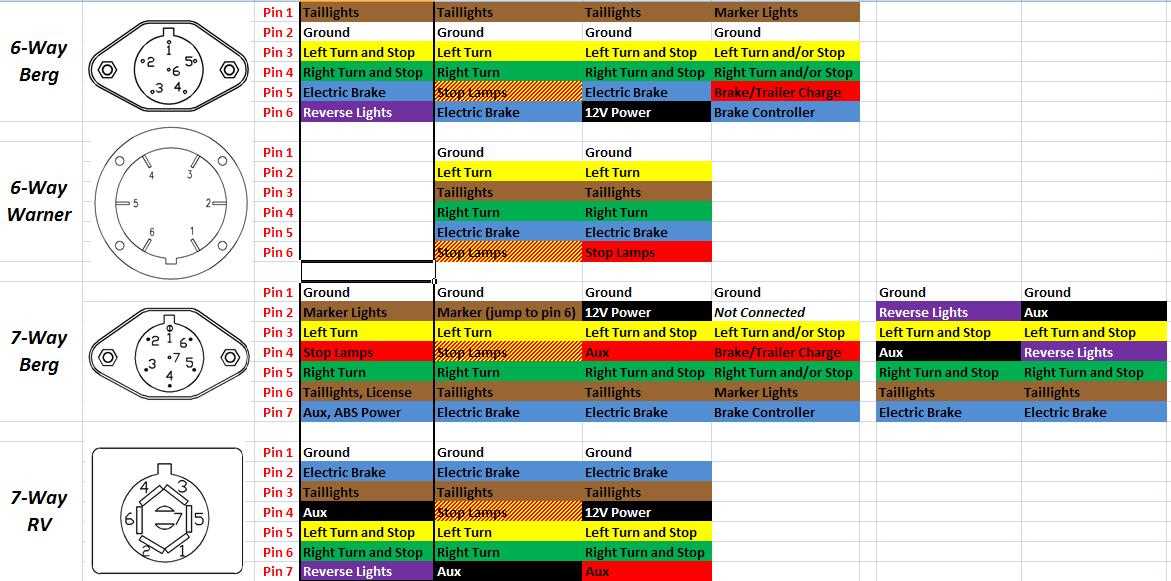

6 Pin Connector Setup with Terminal Functions and Safety Guidelines

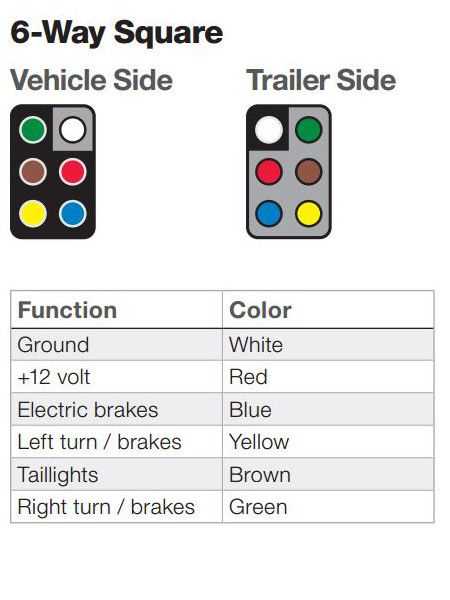

Match each terminal to the corresponding light or brake function using standard color codes. Brown for running lights, yellow for left indicators, green for right indicators, white for ground, blue for braking, and red for auxiliary circuits. Proper alignment prevents signal interference and ensures all systems operate reliably.
Inspect and secure all connections before applying power. Use corrosion-resistant connectors and tighten screws to maintain consistent contact. Test each output individually to confirm correct illumination and braking response, avoiding shorts or intermittent failures during operation.
Identifying Each Connection and Its Function

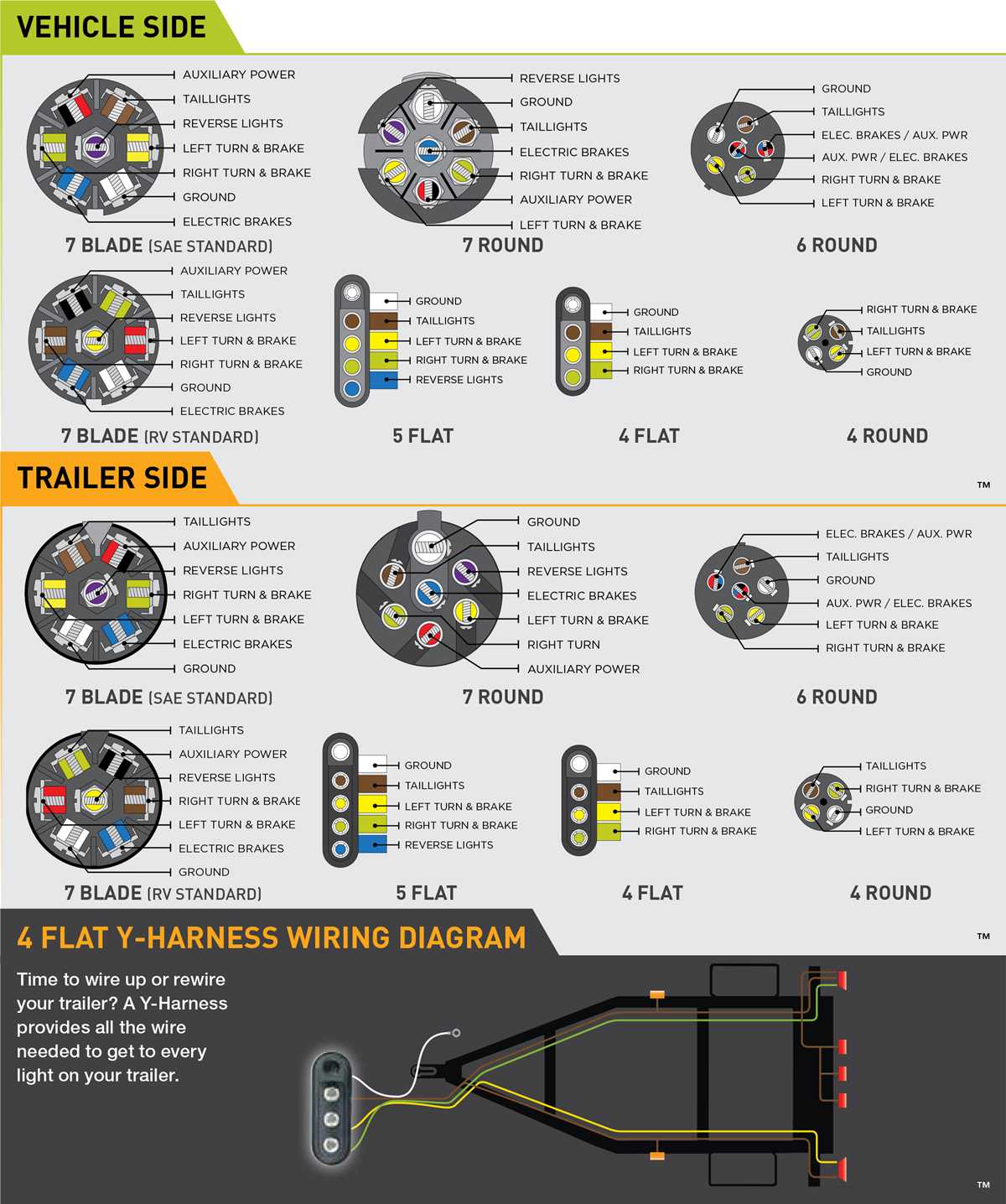

Start by labeling each path according to standard color codes. Brown typically powers running lights, yellow signals left turns, green controls right turns, white serves as ground, blue activates brakes, and red handles auxiliary functions.
Verify each lead with a multimeter before making connections. This confirms continuity and prevents cross-connection that could cause short circuits or malfunction of lighting and brake systems.
Organize terminals in sequence to match the socket layout. Keeping colors and functions aligned reduces installation errors and allows for faster troubleshooting in case of failure.
Using Color Codes for Safety and Accuracy
- Brown – running or tail lights
- Yellow – left turn indicators
- Green – right turn indicators
- White – chassis ground
- Blue – braking circuits
- Red – auxiliary or reverse lights
Check insulation on all conductors. Damaged coatings can cause shorts or accidental grounding that may disable lights or brake signals.
Secure all connectors with proper clips or screws. Loose connections increase resistance, causing flickering lights and delayed brake signals.
Test each output individually after installation. Confirm that signals illuminate in the correct order and brightness to ensure compliance with safety standards.
Document the layout for future reference. Keeping a record of terminal functions and color codes simplifies maintenance and reduces the risk of mistakes during modifications or replacements.
