When working with electrical systems that require a timed response, choosing the correct components is crucial. A timed switching function can be achieved by using a specialized component that initiates or cuts off power after a set time period. Start by identifying the desired time intervals, such as seconds or minutes, and ensure the selected part can handle the required load without malfunction.
For installation, connect the control terminals in sequence with your power source and the device to be controlled. The timing element must be set up in a way that aligns with the circuit’s operational needs, whether for automation or simply controlling when power is applied. Be mindful of voltage ratings and ensure the timing mechanism is configured to deliver the appropriate signal at the right moment to trigger the connected system.
Test the setup once it is in place to confirm the timing cycle operates as expected. Watch for any inconsistencies in performance, and adjust the timing function if necessary. Attention to the wiring order is important to avoid faulty behavior or potential damage to components in the system.
Time Delay Mechanism Setup Guide
Begin by selecting the appropriate component that matches your system’s voltage and current ratings. Ensure the timing mechanism can handle the maximum load your circuit will draw. For most residential and industrial applications, choose a mechanism designed for a broad range of voltages to avoid compatibility issues.
Next, connect the power supply terminals. The mechanism will usually have two power input terminals–one for the live wire and another for the neutral. Double-check polarity to avoid misfires or potential damage to the timing device.

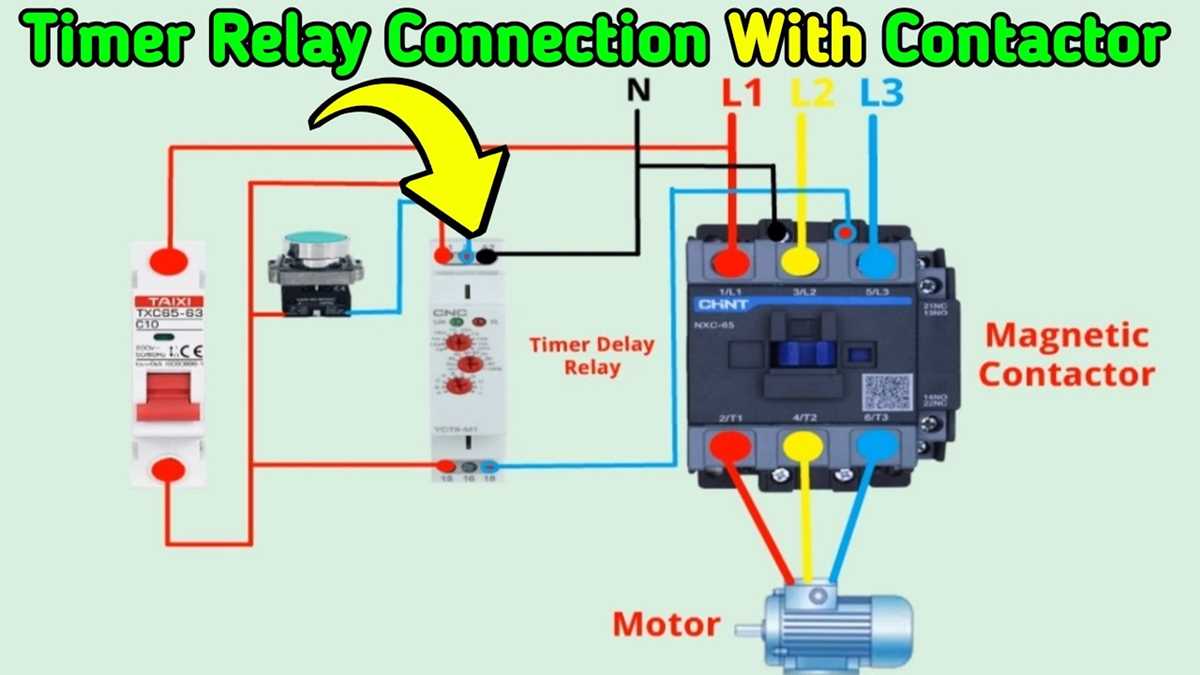

Now, the control terminal must be linked to the device you plan to control. This could be a motor, pump, or lighting fixture. The control terminal will close or open the circuit when the set delay period expires. Verify that the control wiring is appropriate for the load and that it can handle the current expected when the circuit activates.
Set the desired time interval on the timing device. These are usually adjustable via a dial or switches. Some mechanisms allow fine adjustments, while others have predefined intervals. If possible, choose a model that lets you test and verify the timing before permanent installation.
After setting the interval, check for consistency. If the device allows for a manual override, use it to simulate the circuit’s function and verify the timing. This step helps prevent any surprises during the actual application of power to the system.
It is also important to consider environmental factors that might affect the performance of the timing device. Extreme temperatures, humidity, or electrical noise could interfere with its operation. Make sure the component is rated for the environment in which it will operate.
Once everything is connected, perform a final test. Apply power and observe how the system behaves once the designated period lapses. The controlled device should engage or disengage without delay. If there are issues, check the component’s settings and connections for proper alignment.
How to Select the Right Time Delay Relay for Your Application
Begin by determining the operating voltage required for your setup. Relays are available in different voltage ratings, so ensure the one you select matches the power supply voltage. For systems with fluctuating or multiple voltage levels, opt for a model with a wide voltage range.
Next, calculate the current rating your device will draw during activation. The chosen device should handle this current without risk of overheating or failure. Ensure that the current ratings on the relay correspond to the system’s load requirements.
Consider the delay period range required for your application. Some systems may need a delay that spans seconds, while others require longer delays. Select a unit that allows you to adjust this period accurately, and verify that the timing range is suitable for your needs.
Look into additional features such as manual overrides or adjustable timing precision. These features can help fine-tune the device’s performance and ensure it operates within your system’s requirements. Always test these settings before full installation.
Finally, ensure that the relay is compatible with your environmental conditions. If the system will be exposed to high humidity, extreme temperatures, or vibrations, select a model rated for industrial or rugged environments. Also, verify that the mounting and installation options align with your system’s design.
