For precise engine performance adjustments, focus on the central cable cluster connecting ignition, lighting, and charging systems. Ensure all color-coded leads match their designated terminals to prevent shorts or voltage drops. Red wires usually carry battery voltage, while green or black lines often serve as ground paths. Misrouting any conductor can cause persistent stalling or flickering lights.
When inspecting connectors, check for corrosion, loose pins, and cracked insulation. Using dielectric grease on terminals can reduce oxidation and maintain stable conductivity. Secure all clamps and ties along the frame to minimize vibration-induced wear, which is a frequent cause of intermittent failures in compact scooters.
Integrate diagnostic tools to trace continuity and confirm each pathway delivers the correct voltage. Voltage drops exceeding 0.3 volts along any circuit segment indicate potential resistance or poor connection. Mapping out each junction before modifications prevents accidental damage to the stator, regulator, or ignition coil.
During replacement or rerouting, label each line and maintain symmetry between left and right-hand circuits. Heat-shrink tubing over soldered joints ensures long-term insulation, while color-coded electrical tape can simplify future troubleshooting. Consistent organization reduces confusion and accelerates repairs on scooters with compact engine bays.

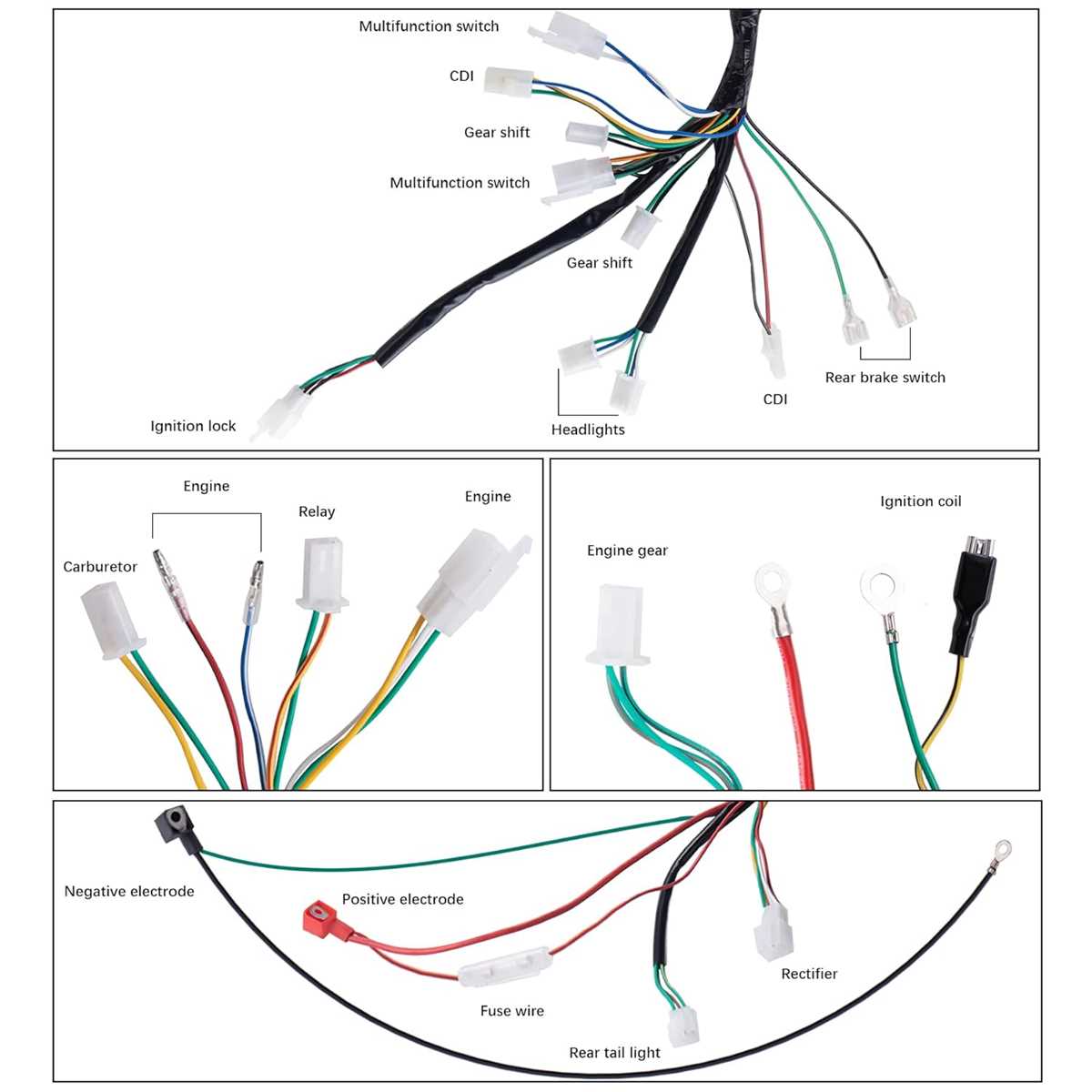

Gy6 Electrical Connector Layout
For proper assembly, match the color-coded leads to the ignition coil, stator, and rectifier without twisting or splicing. Use insulated terminals rated for 10–12 AWG wire to avoid voltage drops. Confirm continuity with a multimeter across each pin before final mounting, especially on the brake light and headlamp circuits, which often fail due to loose crimps.
Follow this sequence for optimal routing:
- Front headlight: connect the high-beam, low-beam, and ground lines in parallel to the switch block.
- Rear assembly: link the taillight, turn signals, and brake trigger; ensure polarity matches the rectifier output.
- Engine interface: attach the ignition coil, stator, and kill switch leads according to phase order; secure with zip ties to prevent chafing.
Use heat-shrink tubing on all junctions and avoid stretching the cables over sharp edges. A color-coded reference chart attached near the battery compartment speeds up troubleshooting and reduces the risk of reverse connections that could burn fuses or damage the CDI module.
Identifying Each Wire in a Gy6 Wiring Harness
Label each lead according to color codes before connecting to any terminals. Red usually supplies constant voltage from the battery, while black often serves as the ground connection. Keep a multimeter nearby to verify continuity and voltage on each conductor.
Green wires frequently handle signals to the lighting system, including indicators and tail lamps. Trace each wire to its endpoint to confirm that it matches the component it powers. Do not rely solely on color, as older models may have faded insulation.
Yellow leads are commonly linked to the ignition system. Test each yellow conductor with a test light while the engine is running to ensure it delivers current only during operation. Misidentifying these can prevent proper ignition timing.
Blue and white wires often control auxiliary functions like the horn or brake switch. Follow each path from switch to device, noting any inline connectors. Label connectors immediately to prevent confusion during reassembly.
Brown or orange wires sometimes supply regulated voltage to sensors. Measure voltage under both idle and full-throttle conditions. Accurate identification here prevents overloading sensitive electronics and ensures consistent sensor readings.
Tools for Verification
Use a digital multimeter to check resistance and voltage, and a continuity tester to map connections. Clip leads carefully to avoid short circuits. Document each reading to compare against standard reference values for the engine model.
After mapping all conductors, bundle each group by function and secure them with zip ties or protective sleeves. This reduces wear from vibration and simplifies troubleshooting in future maintenance. Keep the labels legible and avoid twisting different circuits together.
