Lighting Control Installation Guide
Connect traveler and common conductors accurately by matching each line to its designated terminal on the adjustable lighting unit. Use a voltage tester to confirm hot lines and a continuity tester for return paths to avoid short circuits or misfiring loads.
Secure all connections and mounting points using corrosion-resistant screws and insulated terminals. Route cables away from sharp edges and heat sources, and label each conductor for easier troubleshooting. Test the setup by operating each control point and adjusting the light intensity to ensure consistent performance and prevent flickering.
Identifying Traveler and Common Conductors

Use a voltage tester to distinguish live and neutral lines before making any connections. Confirming voltage ensures the correct conductor is assigned to each terminal, preventing shorts or misfiring loads.
Locate the common conductor first as it carries the return path for the load. Mark it with a colored tape or label to avoid confusion during installation and future troubleshooting.
Tracing Traveler Lines

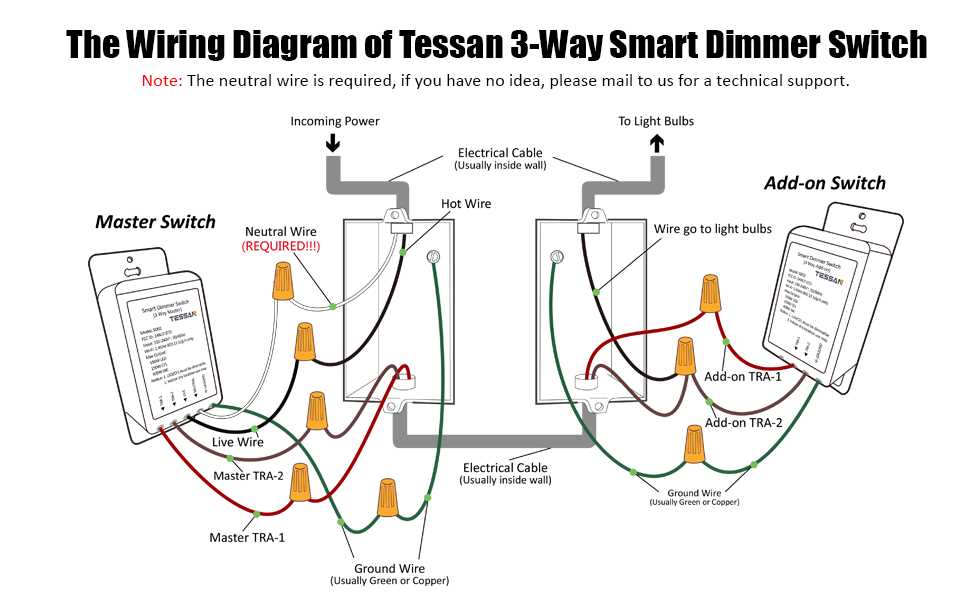

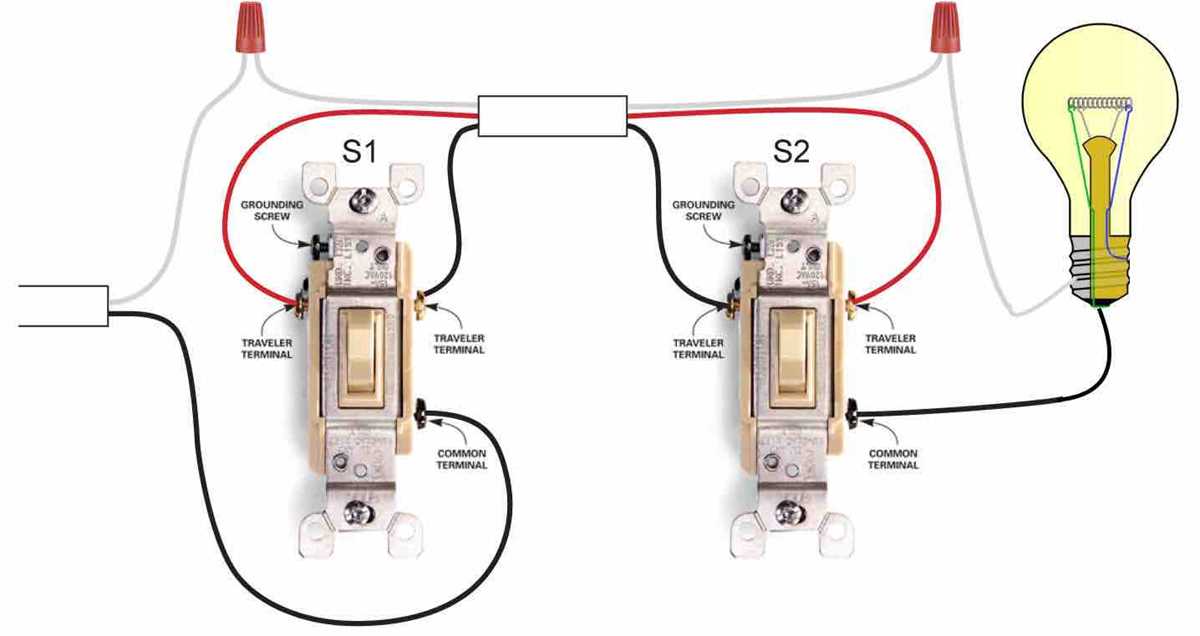

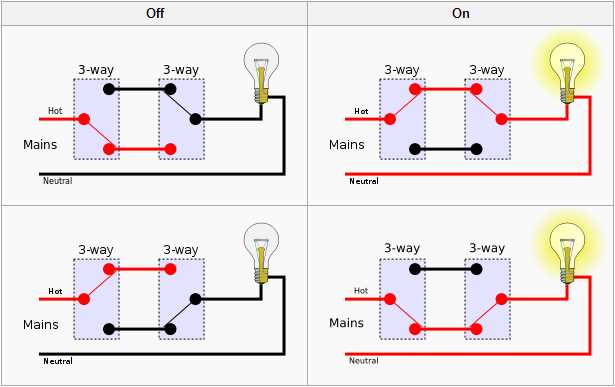

Identify traveler conductors connecting multiple control points. Use a continuity tester to verify that each line runs between the intended terminals, and avoid mixing them with the common conductor.
- Disconnect power at the panel before tracing lines.
- Check each traveler at both ends for continuity.
- Label each conductor to maintain clarity during connection.
Separate traveler lines from other electrical circuits to reduce interference and prevent accidental shorts. Route them neatly using clamps or cable ties along structural supports.
Verifying Connections

After identifying each conductor, test the circuit by restoring power and activating each control point. Ensure lights respond correctly and consistently to each command to confirm proper identification of traveler and common lines.
Document conductor locations and labels for maintenance. This record prevents errors during repairs, replacements, or future upgrades, ensuring safe and reliable operation of the lighting system.
