Ensure your system operates at its best by first confirming that the power unit and speakers are connected to the correct terminals. Identify the positive and negative terminals of all components to avoid issues with the flow of electrical current.
When setting up power connections, it’s important to match the required voltage and current for each piece of equipment. If the wire gauge is too thin, it could lead to overheating or insufficient power supply. On the other hand, too thick a wire can make installation more challenging without providing any added benefits. Typically, an 8-gauge wire is the best option for most systems, but always confirm the specifics from the manuals.
Proper grounding is critical in any system setup. Choose a solid metal surface within the vehicle for the ground connection. A secure ground will prevent electrical noise or interference from distorting the sound quality, which is common in poorly grounded systems.
For those unfamiliar with the installation process, consulting manuals and seeking professional help can ensure the system is set up correctly and safely. This careful attention to detail improves the overall performance of your car’s audio system, making it both more reliable and long-lasting.
Subwoofer Amplifier Wiring Guide
Start by ensuring that you are using the right gauge of cable for your components. For most setups, 8 or 10 gauge wire is ideal for the power supply, while thinner wires can be used for the signal. The right gauge ensures minimal loss of power and reduces the risk of overheating.
Next, carefully connect the power lead from the battery to the unit. Always use a fuse near the battery to protect the circuit from electrical surges. Ensure the positive terminal is connected to the correct power input, and the negative lead is attached to a suitable ground point. A poor ground connection can lead to noise issues and signal distortion.
The connection between the signal source and the input should be checked to ensure it’s secure and that there is no interference. RCA cables are often the best option for this, but it’s important to ensure that they are properly shielded to avoid picking up electrical noise from other components in the system.

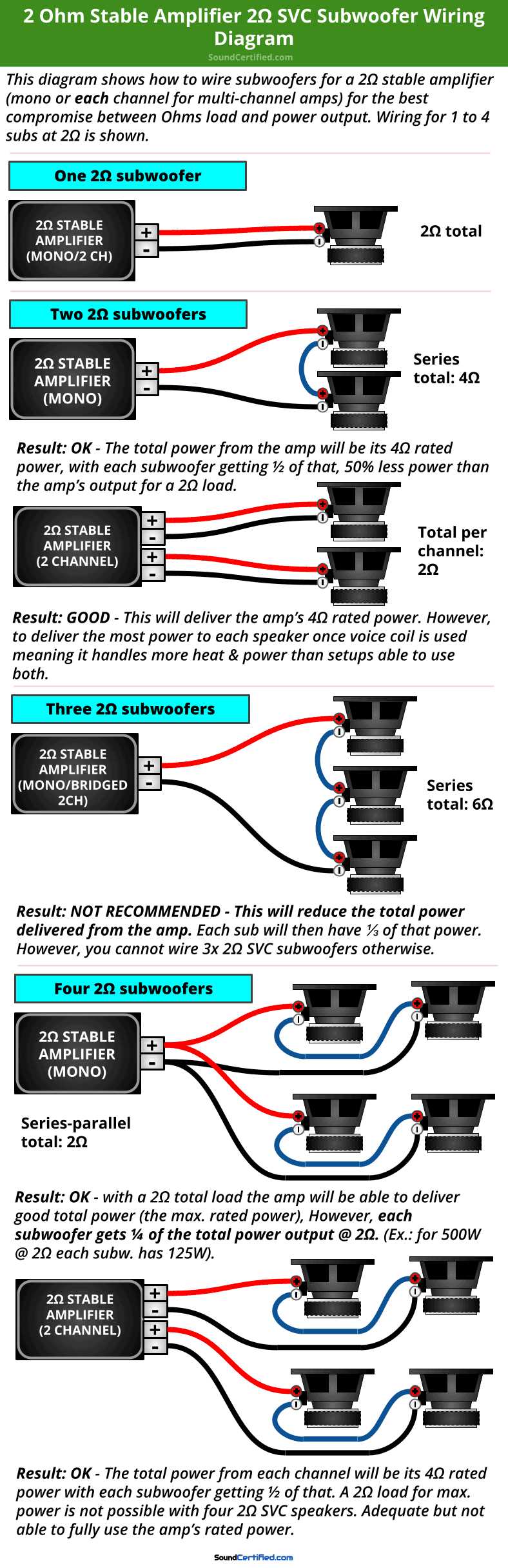

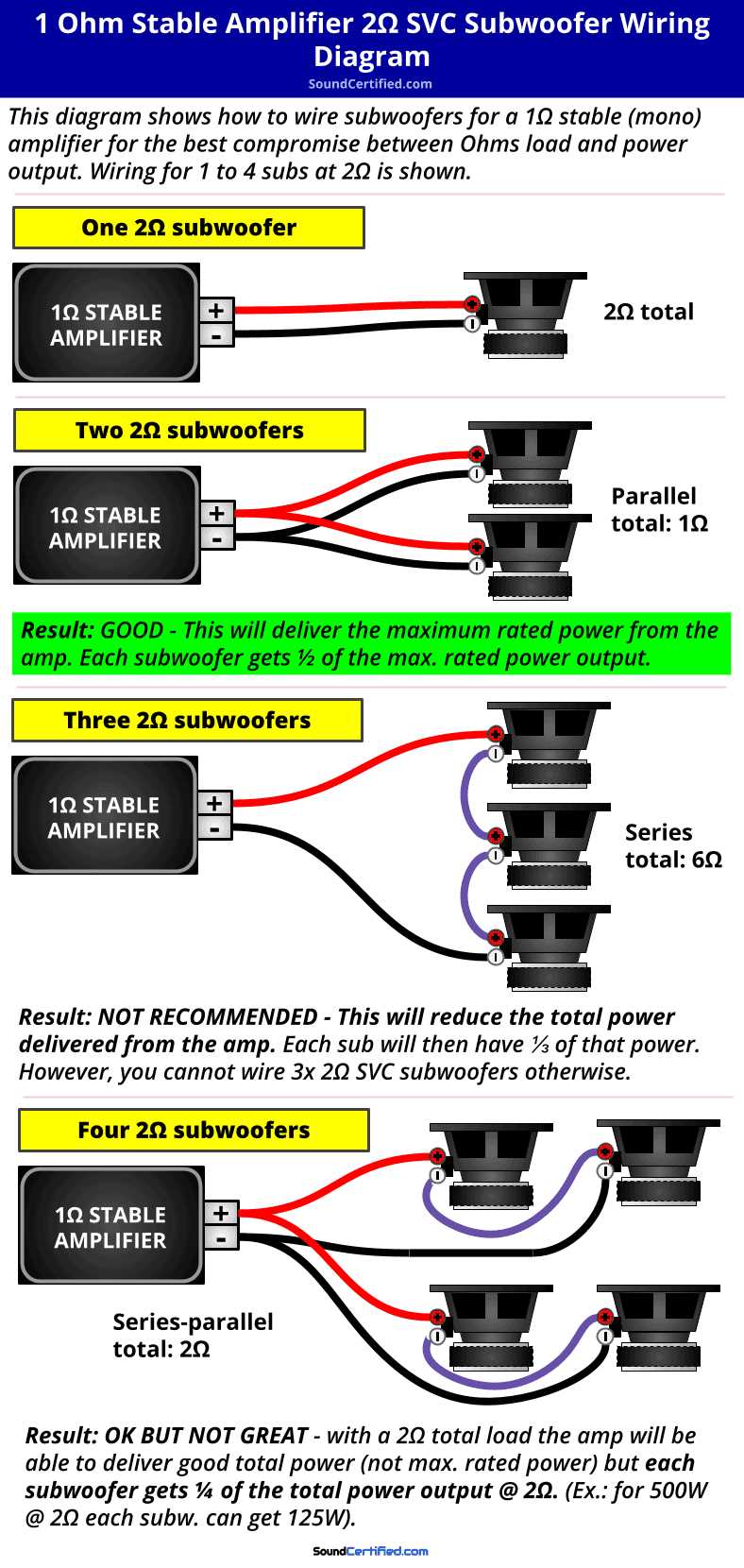

When connecting the output, ensure that the speakers or drivers are wired in a parallel or series configuration depending on your impedance requirements. Always double-check the manufacturer’s specifications to match the impedance of the drivers with the amplifier’s output. Incorrect wiring can damage both the drivers and the power unit.
After all connections are made, double-check that all wires are securely fastened, and there are no loose connections. Any loose connection can cause electrical issues, including power loss and short circuits. Always use cable ties or clamps to keep the cables tidy and organized, preventing them from touching other electrical components.
Finally, after installation, test the system before finalizing the setup. Play some low-frequency signals and check the connections for any distortion or noise. If any issues arise, check the wiring again to ensure everything is connected properly, and there are no ground loops or short circuits.
How to Connect a Subwoofer Amplifier to a Car Stereo
Start by locating the RCA output on your car stereo. This output is typically found on the back of the head unit. If your stereo doesn’t have dedicated RCA outputs, you’ll need an RCA-to-speaker wire adapter to create the connection.
Connect the RCA cables from the stereo to the corresponding inputs on your power unit. Make sure that the red cable goes to the right channel and the white cable to the left channel. This will ensure a proper signal transfer and avoid any issues with sound output.
Next, connect the power cables. Attach the positive terminal from your power supply to the power input on the unit. The ground wire should be connected to a metal part of your vehicle that is bare and free from paint to ensure a solid connection.
Ensure the remote wire is properly connected between the head unit and the power unit. This wire will trigger the amplifier to turn on when you start the car stereo. The remote wire typically connects to the “remote” or “remote on” terminal of the power unit.
The next step is to attach the speaker terminals. Connect the positive and negative terminals from the power unit to the corresponding terminals on your speaker. Make sure the polarity is correct to prevent distortion and other sound quality issues.
Double-check all the connections to ensure everything is securely fastened and there are no loose wires. Loose wires can cause electrical issues such as short circuits or signal loss, leading to poor sound quality or even damage to your equipment.
Finally, test the setup by turning on your car stereo and adjusting the volume. You should hear clear, deep bass from the speaker. If there are any issues, recheck the wiring and make sure each connection is correct and secure.
