Ensure the hot conductor is attached to the correct terminal to maintain safe operation and prevent short circuits. Use a voltage tester to confirm the line is de-energized before making any connections.
Identify the load wire running to the fixture and connect it to the designated output terminal. This guarantees the device will complete the circuit correctly when engaged.
Grounding is critical; attach the bare or green-insulated wire to the grounding screw to reduce the risk of electric shock and improve system stability.
Secure connections with proper tightening torque, avoiding over-tightening that could damage terminals or strip screws, and under-tightening that may cause arcing.
Use wire strippers to expose the correct length of conductor, typically 3/4 inch, to ensure full contact within terminals and minimize loose connections.
Labeling wires during installation helps in future maintenance and troubleshooting, preventing confusion between line and load wires.
Verify operation by restoring power and testing the control device with the connected fixture. Confirm consistent on/off functionality without flickering or overheating.

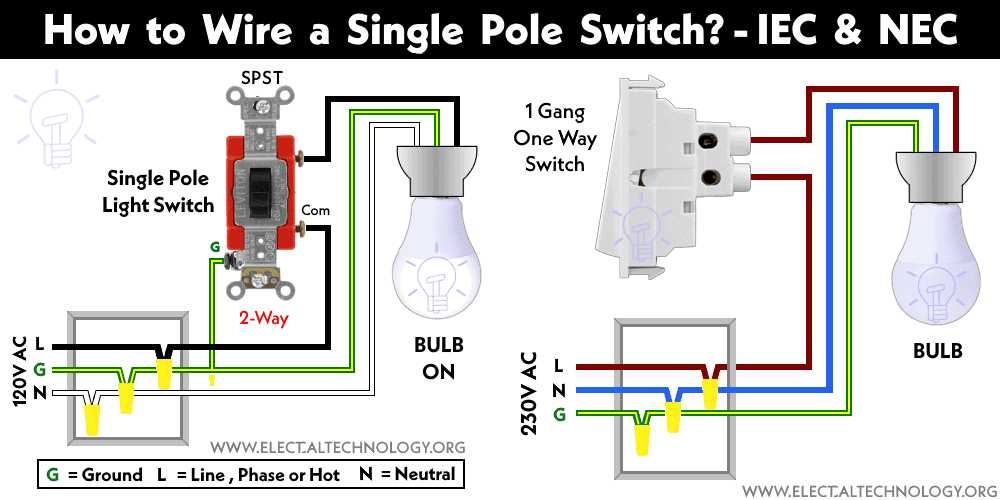

Single Pole Light Switch Connection Guide

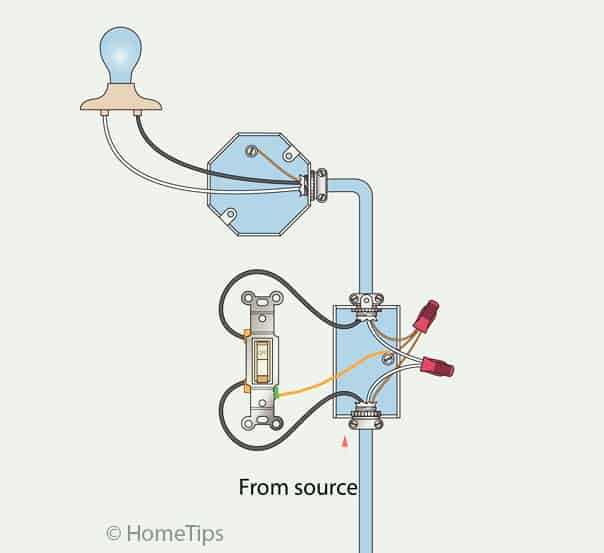

Attach the incoming hot conductor to the designated terminal marked for line voltage. Ensure the power is turned off at the breaker panel and verify with a voltage tester before making any contacts.
Identify the outgoing conductor leading to the fixture and connect it to the load terminal. Proper alignment prevents flickering and ensures the device completes the circuit when toggled.
Secure the grounding conductor to the green screw or dedicated ground terminal to maintain safety and reduce the risk of shocks or stray currents.
Strip the insulation to approximately 3/4 inch and insert the wire fully into the terminal. Tighten the screw just enough to hold the conductor firmly without deforming it.
Double-check terminal positions to avoid crossing line and load wires. Misplacement can cause the device to fail or create hazardous conditions.
After completing connections, restore power and test the fixture operation. Confirm smooth toggling, absence of sparks, and stable brightness across the connected unit.
Identifying Terminals and Wire Types

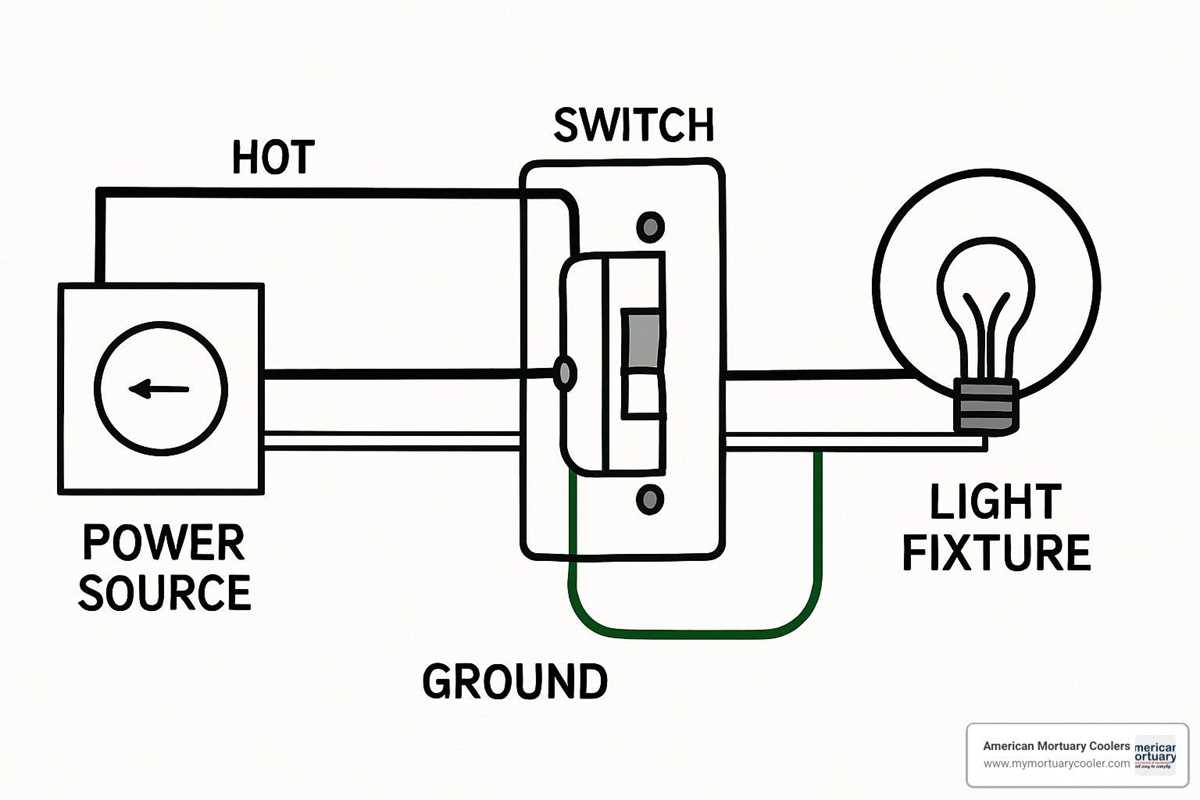

Locate the terminals by inspecting the device: the brass-colored screws connect to the feed conductor, the darker screw attaches to the outgoing conductor, and the green screw secures the grounding conductor.
Differentiate wire categories by color: black or red indicates a hot conductor, white represents a neutral line, and bare or green signals a protective ground.
Use a continuity tester to confirm each conductor’s path before insertion. This avoids connecting the line to the load terminal incorrectly, which can cause malfunction or hazards.
For multi-stranded versus solid wires, ensure terminals can accommodate the strand type. Loop strands clockwise around screws to guarantee a secure and stable connection.
Label each conductor if multiple feeds converge in a single box. Simple color-coded tags prevent accidental misplacement and simplify future modifications.
Check insulation integrity along the entire length of each conductor. Exposed copper should only exist at the terminal ends, reducing the chance of shorts or unintended contacts.
After terminal assignment, tighten all screws uniformly and gently tug each conductor to verify mechanical security. Loose connections can lead to arcing and fluctuating performance.
