To begin, ensure that the power supply voltage matches the requirements of your equipment. If you’re using a setup with a starting capacitor, connect it between the start winding and the power source to provide the initial push required for the motor to start. For the run winding, connect it directly to the power supply for continuous operation.
Next, verify that the connections are secure, as loose wiring can result in malfunction or safety hazards. Use appropriate gauges of wire that match the amperage rating of the components to prevent overheating. Double-check all terminal connections before powering on the system to avoid shorts or failures.
If the system isn’t functioning as expected, check for common issues such as incorrect connections, defective capacitors, or damaged wires. It’s important to trace the power flow through each part of the system to identify and fix any problems, ensuring reliable operation of the machinery.
Single Phase Motor Wiring Guide
Before starting any installation or maintenance, confirm the voltage specifications of the equipment. Ensure that your power supply is suitable to handle the load of the device. When working with a starting capacitor, connect it in series with the start winding to provide the necessary initial torque. The run winding should be directly connected to the power source for constant operation.
It’s important to choose the correct wire gauge for each connection. Ensure that the wire size is rated for the expected current load, preventing overheating or potential short circuits. Use high-quality insulated wire to avoid any exposed conductors, especially where the wiring may be subject to friction or environmental exposure.
In many configurations, a junction box is used to house the connections. Ensure that this box is securely mounted and that all terminals are tightened to prevent loose connections. Labeling the wires before making connections can save time and reduce confusion, especially in complex setups.
During installation, check the rotation direction of the machine. If it’s wrong, reverse the connections of either the start or run winding. Proper rotation ensures that the equipment operates efficiently and extends the life of the device.
If the equipment uses a capacitor, test it for continuity before installation. A faulty capacitor will prevent the motor from starting, leading to performance issues. Always replace damaged or degraded components before proceeding with installation to avoid further complications.
Troubleshooting Common Issues
If the equipment fails to operate correctly, check the voltage levels at both the start and run windings. A drop in voltage can indicate a wiring problem or a faulty power supply. Use a multimeter to test the connections and ensure there are no open circuits.
Safety Precautions
Always disconnect the power supply before working on electrical systems. Verify that the capacitor has discharged by shorting the terminals with an insulated tool. Wearing rubber gloves and using insulated tools will reduce the risk of electrical shock. Follow local electrical codes to ensure all installations meet safety standards.
How to Connect a Motor with a Capacitor
To properly connect a capacitor, begin by identifying the terminals on the equipment. The start winding should be connected to one terminal of the capacitor, while the other terminal of the capacitor should go to the power supply line. The run winding should be connected directly to the power line. Ensure that each connection is secure to prevent power loss or damage to components.
After connecting the windings and capacitor, double-check the configuration. If using a capacitor with a start winding, verify that it is connected in series with the start winding to aid in the initial rotation. Once the system is set up, test the setup by applying power and monitoring the performance. If the equipment does not start, check the capacitor for continuity and ensure proper rotation by reversing the connections if needed.

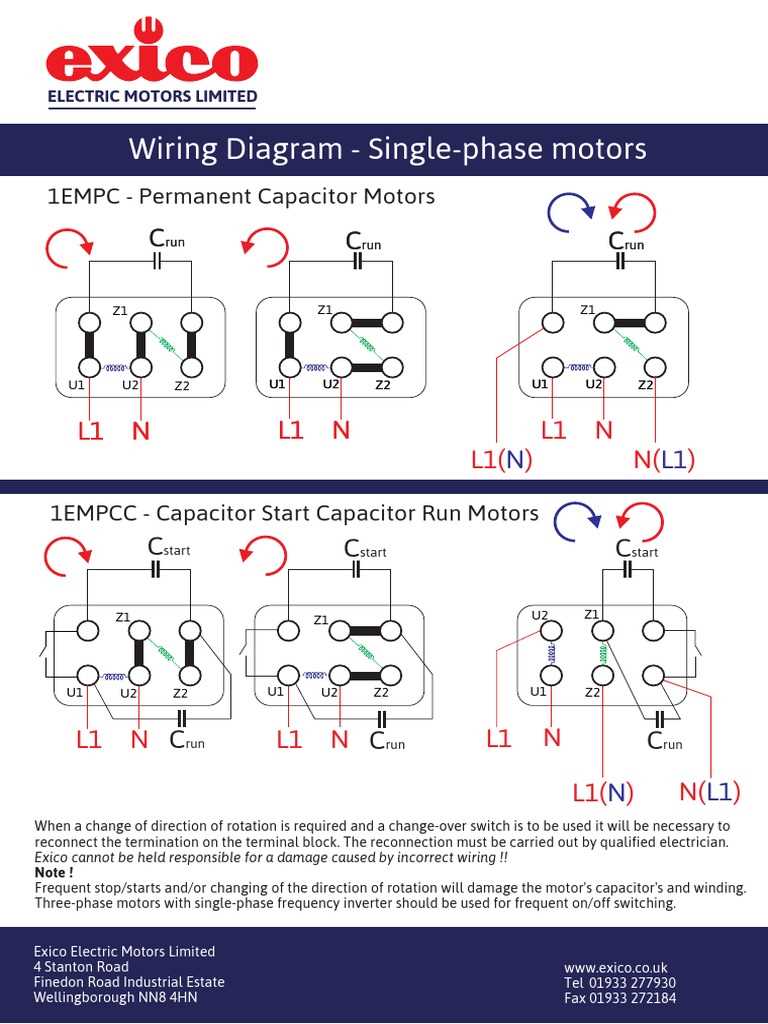

Common Capacitor Connections
- Start Capacitor: Connected in series with the start winding, it provides a surge of energy for initial motion.
- Run Capacitor: Connected in parallel with the run winding to improve performance during continuous operation.
Troubleshooting Tips
- If the system doesn’t start, confirm that the capacitor is not damaged and test for electrical continuity.
- If the rotation is incorrect, reverse the connections of the start or run winding to fix the direction.
