Connect the main power leads directly to the start and run terminals using properly rated wire for 120–240 volts. Ensure that capacitor connections match the specifications on the device label to prevent overheating.
Identify each terminal clearly before energizing the device. Use color-coded markers or labels to distinguish start, run, and ground points, reducing the risk of reversed connections or short circuits.
Secure the grounding conductor to a clean metal surface with a star washer. This reduces electrical noise and prevents voltage spikes from damaging internal windings.
Test the device at low voltage first to verify rotation direction and smooth operation. Observe for unusual vibrations or heat buildup before applying full power for extended operation.

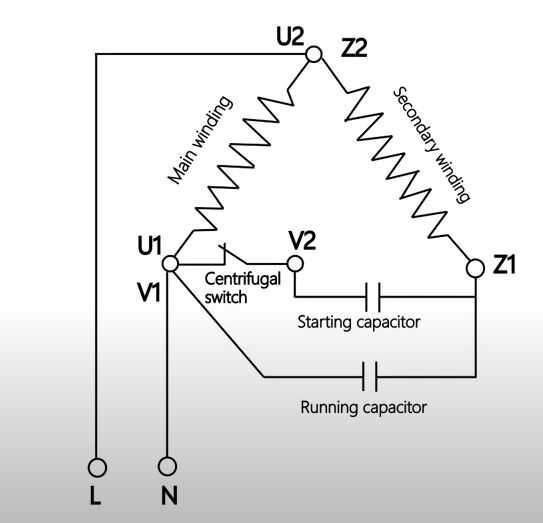

Single Phase Electric Motor Connections
Connect the main power line to the start and run terminals using 12–14 gauge insulated wire rated for the device voltage. Double-check capacitor polarity and secure all screws firmly to prevent loose contacts that can cause sparking or overheating.
Ground the device to a clean metal surface with a star washer and ring terminal. Test the device under low voltage first to confirm rotation direction and smooth operation before applying full load for extended periods.
Identifying Terminals and Capacitor Placement
Label each terminal before making connections to prevent reversed leads or short circuits. Use color-coded markers or tags to distinguish start, run, and common points, ensuring consistent identification during installation or maintenance.
Capacitor Location and Mounting
Mount the capacitor as close as possible to the start terminal to reduce line resistance and voltage drop. Secure it with insulated brackets or clips to prevent vibration damage and maintain stable capacitance under load.
- Check the rated voltage and microfarad (µF) value against the device specification.
- Connect positive and negative leads according to manufacturer markings.
- Keep leads short and direct to minimize inductive losses.
Inspect connections for tightness and corrosion after installation. Test the device briefly at low voltage to confirm proper start-up performance and ensure that the capacitor is functioning correctly before full operation.
