Always disconnect the battery before handling the main circuits to prevent short circuits or damage to the controller. Use a multimeter to verify voltage levels before touching any connectors.
Label each cable when removing or replacing the throttle and brake assemblies to maintain correct polarity and prevent misconnection. Red wires typically carry positive current, while black or blue wires serve as ground.
Check the controller port for any bent pins or corrosion before attaching the motor leads. Secure all plugs firmly to maintain stable power flow and avoid intermittent operation during rides.
Route the power lines along the frame away from moving parts or sharp edges. Fasten cables with zip ties or clips to reduce vibration stress and prevent insulation wear over time.
After completing the electrical links, perform a short test with the battery reconnected, verifying that the throttle responds correctly, brakes cut off power as intended, and the motor spins without unusual noise or resistance.
Electric Ride Connection Guide
Disconnect the battery before starting any work on the main power network. This prevents accidental short circuits and protects sensitive electronic modules from voltage spikes.
Identify the positive and negative leads of the battery pack. Red wires carry positive current, while black or blue wires serve as negative. Mark connectors with tape to avoid confusion during reassembly.
Check the controller terminals for corrosion or bent pins. Clean contacts with a small brush or electrical cleaner to ensure consistent current flow to the motor and throttle system.
Route high-current lines along the frame, keeping them away from moving parts like the wheel axles or folding joints. Use zip ties to secure cables without compressing insulation.

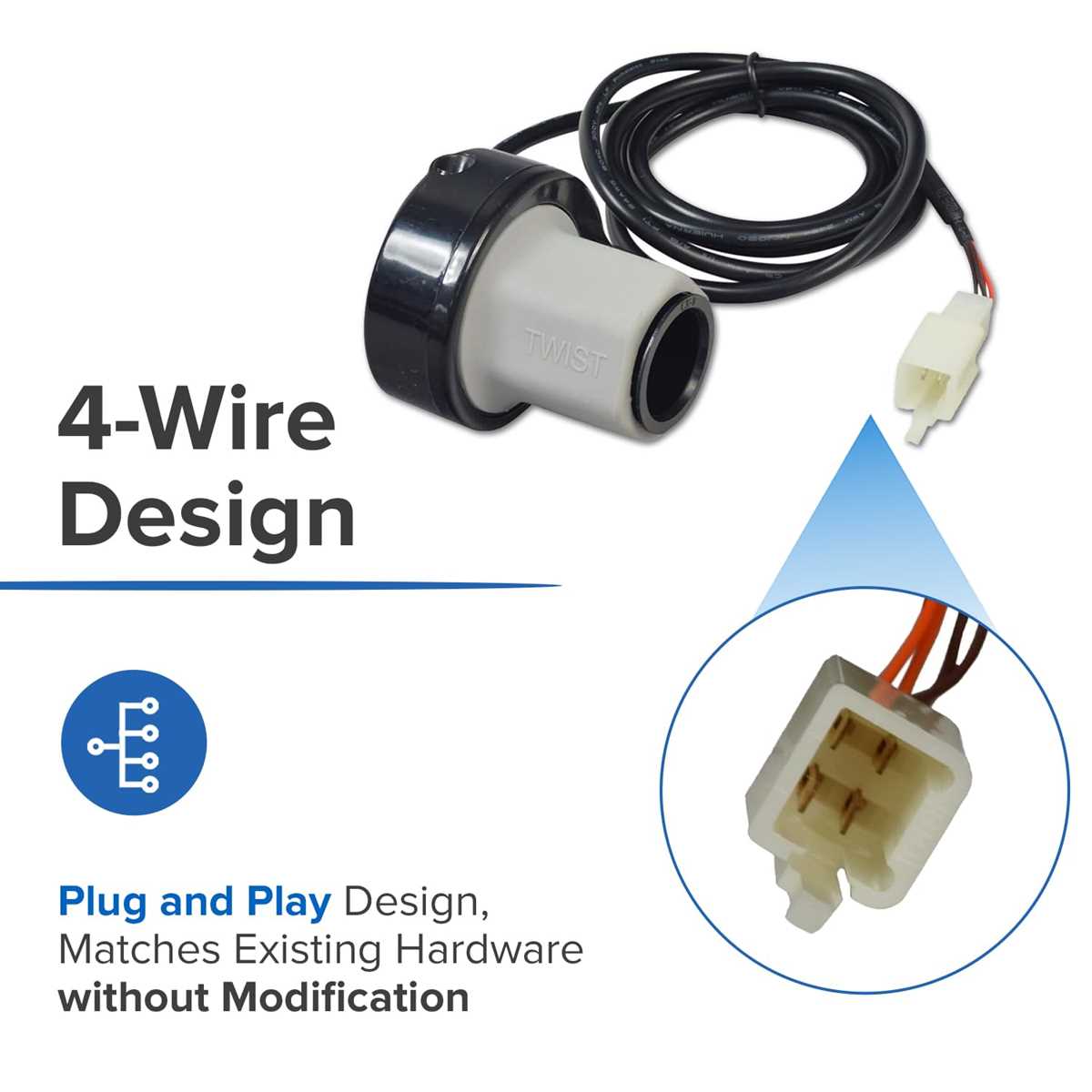

Connect the throttle cable to the controller port. Ensure the plug clicks into place and test the resistance with a multimeter to confirm the control sends correct signals to the motor.
Attach the brake cutoff switch to the positive supply line. When the brake lever is pressed, the connection should open immediately, cutting power to the drive mechanism without delay.
After all leads are connected, perform a brief functional test. Apply minimal power first to observe that the motor responds correctly and that there are no sparks or overheating points along the cables.
Inspect cable bundles visually and manually for any tight bends or exposed conductors. Adjust routing or add protective tubing where friction could damage insulation during operation.
Connecting the Battery and Main Power Lines
Always remove the battery from the frame before handling terminals to prevent accidental short circuits. Verify voltage with a multimeter and wear insulated gloves when touching live connectors.
Follow these steps to connect the main power lines safely:
- Inspect battery terminals for corrosion or debris and clean with a wire brush.
- Check that positive and negative cables are correctly marked.
- Align the connectors so pins match the slots without forcing them.
- Tighten screws or clamps securely but avoid over-torquing.
Route high-current leads along rigid sections of the frame and away from moving components. Use plastic clips or zip ties to prevent cables from rubbing against metal edges or suspension parts.
Test continuity between battery terminals and controller input before applying full power. This ensures no hidden breaks or loose connections can cause voltage drops or overheating.
When reattaching the battery, connect the negative lead last to reduce the risk of sparks. After connection, observe the system while lightly pressing the throttle to confirm stable current flow to the motor.
Perform a final inspection of all connections:
- Check insulation for any cracks or wear.
- Ensure connectors are fully seated and cannot pull loose.
- Verify zip ties are snug but not cutting into cables.
- Confirm the battery is firmly mounted in its tray to prevent movement during operation.
