For accurate temperature monitoring and control, the right connection method for a temperature probe is critical. The three-wire setup offers enhanced measurement reliability by compensating for lead resistance, which is often a factor in longer sensor connections. When using this configuration, it’s important to carefully balance the wiring to ensure that the temperature readings reflect only the resistance changes in the sensor itself, rather than distortions from the wires.
To achieve precise data from the sensor, it’s vital to pair it with a suitable amplifier or signal conditioning module. These modules adjust the sensor’s resistance readings into a usable format, which can then be interpreted by a microcontroller or other measurement system. A well-calibrated amplifier ensures that minute changes in resistance due to temperature shifts are captured without loss of accuracy.
When working with these temperature probes, attention must be paid to the power supply and the input impedance of the microcontroller or reading device. The signal from the probe is typically small, so using a high-input impedance system helps avoid loading the sensor. This will ensure that the data is collected with minimal interference from the surrounding components.

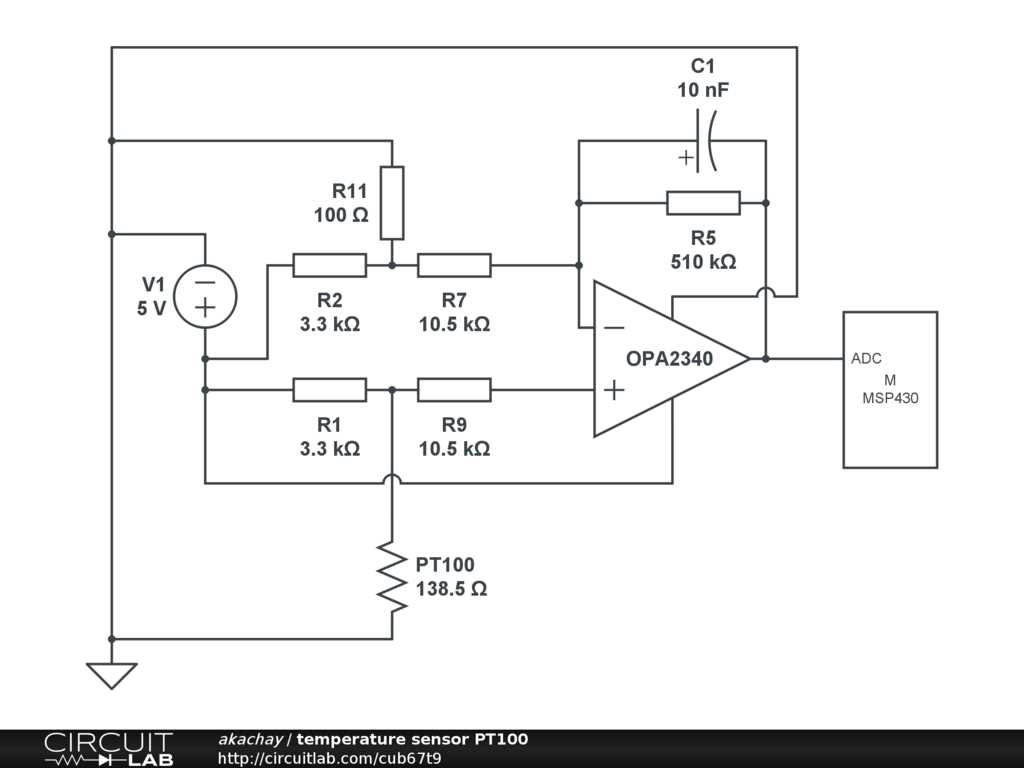

Integrating the Temperature Sensor with Amplification
To achieve accurate temperature readings, a proper amplification method is key. When connecting a temperature probe, it’s crucial to incorporate an appropriate signal amplifier to convert the resistance change into a readable output. This allows microcontrollers or other measurement devices to interpret small variations in resistance effectively. The use of a high-precision amplifier ensures that no data is lost, even with long wires or additional components in the setup.

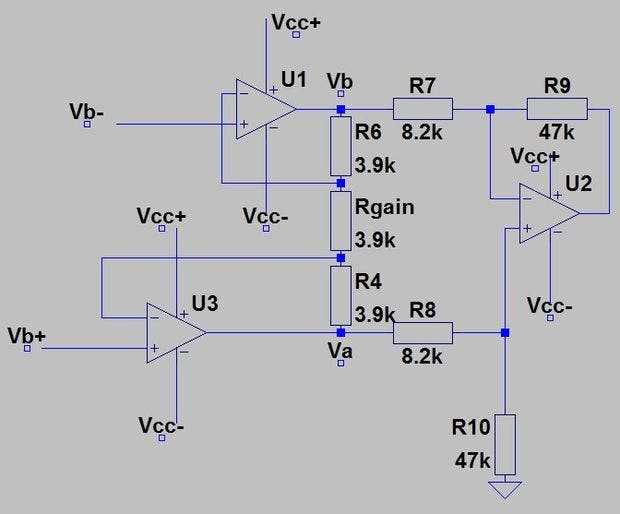

In a typical setup, use a low-noise operational amplifier to condition the signal coming from the sensor. This type of amplifier will provide the necessary gain while maintaining signal integrity. Additionally, pay attention to the power supply voltage and ensure that the gain is set properly to avoid distortion or saturation of the signal. Failure to adjust these parameters can lead to inaccurate readings or failure to detect temperature fluctuations correctly.
For long-term reliability, double-check all wiring connections to minimize the possibility of resistance errors introduced by poor contacts. Also, it’s recommended to use shielded cables, particularly when operating in environments with significant electrical noise. This ensures that the signal from the temperature probe reaches the measurement system without interference, providing accurate results over time.

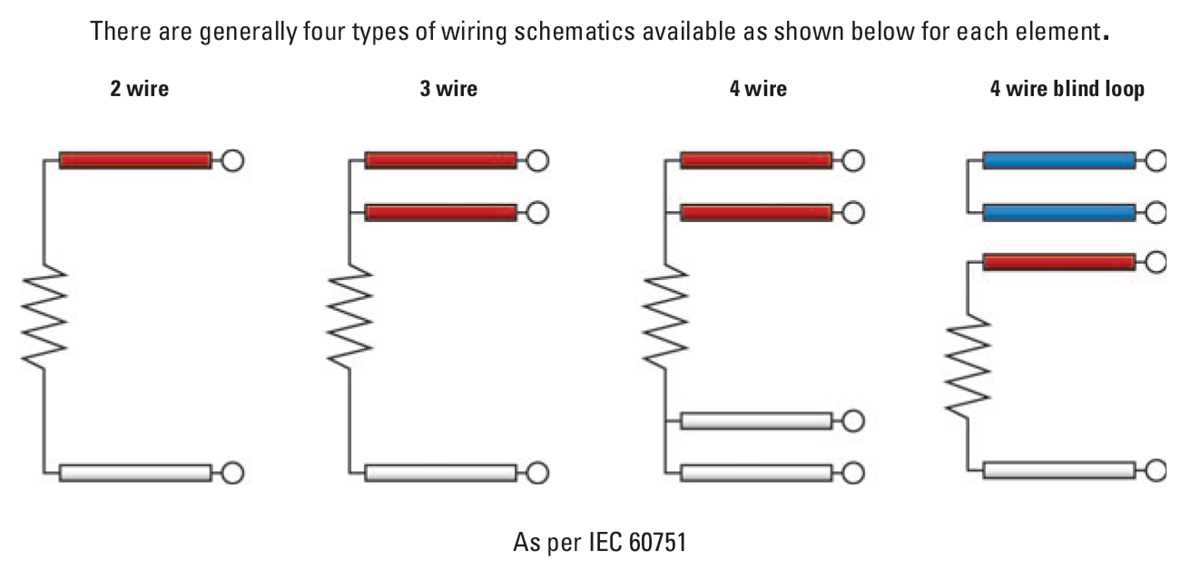

Wiring Setup for a Temperature Probe with 3-Wire Configuration
To minimize errors caused by the resistance of connecting leads, a three-wire connection is widely used with temperature sensors. This configuration allows for compensating the resistance of the wires by using an additional lead to measure the voltage drop across the sensor. When setting up this wiring method, ensure that one wire is dedicated to sensing the temperature, while the other two are used for compensation, ensuring accurate readings regardless of lead length.
Choosing the Right Wires for the Setup
For optimal performance, select wires with low resistance, especially when the distance between the sensor and the measurement system is long. Using thicker wires or those with low-resistance materials like copper will reduce the impact of wire resistance on the measurements. Additionally, the wires used for the compensation should be as identical as possible to maintain consistency in the resistance readings.
The three-wire connection typically includes one reference lead, one signal lead, and one compensation lead. The reference lead should be connected to the same point on the sensor as the signal lead, while the compensation lead is typically routed back to the measurement device, providing the reference for lead resistance correction. Keep the wires as short as possible to avoid unwanted resistance effects from the wire length.
Connection to the Measurement System
Once the sensor is connected, the next step is to link it to the measurement system. This may involve an amplifier to condition the signal, or a microcontroller that reads the temperature via an analog-to-digital converter. Ensure that the system input impedance is high enough to avoid loading the sensor, which could alter the resistance readings and lead to inaccurate temperature data.
Finally, verify the overall stability of the setup by checking for any fluctuations in the resistance readings when the sensor is exposed to a known temperature. This test can help identify issues with wiring or incorrect connections. Regular calibration against a known reference temperature will ensure long-term accuracy and reliability in temperature measurements.
