Start by ensuring that you have all the necessary components for the setup: two pickups, a potentiometer for volume control, tone control, and an output jack. Carefully select the right values for each part to ensure smooth signal transmission and optimal performance.
The pickups need to be connected properly to the volume control. This can be done by soldering the pickup leads to the input terminal of the potentiometer, ensuring a stable and clean connection. The ground of the pickup should be linked to the common ground path to avoid any hum or interference.
Once the volume control is wired, the tone control should be added to shape the overall sound. A capacitor is often placed between the tone potentiometer and the ground to allow for the adjustment of higher frequencies. Finally, the output jack should be connected to complete the signal path to your amplifier.

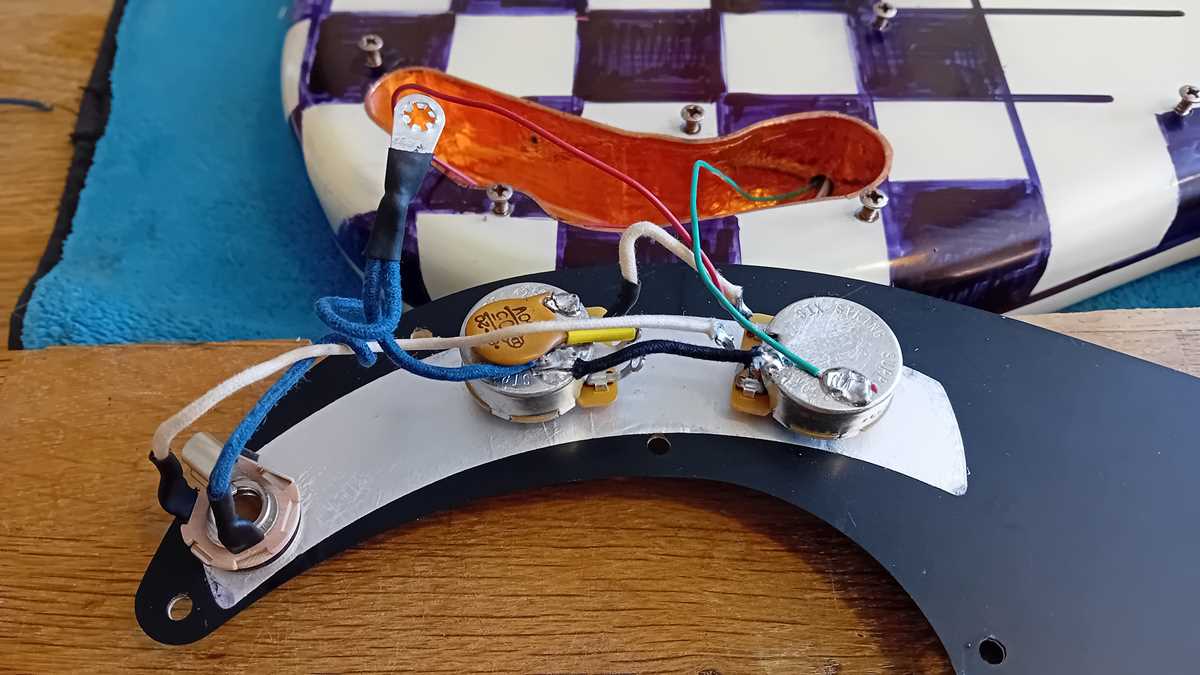

Precision Bass Wiring Diagram
Start by connecting the pickups to the volume control. The pickup wires should be attached to the input terminal of the potentiometer. It’s crucial to check the orientation of the leads to ensure the signal is sent in the correct direction.
The volume control itself must be connected to the ground. Attach the ground wire of the potentiometer to the common ground of the system, usually shared with other components like the bridge and the output jack. This prevents unwanted noise or hum.
Next, wire the tone control. Place a capacitor between the tone pot and ground to filter high frequencies. Adjusting this component will affect the treble, allowing for a broader range of sound manipulation. This is particularly useful for fine-tuning the tonal quality of your setup.
Ensure that the output jack is connected to the volume control, completing the signal path. The tip of the jack should be soldered to the output terminal of the potentiometer, while the sleeve connects to the ground. This configuration will send the signal to the amplifier when the jack is plugged in.
Check the pickup configuration to determine whether you’re using a single or dual setup. A single pickup requires simpler connections, but if you are using two, you will need to wire them in parallel or series, depending on your preference for output level and tone.
When working with multiple pickups, be mindful of how the connections interact. They should be wired in such a way that both pickups function together without causing short circuits or signal interference. Always refer to the manufacturer’s specifications for optimal wiring methods.
Once everything is connected, double-check each solder joint and ensure that the wires are secure. A loose connection can lead to inconsistent sound or complete failure of the system. After confirming the connections, test the setup by plugging it into an amp and adjusting the controls to ensure the system works as expected.
Wiring the Pickups and Volume Control
To begin, connect the leads of each pickup to the input terminal of the volume potentiometer. The wire from the pickup should be soldered to the center terminal of the potentiometer, ensuring a solid connection. This will allow the signal from the pickup to pass through the volume control and be adjusted accordingly.
Next, the ground wire from each pickup must be connected to the common ground. This ensures that the electrical current returns to the system and prevents noise or hum from interfering with the signal. The ground wire should be soldered to the back of the volume pot, or another suitable grounding point on the system.
For multiple pickups, it’s necessary to connect the hot leads of each pickup to their respective terminals on the potentiometer. If you’re using a setup with a single pickup, only one lead needs to be connected. Be sure that the leads are properly insulated to avoid short circuits between the signal and the ground.
- Pickup wire: Connected to the input terminal of the volume pot.
- Ground wire: Soldered to the common ground of the system.
- Hot lead for multiple pickups: Each pickup should be connected to its own input terminal on the volume control.
Ensure that the potentiometer is wired with the proper values, usually 250kΩ or 500kΩ depending on your setup. Using a higher resistance will result in a brighter tone, while a lower resistance will produce a warmer sound. Choose the potentiometer that best suits the tonal characteristics you’re looking for.
Once the pickups and volume control are connected, test the signal flow by lightly tapping the pickups. This should produce a sound through the amplifier. If no sound is heard, check all connections for loose solder joints or disconnected wires.
After confirming the pickups and volume control are functioning properly, secure all components in place to prevent any movement that could cause wire stress or signal loss. Once everything is in place, move on to wiring the tone control and output jack for full functionality.
